Description

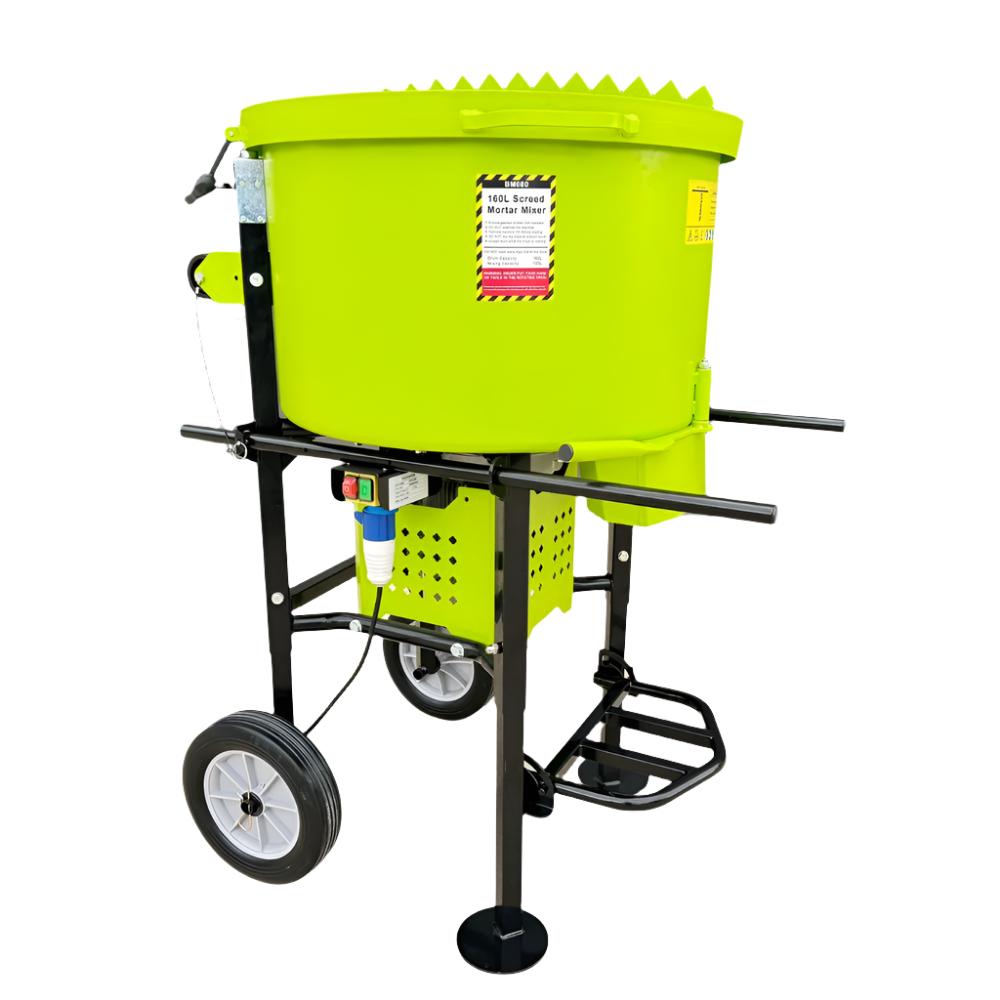

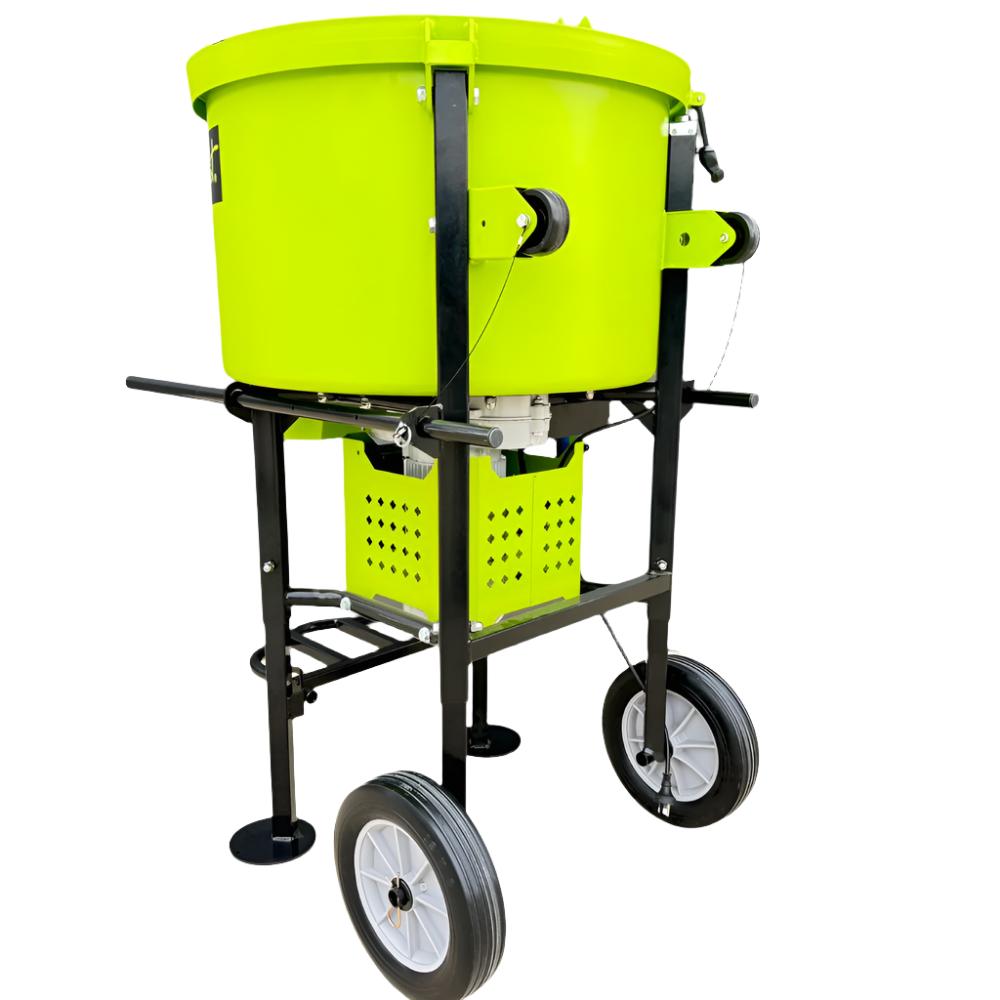

The Forestwest BM680 160L Commercial Grade Forced Action Mortar Mixer is the highest-capacity model in the Forestwest forced action mixer range, designed for professional contractors and commercial sites where batch productivity and reduced maintenance are priorities.
The 160L mixing chamber provides a 120L batch output, allowing larger quantities of mortar, screed and cement-based materials to be prepared with fewer mixing cycles. A 2500W high-torque input motor drives the three-arm mixing system at approximately 30rpm.

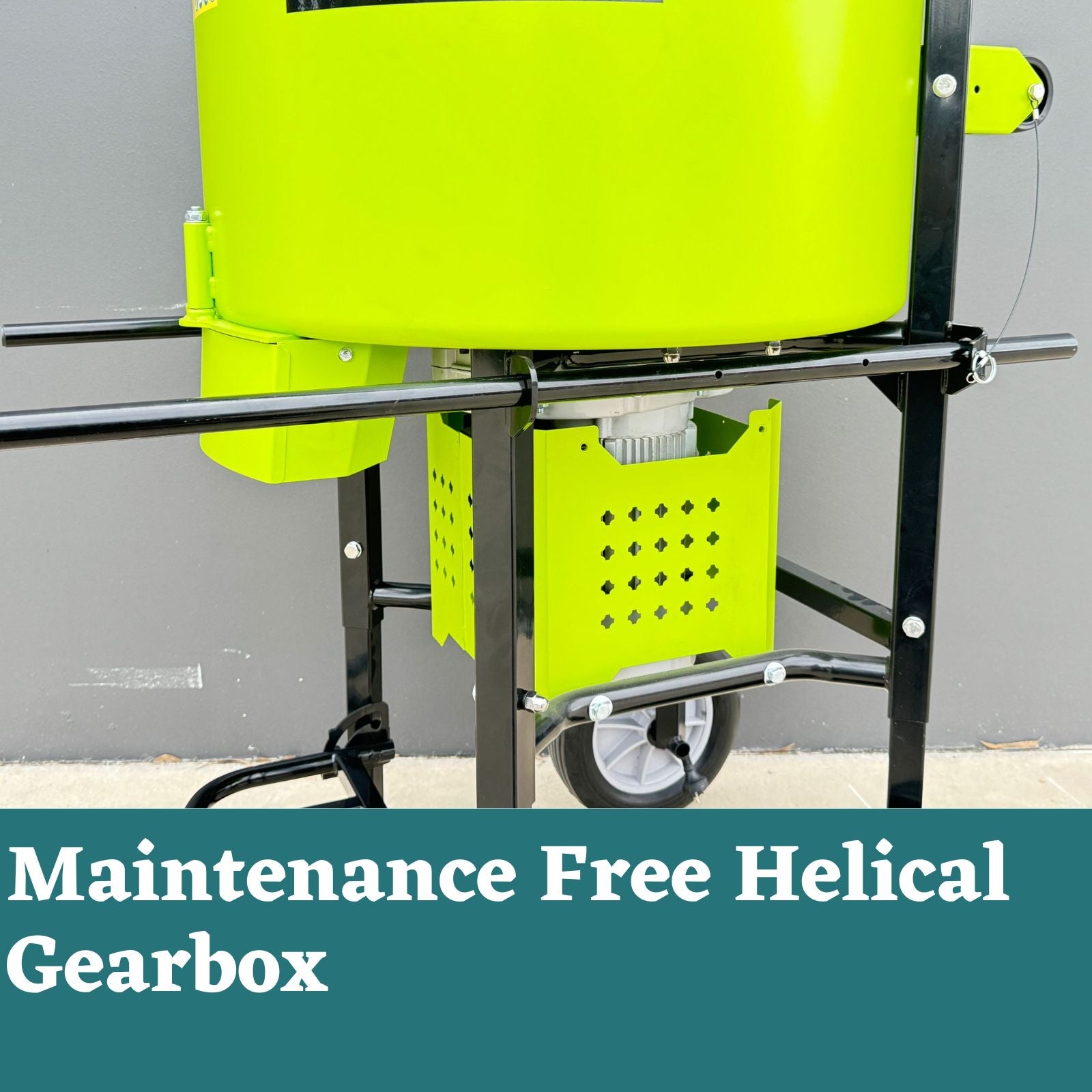

A key feature of the BM680 is its maintenance-free Helical Type-R reducer gearbox. Permanently lubricated bearings eliminate the need for routine gearbox grease replacement under normal use, helping professional users reduce maintenance time and keep the mixer available for productive work.
Assembly:
Demo:
Key Features & Benefits
- Commercial Grade Construction: Designed for contractors, trade professionals and demanding commercial applications.
- Maintenance-Free Gearbox: Higher-grade Helical Type-R reducer requires no routine gearbox grease replacement under normal use.
- 160L Drum Capacity: Largest commercial forced action mixer in the Forestwest range.
- 120L Batch Output: High usable batch volume for increased job-site productivity.
- 2500W High-Torque Input: Provides strong mixing performance for larger batches and demanding materials.

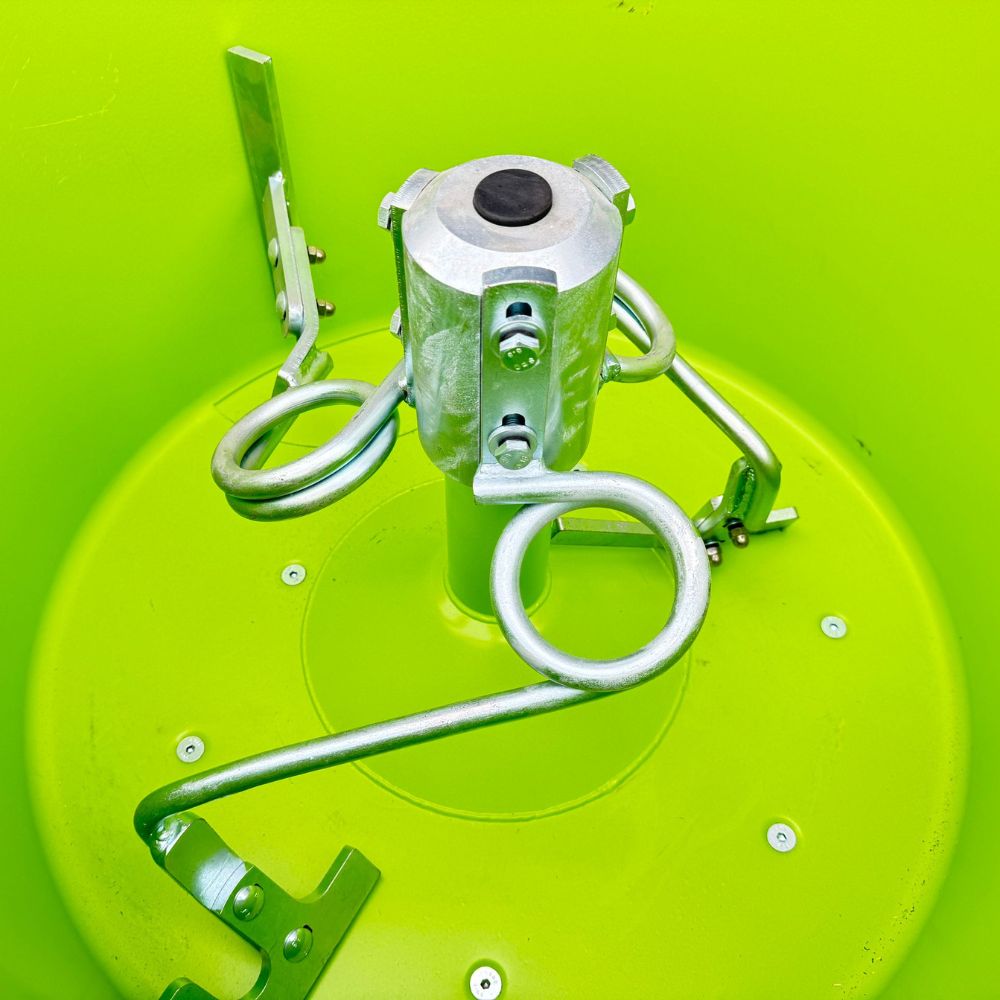

- Three-Arm Forced Action System: Actively mixes material throughout the chamber for consistent results.
- 30rpm Paddle Speed: Controlled mixing action for mortar, screed and similar materials.
- Removable Mixing Arm: Mixing assembly can be lifted out for easier cleaning and inspection.

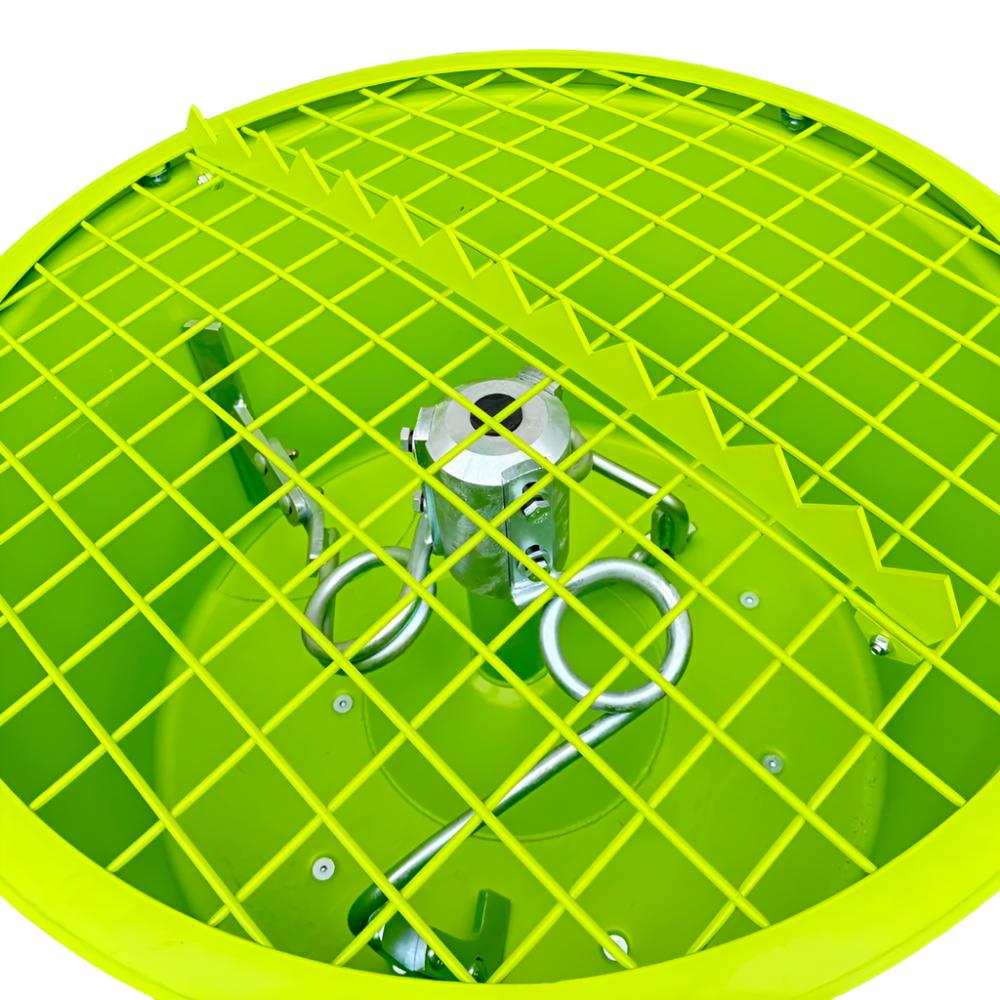

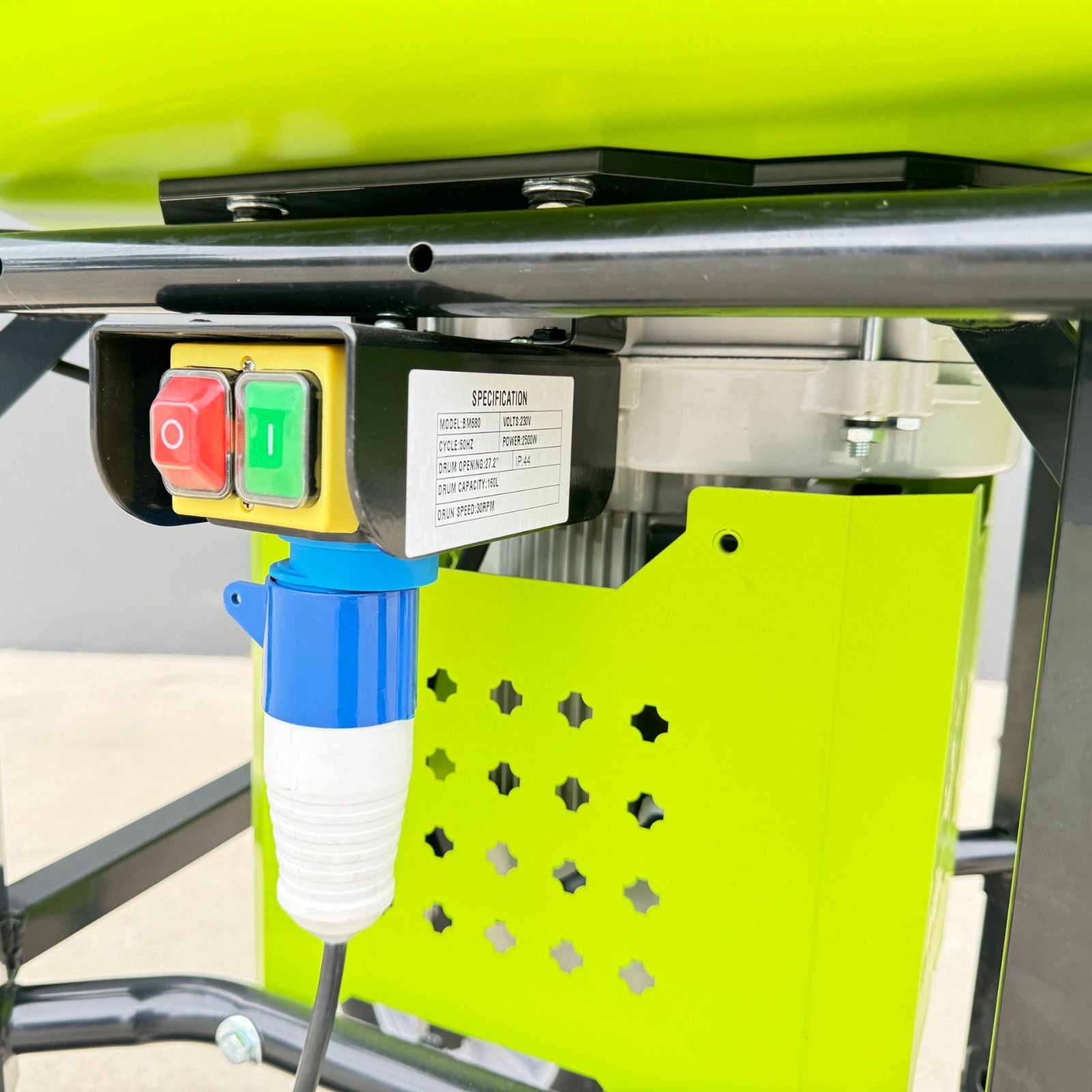

- Automatic Safety Cut-Off: Stops the mixer when the protective hopper grate is opened.
- Higher Batch Productivity: 120L batch output reduces the number of mixing cycles required on larger jobs.
Prefer a more compact commercial mixer? The BM678 120L Commercial Grade Forced Action Mixer provides a 90L batch output with the same maintenance-free gearbox technology.
Looking for a lower-priced four-blade alternative? Consider the BM679C 120L Commercial Pan Mortar Mixer.
You can also compare the full Forestwest Mortar & Screed Mixer range.
Specifications
| Model | BM680 |
| Drum Capacity | 160L |
| Batch Output | 120L |
| Input Power | 2500W |
| Output Power | 2000W |
| Paddle Speed | 30rpm |
| Mixing System | Three-Arm Forced Action Paddle |
| Gearbox | Maintenance-Free Helical Type-R Reducer |
| Gearbox Maintenance | No routine grease replacement required under normal use |
| Mixer Hand Drive Torque | 700Nm |

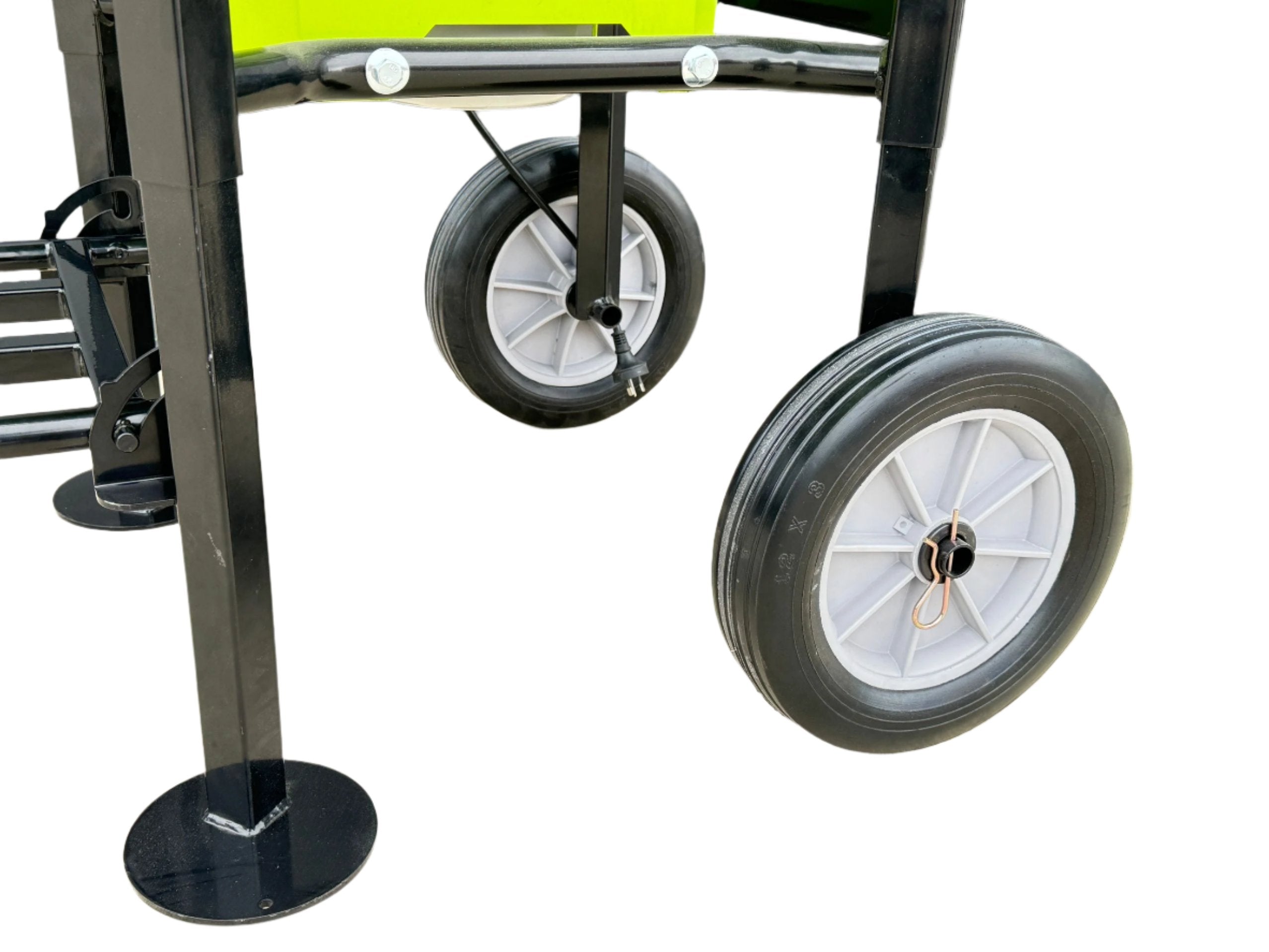

| Wheel Size | 12" |
| Overall Size | 760 × 760 × 1390mm |
| Packing Size | 830 × 770 × 1000mm |
| Net / Gross Weight | 133 / 157kg |
Frequently Asked Questions
1. Is the BM680 suitable for commercial use?
Yes. It is the highest-capacity commercial grade forced action mixer in the Forestwest range and is designed for regular professional use.
2. Is the gearbox maintenance-free?
Yes. The Helical Type-R reducer uses permanently lubricated bearings and does not require routine gearbox grease replacement under normal use.
3. What is the actual batch output?
The BM680 has a 160L mixing chamber with a specified usable batch output of 120L.
4. What materials can it mix?
It is suitable for mortar, screed, terrazzo, cement-based compounds and other compatible construction materials.
5. Why choose the BM680 for commercial work?
Its 120L batch output allows larger quantities to be mixed with fewer cycles, while the maintenance-free gearbox helps reduce routine servicing requirements.
6. BM678 or BM680?
The BM678 provides a 90L batch output and is more compact. The BM680 provides a 120L batch output for higher-volume commercial work.
7. BM679C or BM680?
The BM679C is a lower-priced 120L four-blade commercial mixer. The BM680 provides larger batch output and a maintenance-free Helical Type-R gearbox for higher-volume professional use.
8. What warranty does it include?
The BM680 comes with a 12-month Forestwest warranty.
