Description

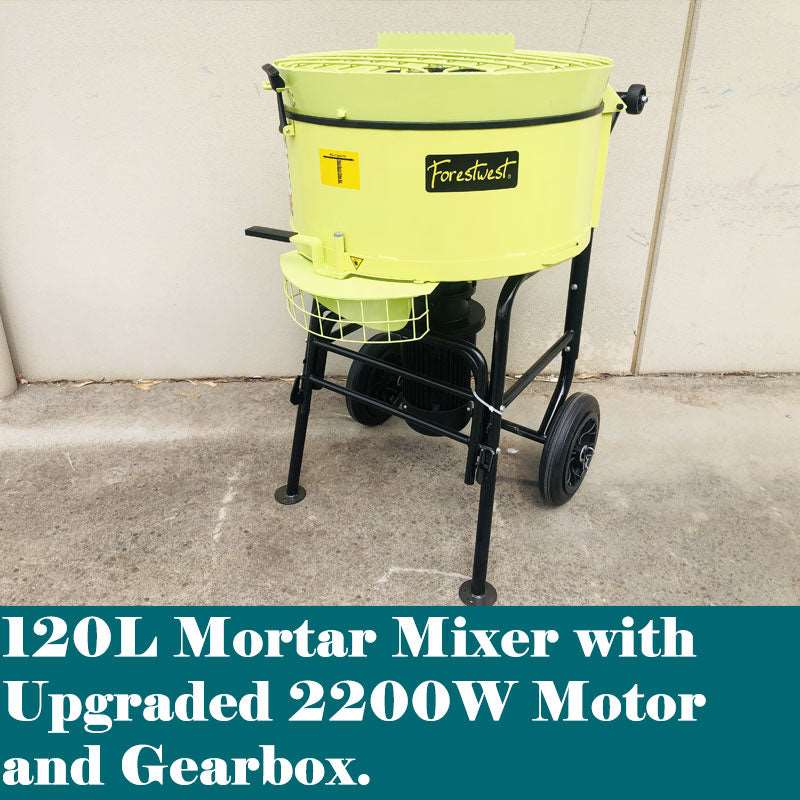

The Forestwest BM679C 120L Commercial Grade Pan Mortar Mixer is designed for professional contractors and trades requiring powerful, consistent mixing of mortar, screed, cement-based compounds, render and other construction materials.
Powered by a 2200W high-torque electric motor, the BM679C uses four mixing blades positioned at different heights to actively move material throughout the 120L pan. This forced mixing action helps produce a more consistent blend than conventional gravity-fed drum mixers, particularly when working with dry or semi-dry materials.
The BM679C is built around a heavy-duty 3mm steel mixing pan and a robust cycloidal reducer, making it suitable for regular commercial use. A protective hopper grate, integrated bag splitter and automatic safety cut-off provide practical features for busy construction sites.
Demo:
Key Features & Benefits
- Commercial Grade Construction: Heavy-duty steel design developed for regular professional and trade use.
- 120L Pan Capacity 80L Mix Capacity: Suitable for larger mortar, screed and construction mixing jobs.

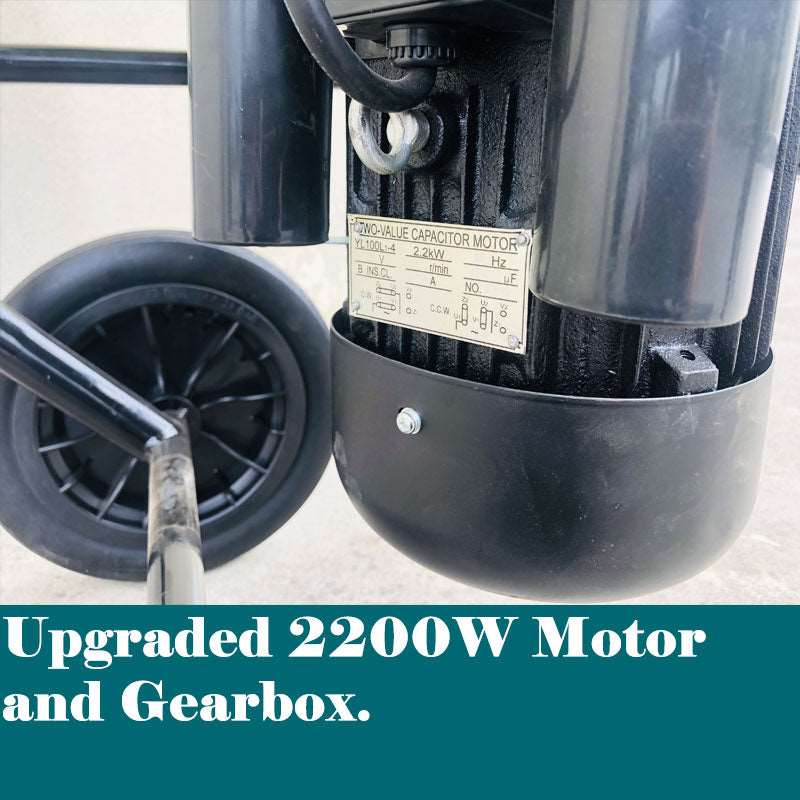

- 2200W High-Torque Motor: Provides strong mixing performance for demanding materials.

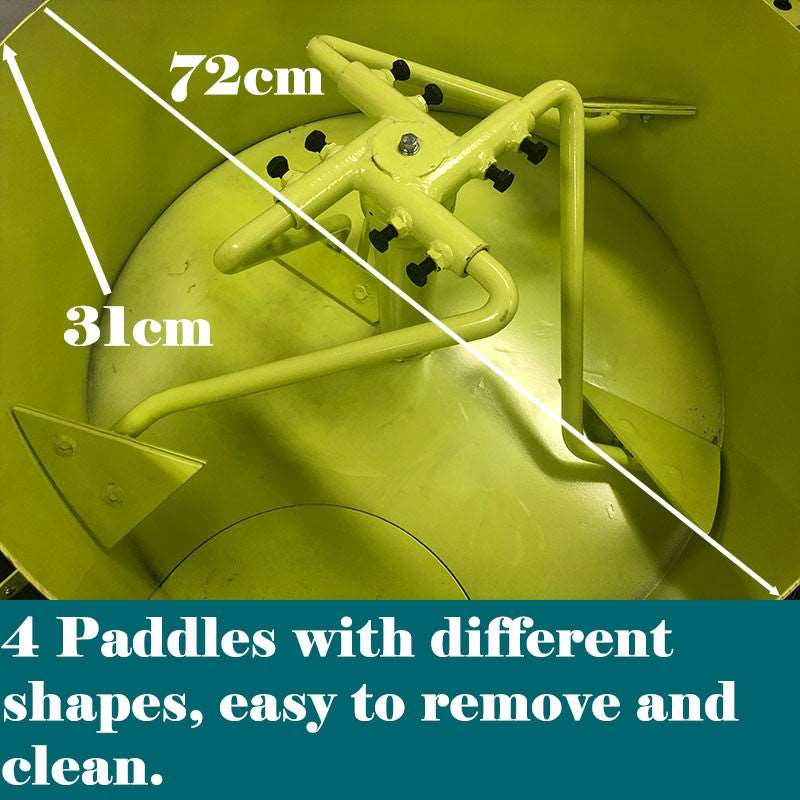

- Four Mixing Blades: Multi-level blade positions promote thorough material movement throughout the pan.
- 3mm Steel Pan: Heavy-duty mixing chamber designed for demanding job-site conditions.
- Cycloidal Reducer: Provides strong torque transfer and resistance to shock loading.

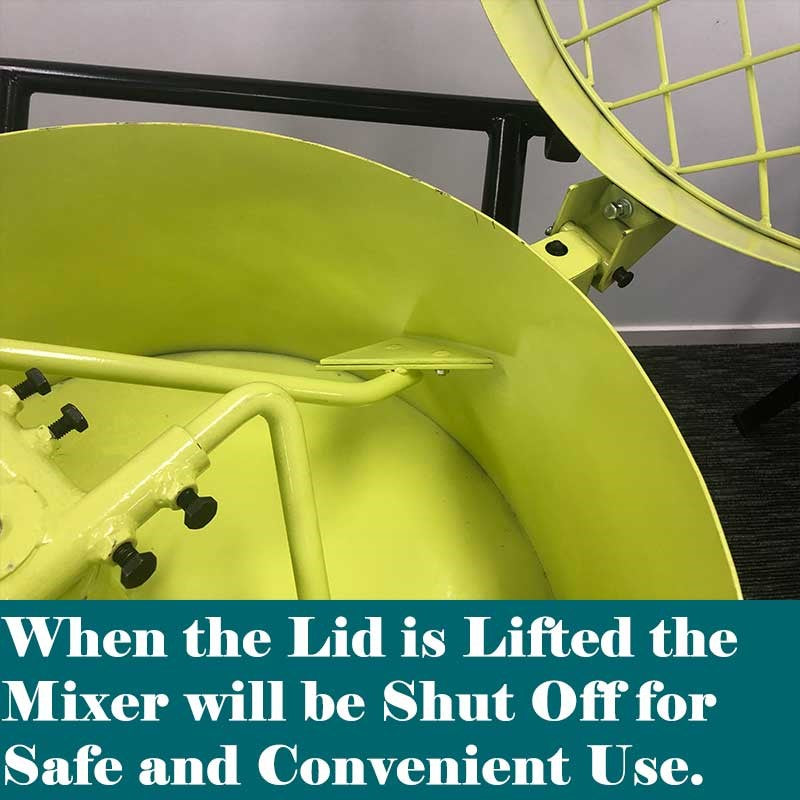

- Automatic Safety Cut-Off: Stops operation when the protective hopper grate is opened.

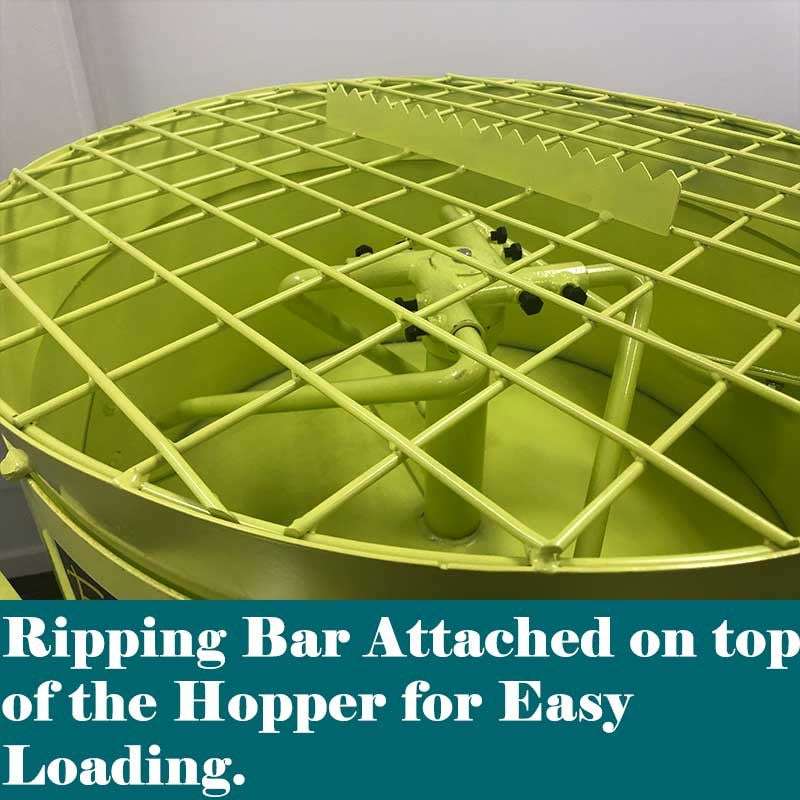

- Integrated Bag Splitter: Helps speed up loading of bagged mortar, screed and cement products.

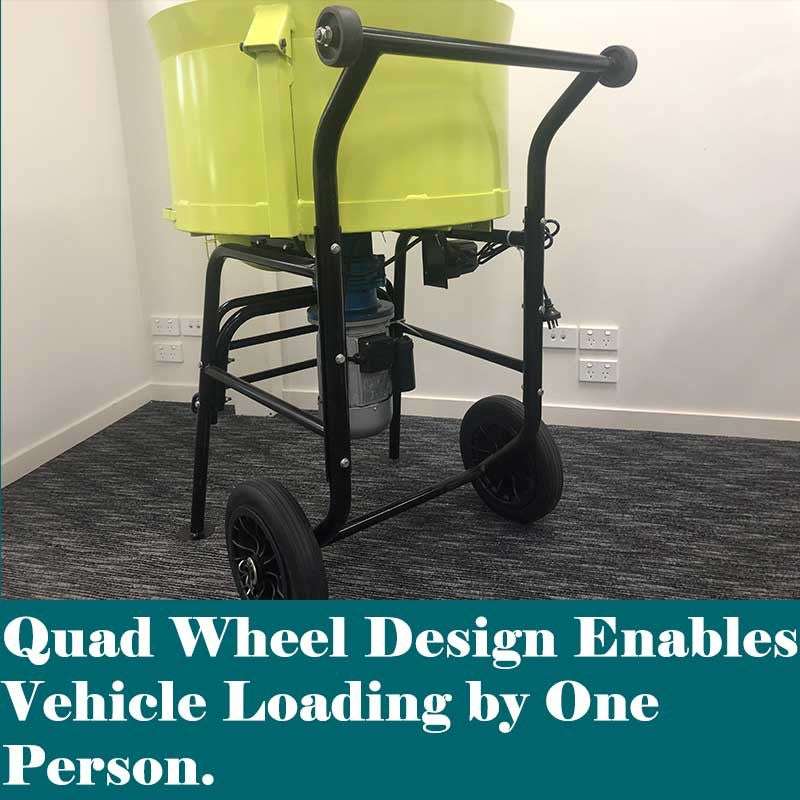

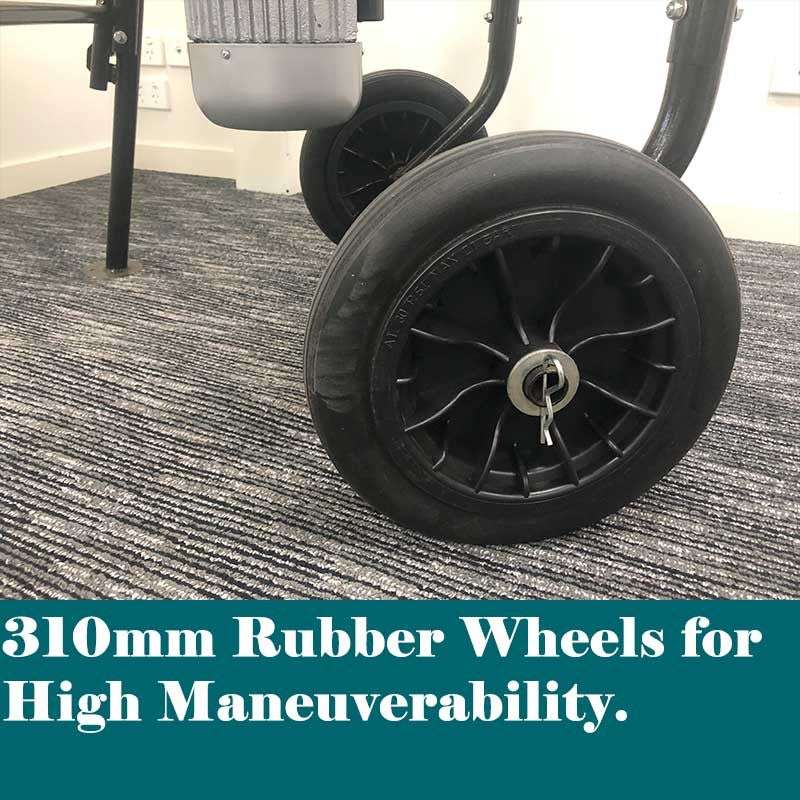

- Job-Site Mobility: Four-wheel layout assists with manoeuvring and vehicle loading.
Prefer a maintenance-free gearbox? Consider the BM678 120L Commercial Forced Action Mixer, which uses a higher-grade Helical Type-R maintenance-free gearbox.
For larger commercial batches, see the BM680 160L Commercial Grade Mortar Mixer.
You can also compare the full Forestwest Mortar & Screed Mixer range.
Specifications
| Model | BM679C |
| Drum Capacity | 120L |
| Mixing Capacity | 80L |
| Motor Power | 2200W |
| Mixing Blades | 4 |
| Drum Diameter | 718mm |
| Drum Height | 310mm |
| Drum Thickness | 3mm |
| Gearbox | Cycloidal Reducer |
| Overall Size | 900 × 750 × 1250mm |
| Packing Size | 930 × 760 × 1270mm |
| Net / Gross Weight | 136 / 146kg |
Frequently Asked Questions
1. Is the BM679C suitable for commercial use?
Yes. It is a commercial grade mixer with a heavy-duty steel pan, 2200W motor and four-blade mixing system designed for regular trade use.
2. What materials can the BM679C mix?
It is suitable for mortar, screed, render, cement-based compounds and other compatible construction materials.
3. Why use a pan mixer instead of a conventional drum mixer?
The rotating blades actively move material throughout the stationary pan, making the design particularly suitable for mortar, screed and dry or semi-dry mixes.
4. How many mixing blades does it use?
The BM679C uses four mixing blades positioned at different heights to promote consistent mixing throughout the load.
5. Is the BM679C gearbox maintenance-free?
No. The BM679C uses a traditional cycloidal reducer that requires periodic gearbox maintenance. For a maintenance-free gearbox, consider the BM678 or BM680.
6. BM679C or BM678?
The BM679C uses a four-blade cycloidal-drive system. The BM678 provides a 90L batch output and a maintenance-free Helical Type-R gearbox.
7. What warranty does it include?
The BM679C comes with a 12-month Forestwest warranty.
8. Can I inspect it before buying?
Yes. Please contact our Melbourne or Perth team before visiting to confirm availability.
