Description

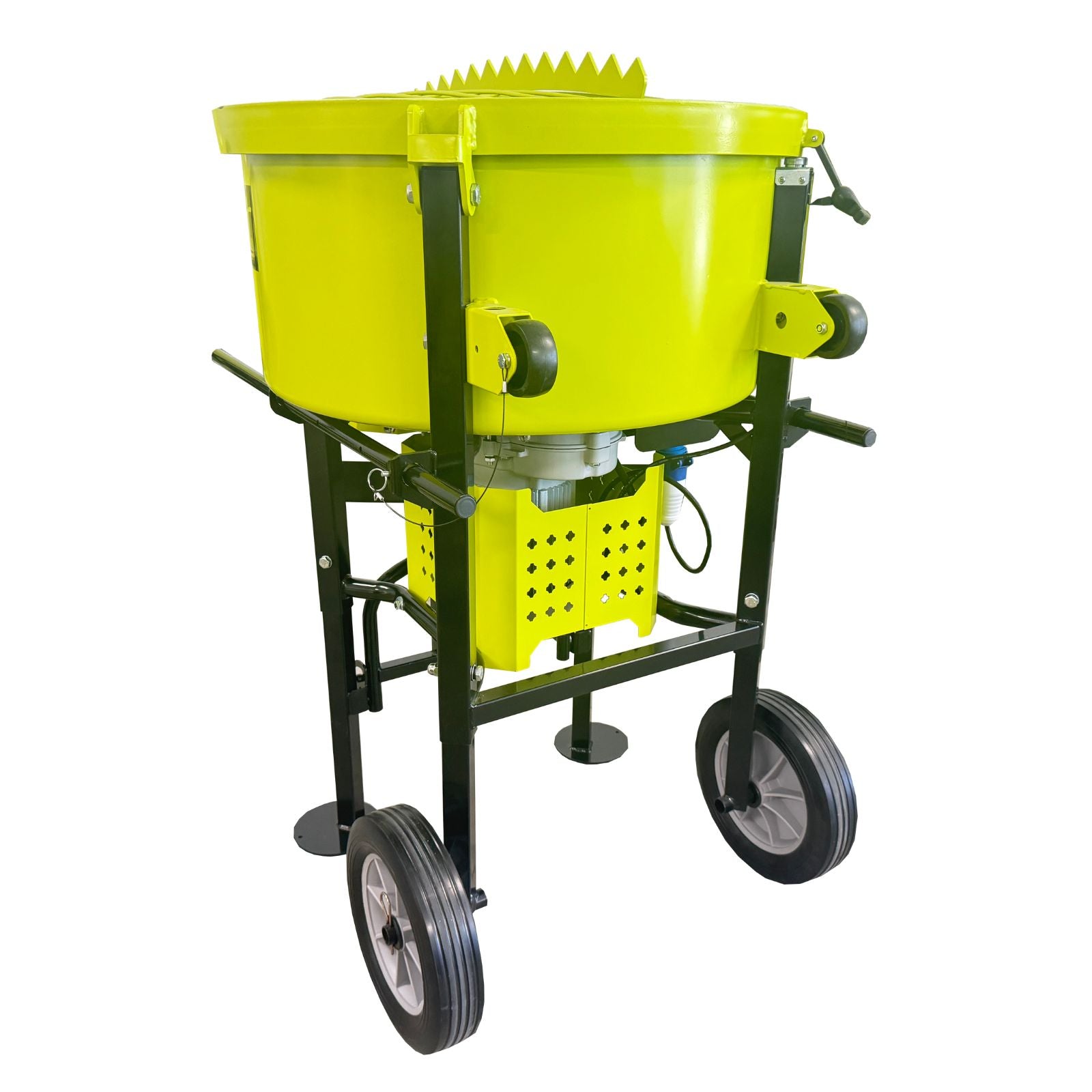

The Forestwest BM678 120L Commercial Grade Forced Action Mortar Mixer is designed for professional contractors who require reliable mixing performance with reduced routine gearbox maintenance.
The 120L mixing chamber provides a specified 90L batch output, while a 2000W high-torque electric motor drives the three-arm paddle system at approximately 30rpm. Its forced action mixing design is suitable for mortar, screed, terrazzo, cement-based products and other ready-mixed construction materials.
A major advantage of the BM678 is its maintenance-free Helical Type-R reducer gearbox. The drive system uses permanently lubricated bearings and requires no routine gearbox grease replacement under normal use, helping reduce ongoing maintenance and downtime for commercial operators.
Assembly:
Key Features & Benefits
- Commercial Grade Design: Heavy-duty construction suitable for contractors and regular professional use.
- Maintenance-Free Gearbox: Higher-grade Helical Type-R reducer requires no routine gearbox grease replacement under normal use.
- 120L Drum Capacity: Commercial-size mixing chamber for mortar and screed applications.
- 90L Batch Output: Clearly specified usable batch capacity.
- 2000W High-Torque Motor: Provides strong performance for demanding construction materials.
- Three-Arm Mixing Paddle: Provides thorough and repeatable forced action mixing.
- 30rpm Paddle Speed: Controlled mixing action for mortar, screed and similar materials.
- Removable Mixing Arm: Mixing assembly can be lifted out for easier cleaning and inspection.
- Automatic Safety Cut-Off: Stops operation when the protective hopper grate is opened.
- Compact Commercial Design: Provides professional mixing performance in a more compact package than the BM680.
Need higher batch productivity? Consider the BM680 160L Commercial Grade Forced Action Mixer, which provides a 120L batch output with the same maintenance-free gearbox design.
Looking for a lower-priced four-blade alternative? See the BM679C 120L Commercial Pan Mortar Mixer.
You can also compare the full Forestwest Mortar & Screed Mixer range.
Specifications
| Model | BM678 |
| Drum Capacity | 120L |
| Batch Output | 90L |
| Input Power | 2000W |
| Paddle Speed | 30rpm |
| Mixing System | Three-Arm Forced Action Paddle |
| Gearbox | Maintenance-Free Helical Type-R Reducer |
| Gearbox Maintenance | No routine grease replacement required under normal use |
| Mixer Hand Drive Torque | 700Nm |
| Wheel Size | 12" |
| Overall Size | 760 × 760 × 1190mm |
| Packing Size | 840 × 770 × 850mm |
| Net / Gross Weight | 124 / 134kg |
Frequently Asked Questions
1. What is a forced action mortar mixer?
A forced action mixer uses powered paddles to actively move material through the stationary mixing chamber rather than relying mainly on gravity.
2. Is the BM678 suitable for commercial use?
Yes. It is designed for professional contractors and regular commercial mortar, screed and construction mixing applications.
3. Is the gearbox really maintenance-free?
Yes. The Helical Type-R reducer uses permanently lubricated bearings and does not require routine gearbox grease replacement under normal use.
4. What is the actual batch output?
The BM678 has a 120L drum and a specified usable batch output of 90L.
5. What materials can it mix?
It is suitable for mortar, screed, terrazzo, cement-based compounds and other compatible ready-mixed construction materials.
6. BM678 or BM680?
The BM678 provides a 90L batch output in a more compact package. The BM680 increases batch output to 120L for higher-volume commercial work.
7. BM678 or BM679C?
The BM678 focuses on lower maintenance with a maintenance-free Type-R gearbox and three-arm mixing system. The BM679C uses a four-blade system with a traditional cycloidal reducer.
8. What warranty does it include?
The BM678 comes with a 12-month Forestwest warranty.
