Description

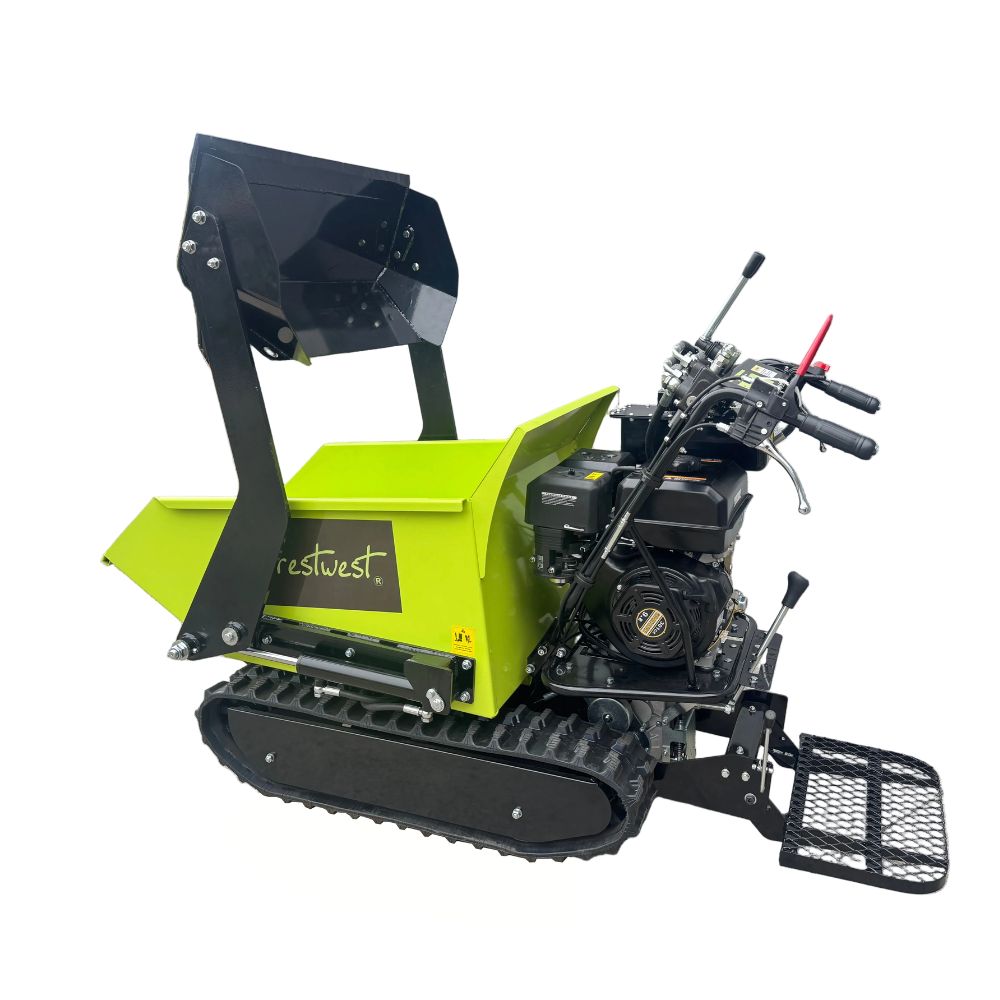

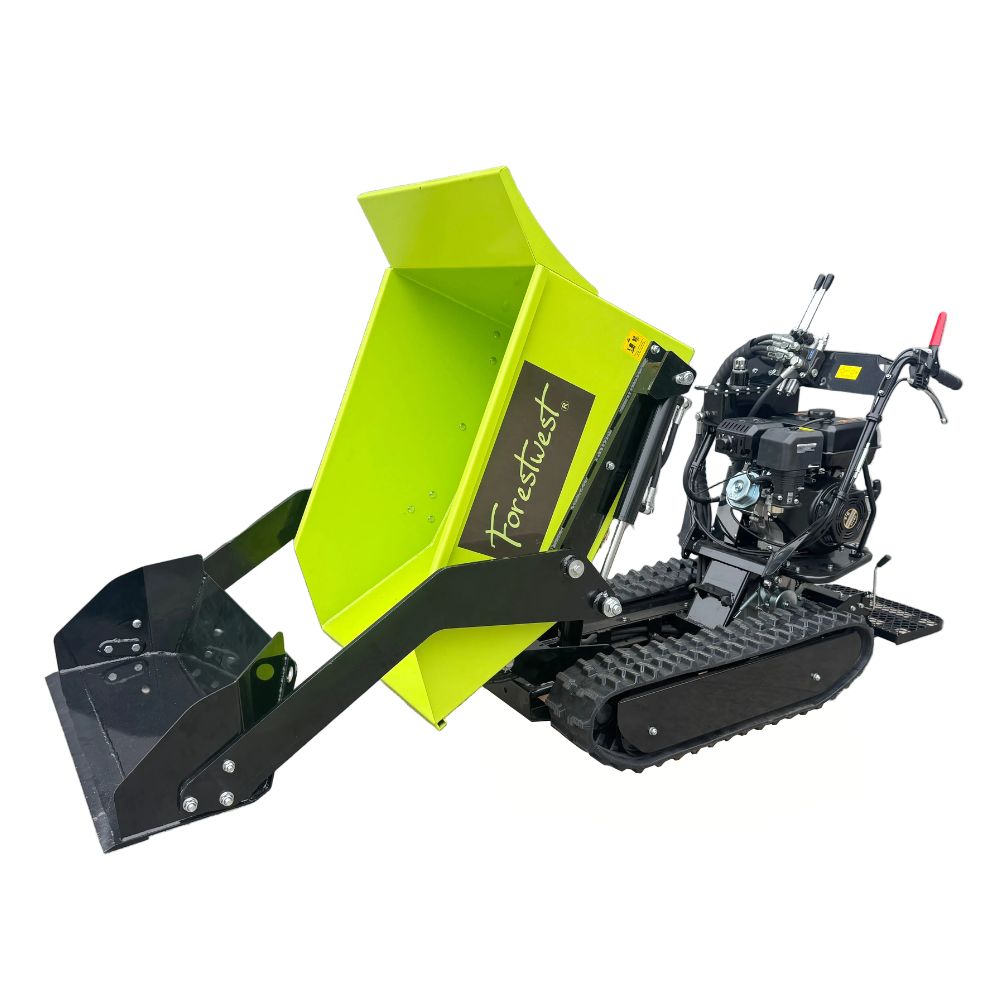

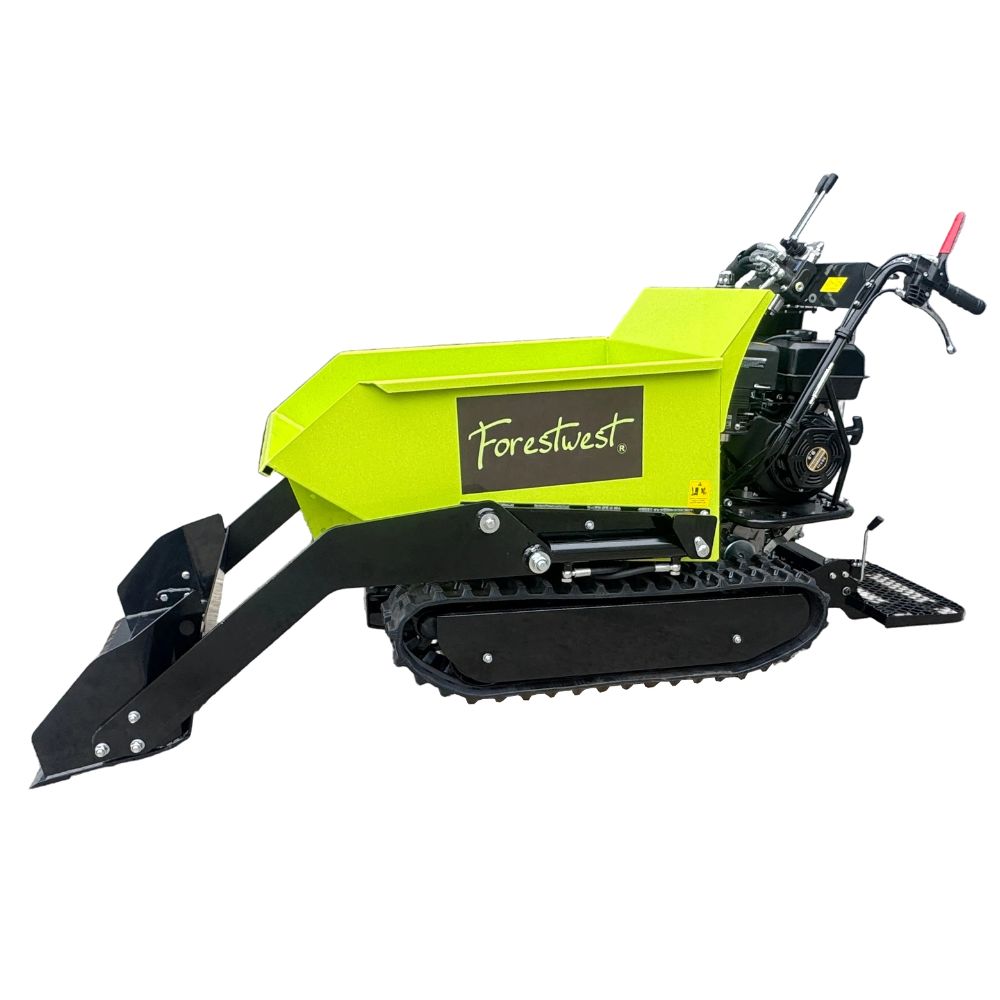

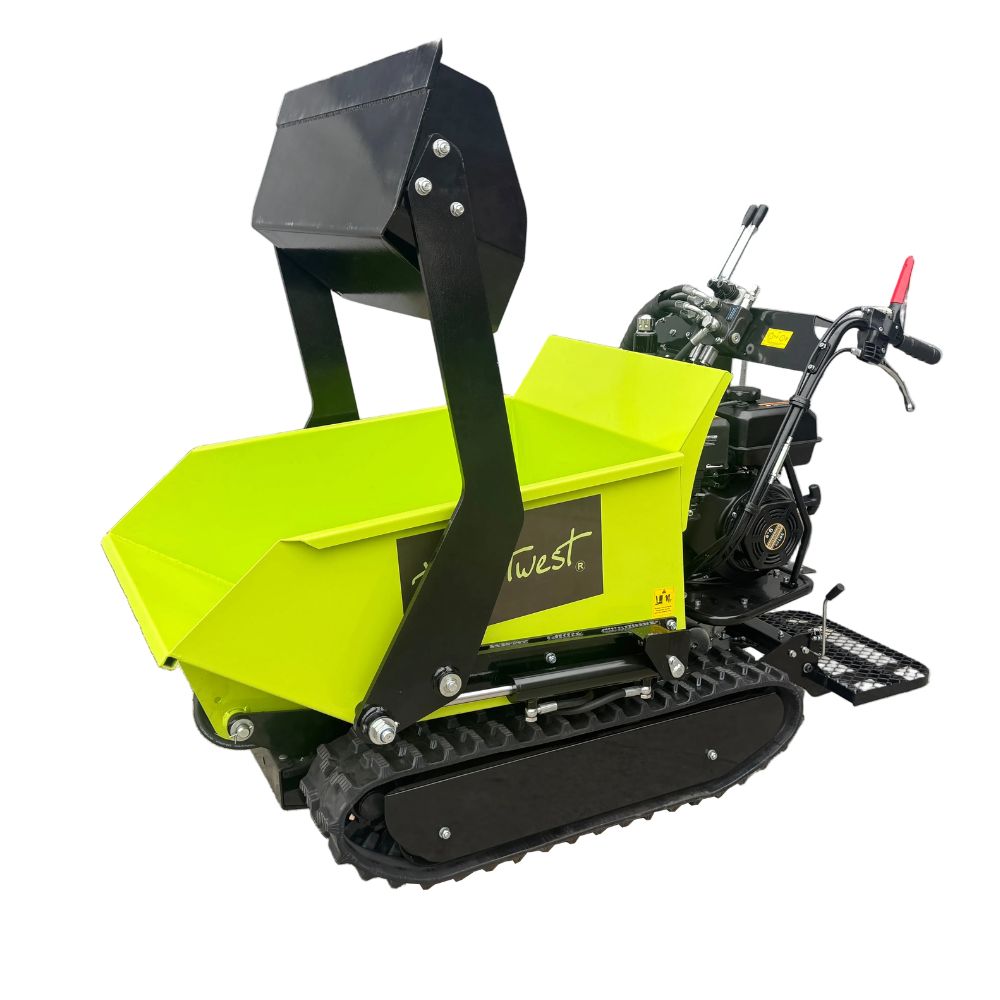

The Forestwest BM11083 500kg Self-Loading Tracked Dumper is the highest-specification material transporter in the Forestwest mini dumper range, combining tracked drive, hydraulic tipping, hydraulic self-loading and a stand-on operator platform.
A powerful 10HP 300cc Rato petrol engine drives the tracked undercarriage through a 3-forward and 1-reverse transmission. The machine carries loads of up to 500kg while remaining only approximately 740mm wide, helping it access work areas where larger machinery may be impractical.

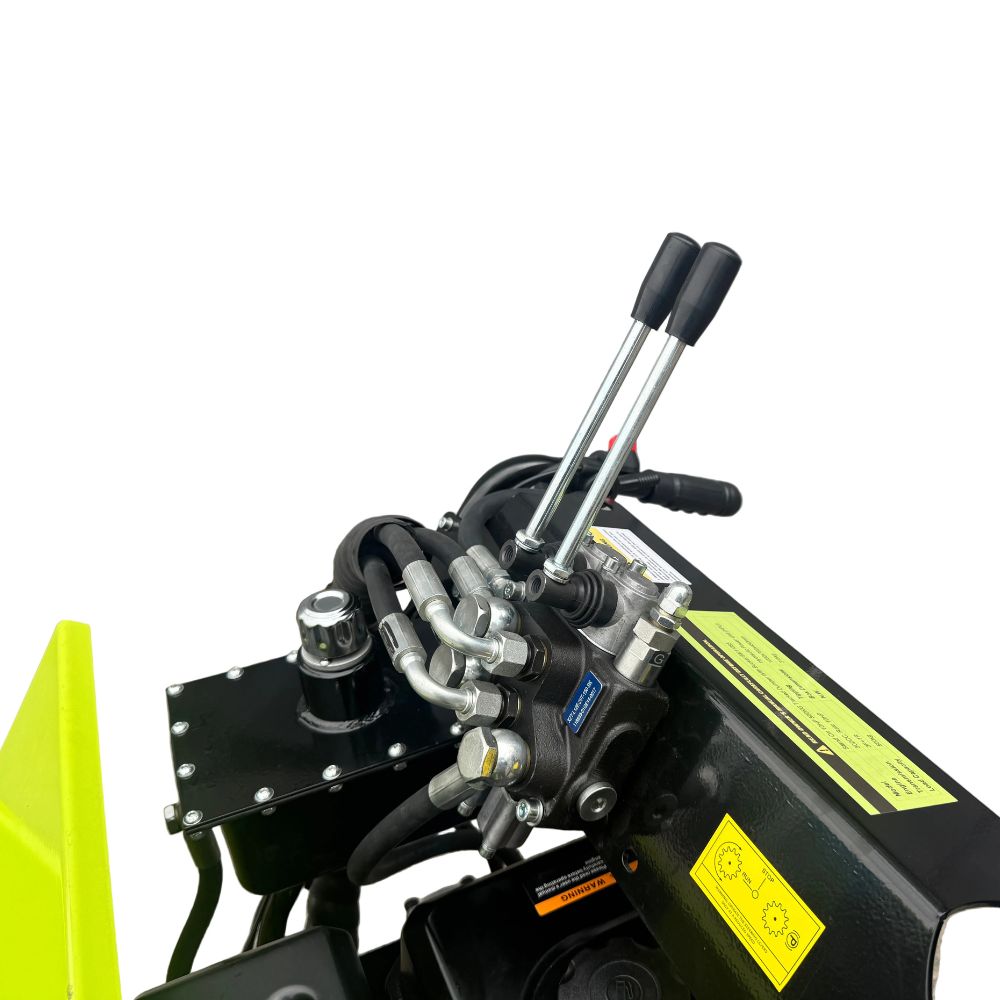

The integrated hydraulic self-loading system reduces the need to manually shovel material into the dumper, while the Hydraulic Power Unit provides powered tipping at the destination. The stand-on platform allows the operator to ride with the machine, improving productivity across larger worksites.
Key Features & Benefits
- Hydraulic Self-Loading: Integrated loading system reduces manual shovelling and material handling.
- 500kg Load Capacity: Handles substantial construction, landscaping, farming and property-maintenance loads.

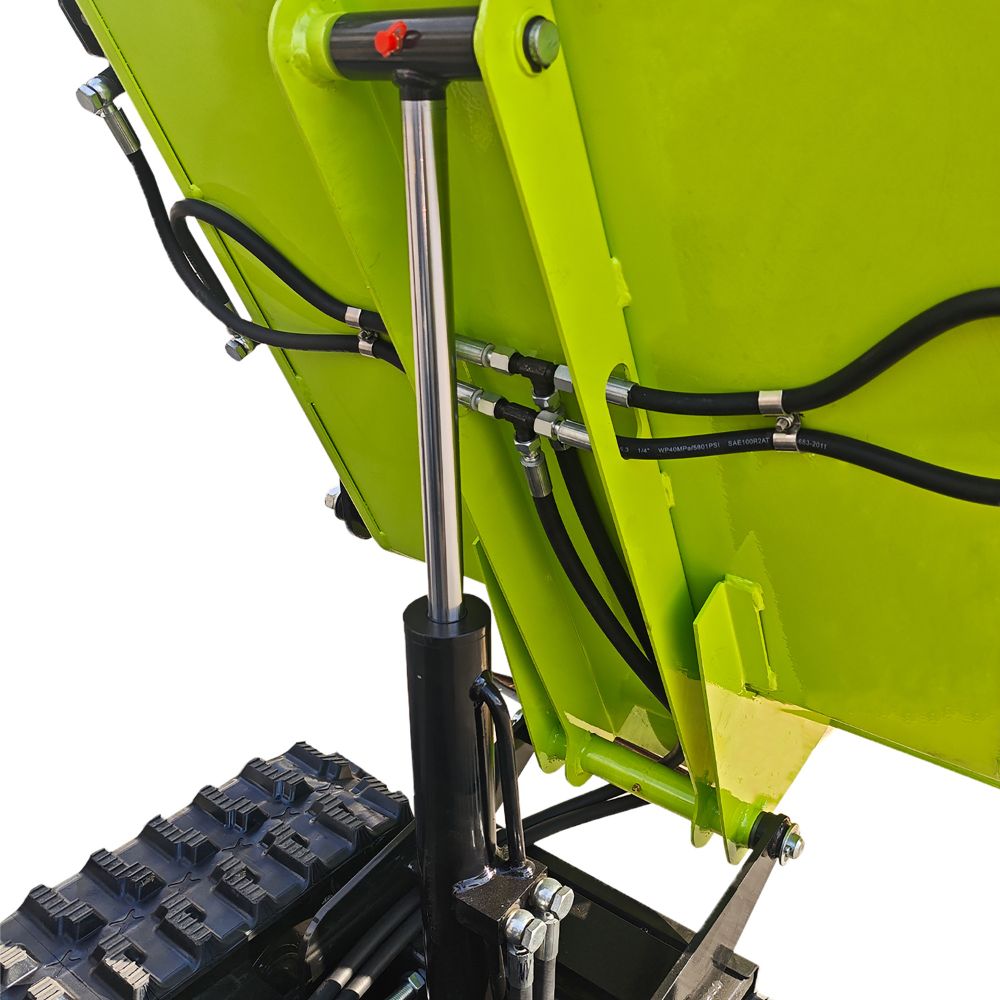

- Hydraulic Tipping: Powered unloading reduces manual effort at the destination.

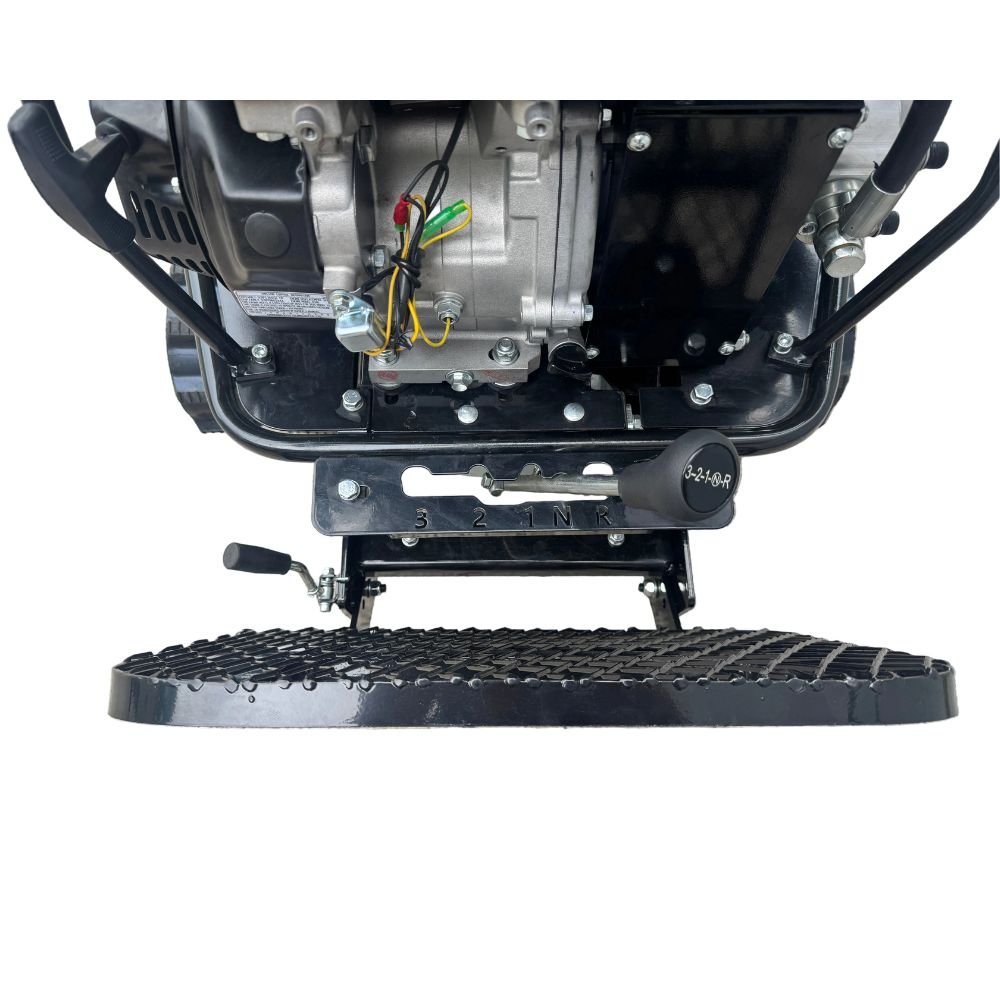

- Stand-On Operator Platform: Allows the operator to ride with the dumper for improved productivity.
- 10HP 300cc Rato Engine: Provides strong petrol power for tracked operation under load.
- 180mm Rubber Tracks: Provide traction and stability over loose, soft and uneven terrain.
- 3 Forward + 1 Reverse: Gear selection allows controlled movement under varying work conditions.
- Up to 5.5km/h Travel Speed: Helps reduce transport time across larger sites.
- 740mm Overall Width: Combines commercial capability with relatively narrow access dimensions.
Don't need self-loading or stand-on operation? The BM11080B 500kg Hydraulic Tracked Dumper provides the same nominal carrying capacity in a simpler walk-behind configuration.
You can also compare the full Forestwest Tracked Dumper range.
Specifications
| Model | BM11083 |
| Engine | 10HP / 300cc Rato Petrol |
| Drive | Chain Tracked |
| Track Width | 180mm |
| Transmission | 3 Forward + 1 Reverse |
| Travel Speed | 0–5.5km/h |
| Load Capacity | Up to 500kg |

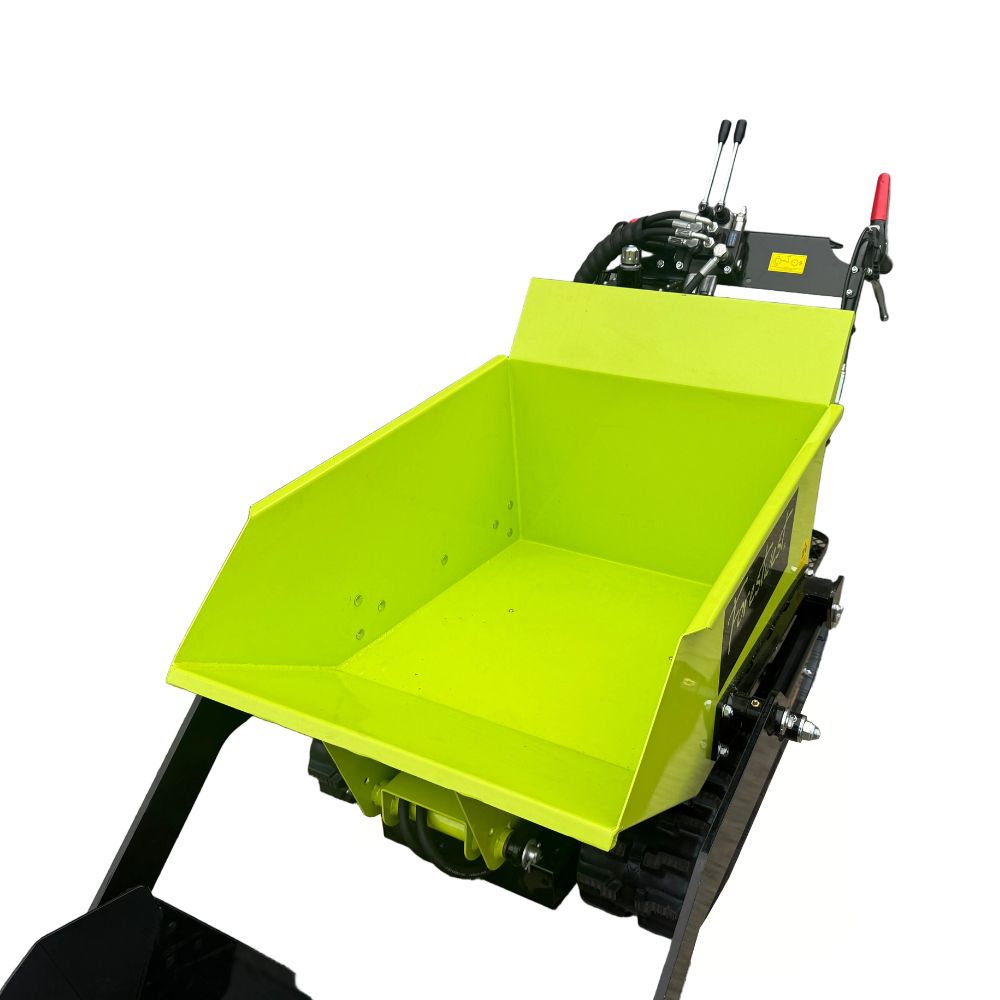

| Bucket Size | 1000 × 700 × 450mm |
| Loading | Hydraulic Self-Loading |
| Tipping | Hydraulic Power Unit |
| Operator Position | Stand-On Platform |
| Overall Size | 1800 × 740 × 960mm |
| Net / Gross Weight | 340 / 375kg |
Frequently Asked Questions
1. Does the BM11083 load material by itself?
Yes. It features a hydraulic self-loading system designed to reduce manual loading effort.
2. How much can it carry?
The BM11083 has a rated load capacity of up to 500kg.
3. Does it have hydraulic tipping?
Yes. The main bucket is tipped by a Hydraulic Power Unit.
4. Can the operator ride on it?
Yes. The BM11083 includes a stand-on operator platform.
5. What engine does it use?
It uses a 10HP 300cc Rato petrol engine.
6. How wide is the machine?
The overall width is approximately 740mm, helping it access many narrower work areas.
7. BM11083 or BM11080B?
Both carry up to 500kg and provide hydraulic tipping. The BM11083 adds hydraulic self-loading and a stand-on operator platform, while the BM11080B is a simpler walk-behind machine.
8. What types of work is it designed for?
It is suited to construction, landscaping, farming, earthmoving and property-maintenance jobs involving repeated loading and transport of compatible materials.
