Description

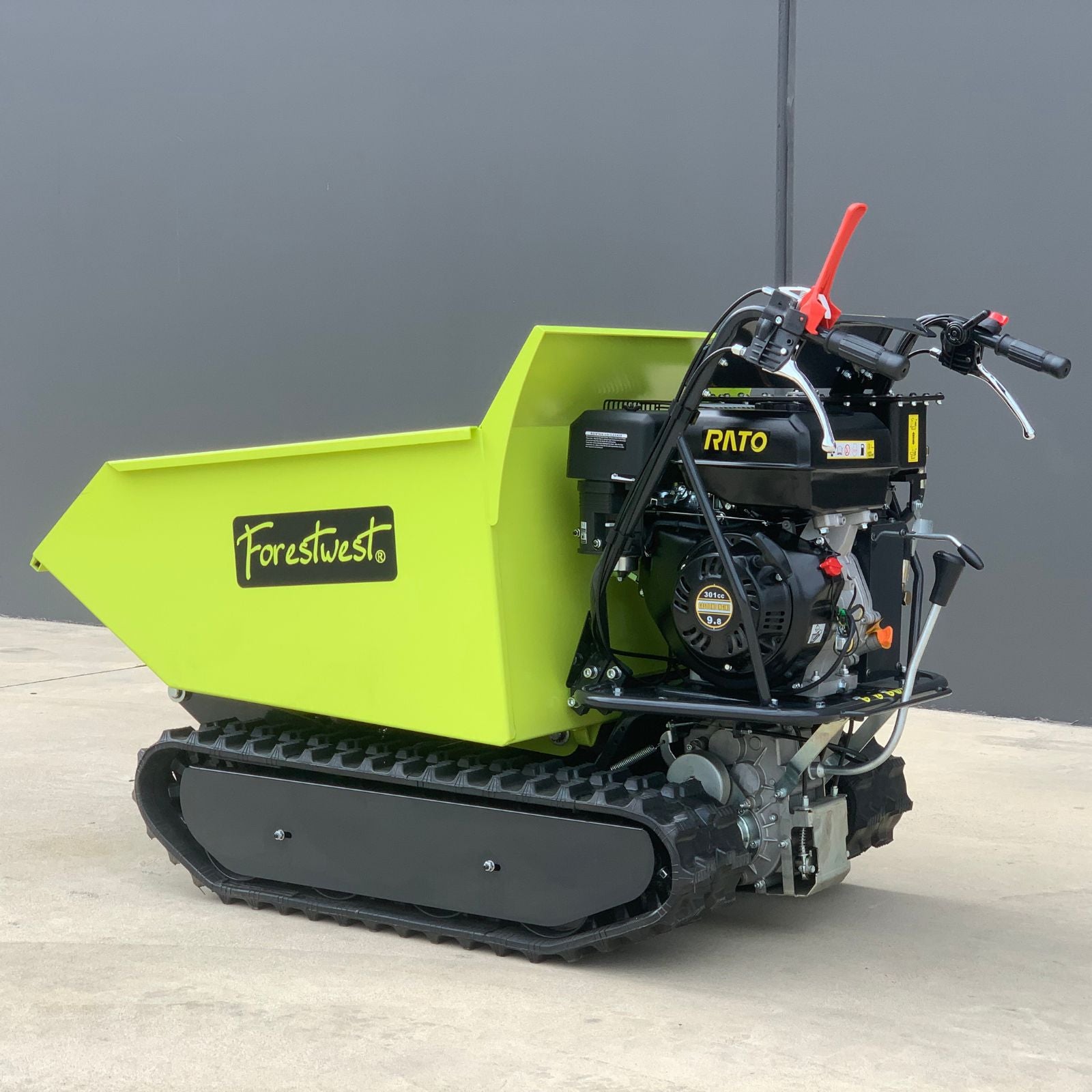

The Forestwest BM11101500kg Hydraulic Tracked Dumper is a heavy-duty petrol mini dumper designed for construction, landscaping, farming and commercial material transport on uneven terrain.
Powered by a 10HP 302cc Rato petrol engine, the BM11101 carries up to 500kg and drives through wide 180mm rubber tracks. The tracked undercarriage provides strong traction and stability when transporting heavy loads across gravel, soil, mud and rough job-site surfaces.
A dedicated Hydraulic Power Unit tips the large steel bucket for powered unloading, while the 3-forward and 1-reverse transmission provides travel speeds of up to approximately 5.5km/h.

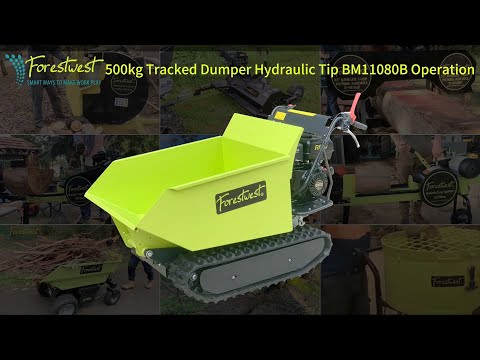

Demo:
Key Features & Benefits
- 500kg Load Capacity: Designed for high-volume construction, landscaping and farming applications.
- Hydraulic Tipping: Hydraulic Power Unit unloads heavy material without manual lifting.

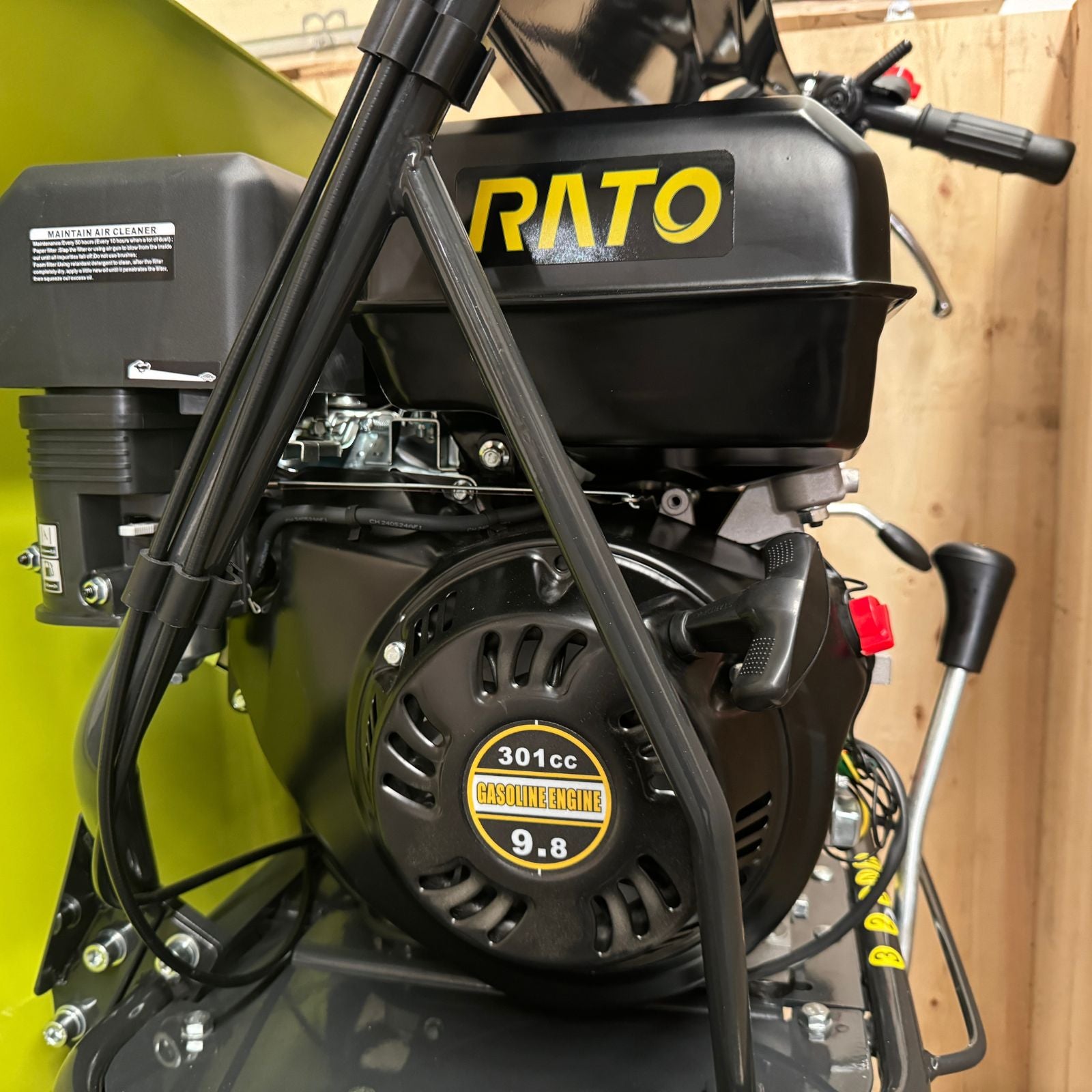

- 10HP 302cc Rato Engine: Provides substantial petrol power for loaded tracked operation.
- 180mm Rubber Tracks: Improve traction and stability on loose and uneven surfaces.

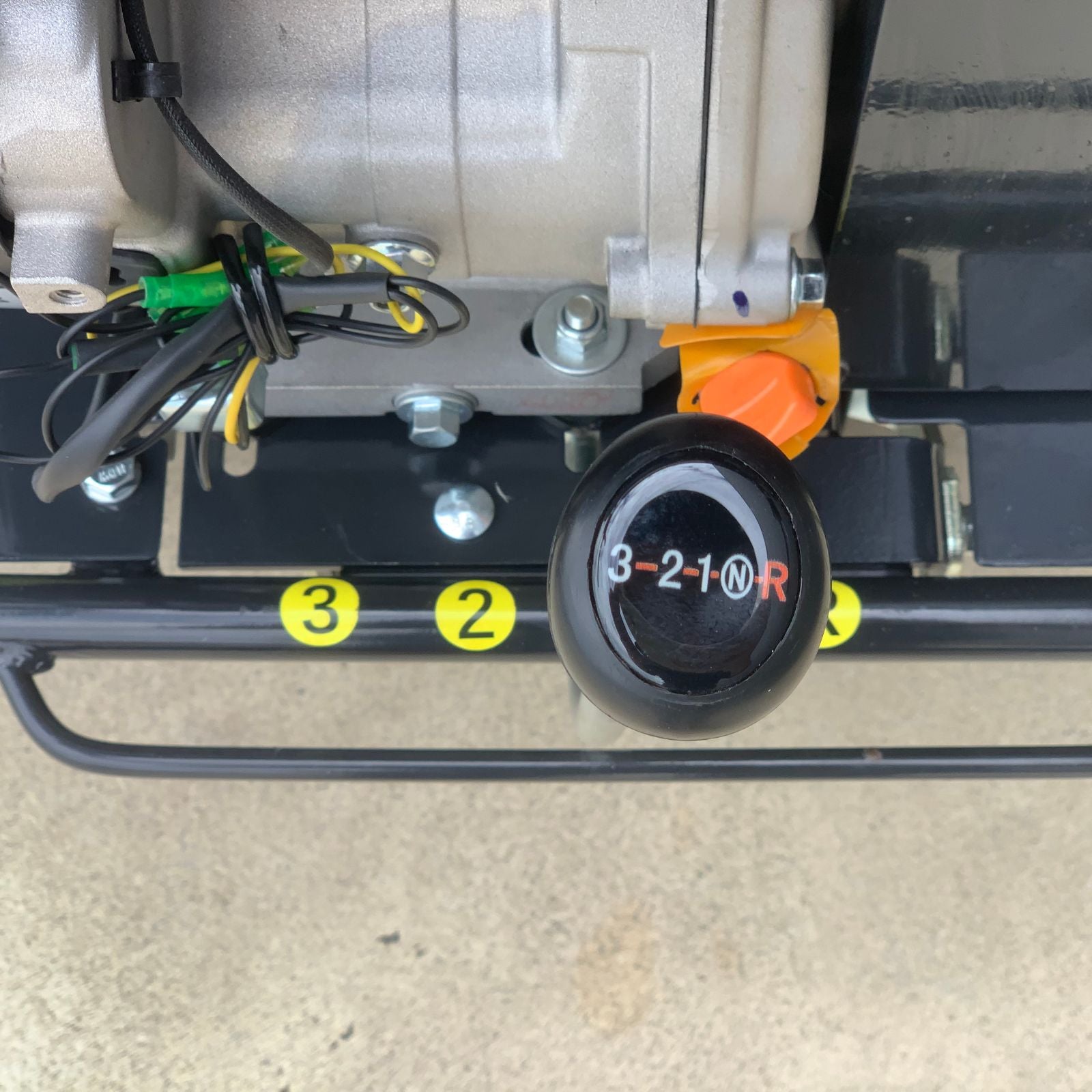

- 3 Forward + 1 Reverse: Provides gear selection for varying loads and terrain.
- Up to 5.5km/h Travel Speed: Helps improve productivity when transporting material across larger sites.

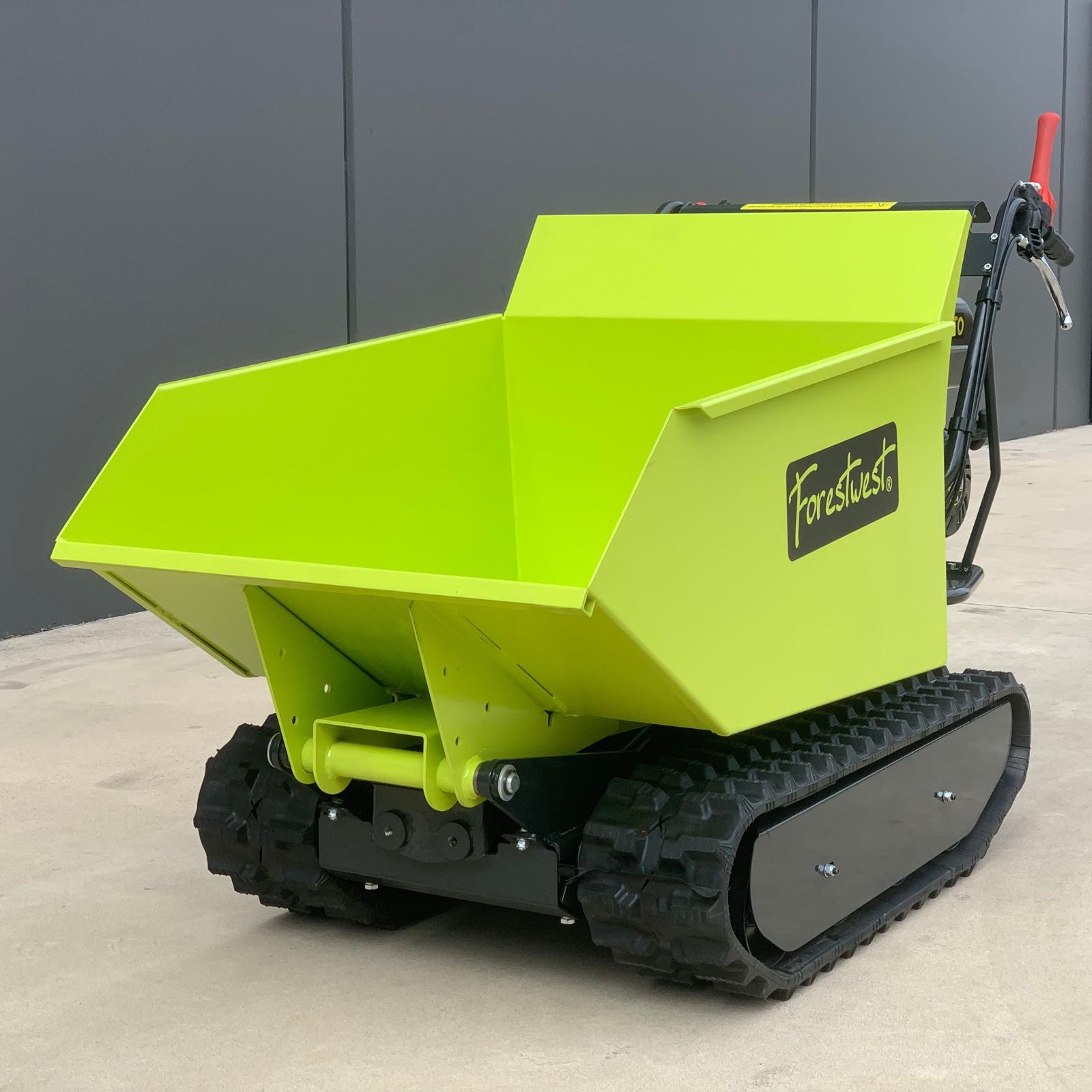

- Large Steel Bucket: 1000 × 700 × 450mm bucket accommodates substantial material loads.
- Heavy-Duty Tracked Chassis: Designed for sand, soil, cement, bricks, logs and other compatible materials.
Need automatic loading as well as hydraulic tipping? Consider the BM11083 500kg Self-Loading Stand-On Tracked Dumper.
Only need 300kg capacity? See the BM11078B 300kg Tracked Dumper.
You can also compare the full Forestwest Tracked Dumper range.
Specifications
| Model | BM11101 |
| Engine | 10HP / 302cc Rato Petrol |
| Drive | Chain Tracked |
| Track Width | 180mm |
| Transmission | 3 Forward + 1 Reverse |
| Travel Speed | 0–5.5km/h |
| Load Capacity | Up to 500kg |
| Bucket Size | 1000 × 700 × 450mm |
| Tipping | Hydraulic Power Unit |
| Product Size | 1650 × 740 × 960mm |
| Product Weight | 280kg |
| Package Size | 1660 x 750 x 1130mm |
| Package Weight | 320kg |
Frequently Asked Questions
1. How much can the BM11101 carry?
The BM11101 has a rated load capacity of up to 500kg.
2. Does it have hydraulic tipping?
Yes. A Hydraulic Power Unit raises the bucket for powered unloading.
3. What engine does it use?
The BM11101 uses a 9.8HP 300cc Rato petrol engine.
4. What is the advantage of the tracked drive?
The 180mm rubber tracks provide a larger contact area than wheels, improving traction and stability on loose and uneven terrain.
5. How fast can it travel?
The maximum stated travel speed is approximately 5.5km/h.
6. BM11101 or BM11083?
The BM11101 provides 500kg capacity and hydraulic tipping. The BM11083 additionally includes a stand-on operator platform and hydraulic self-loading system.
7. What materials can it carry?
Typical applications include soil, sand, gravel, cement, bricks, logs and other compatible construction or landscaping materials.
