Description

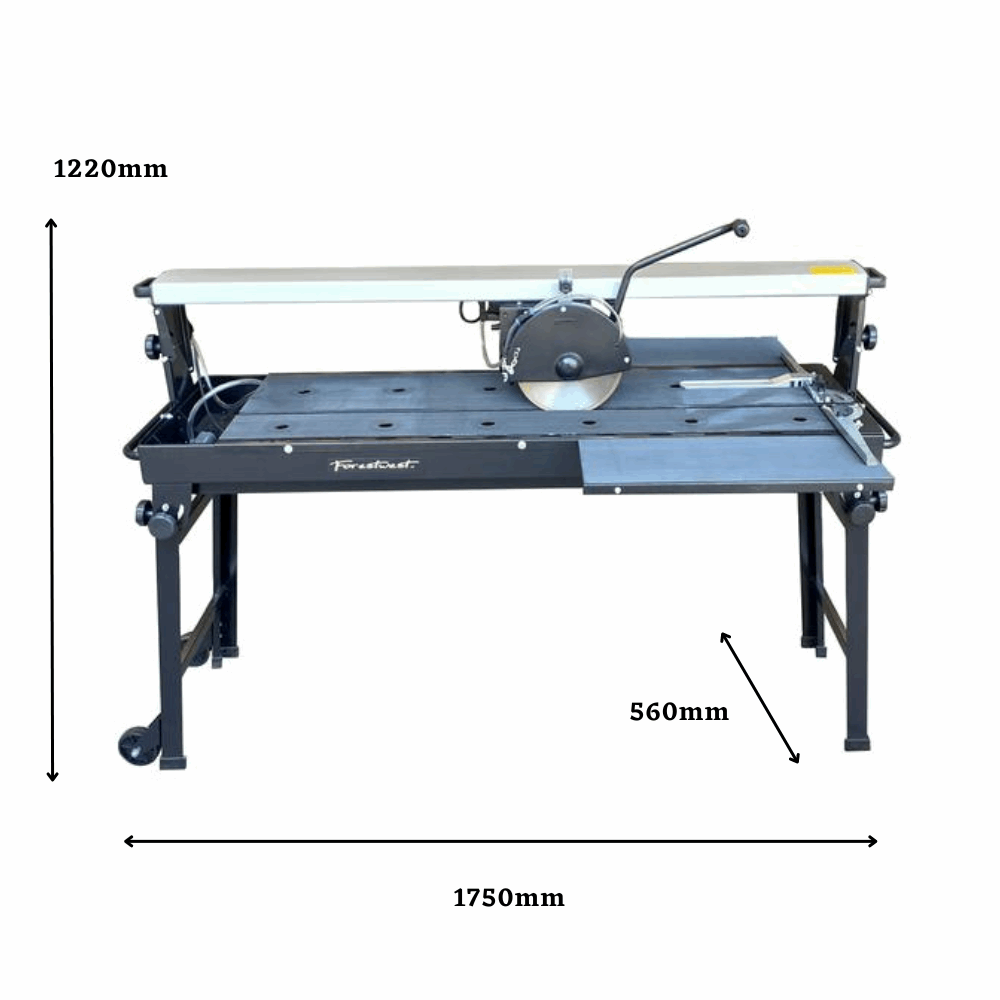

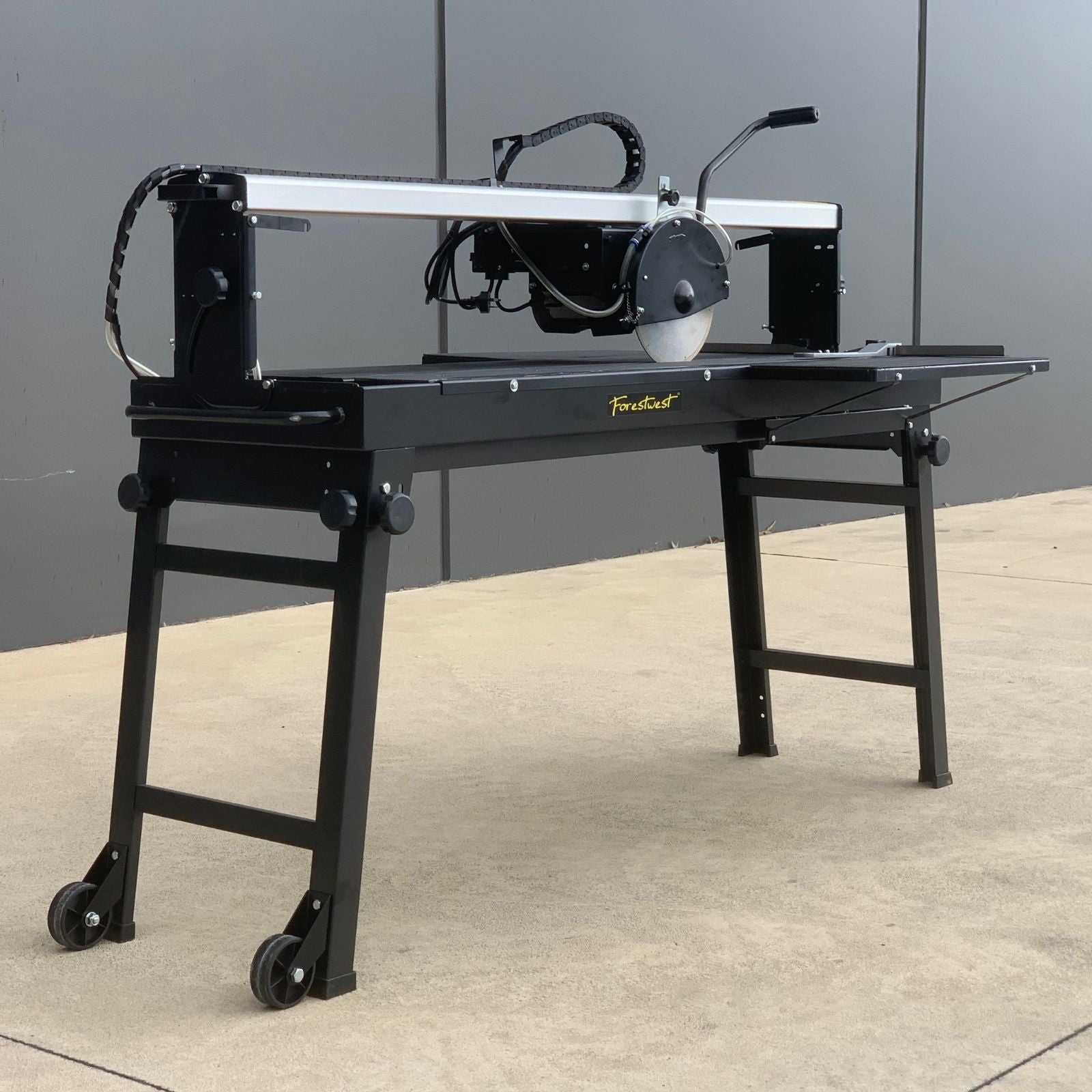

The Forestwest BM683 1250mm Wet Tile Saw is the highest-capacity electric tile cutter in the Forestwest range, designed for contractors and tilers working with long floor and wall tiles.
Powered by a 1500W electric motor, the BM683 provides a maximum straight cutting length of 1250mm and cutting depth of up to 60mm at 90°. This gives professional users substantially greater capacity than conventional 600–900mm tile saws.

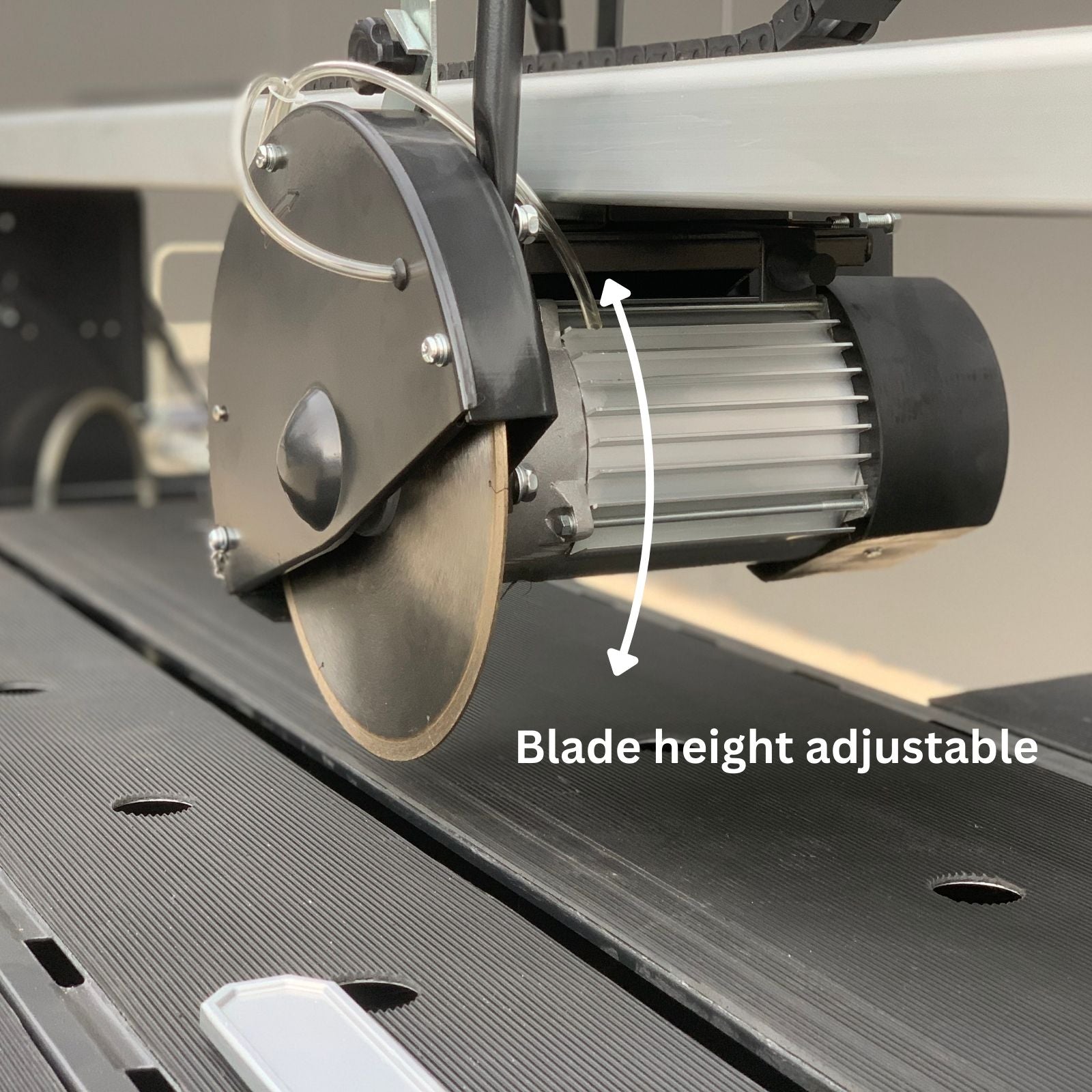

A 250mm continuous-rim wet diamond blade travels on a ball-bearing guided rail for smooth and accurate cutting. The dual-spray wet cutting system directs cooling water towards both sides of the blade, helping control heat, airborne dust and tile chipping during long cuts.
Assembly:
Demo:
Key Features & Benefits
- 1250mm Cutting Length: High-capacity cutting for long floor and wall tiles.
- 1500W Electric Motor: Provides strong cutting performance for professional tiling applications.
- 60mm Cutting Depth: Cuts up to 60mm deep at 90° and 48mm at 45°.
- 250mm Diamond Blade: Large continuous-rim wet blade included for accurate tile cutting.

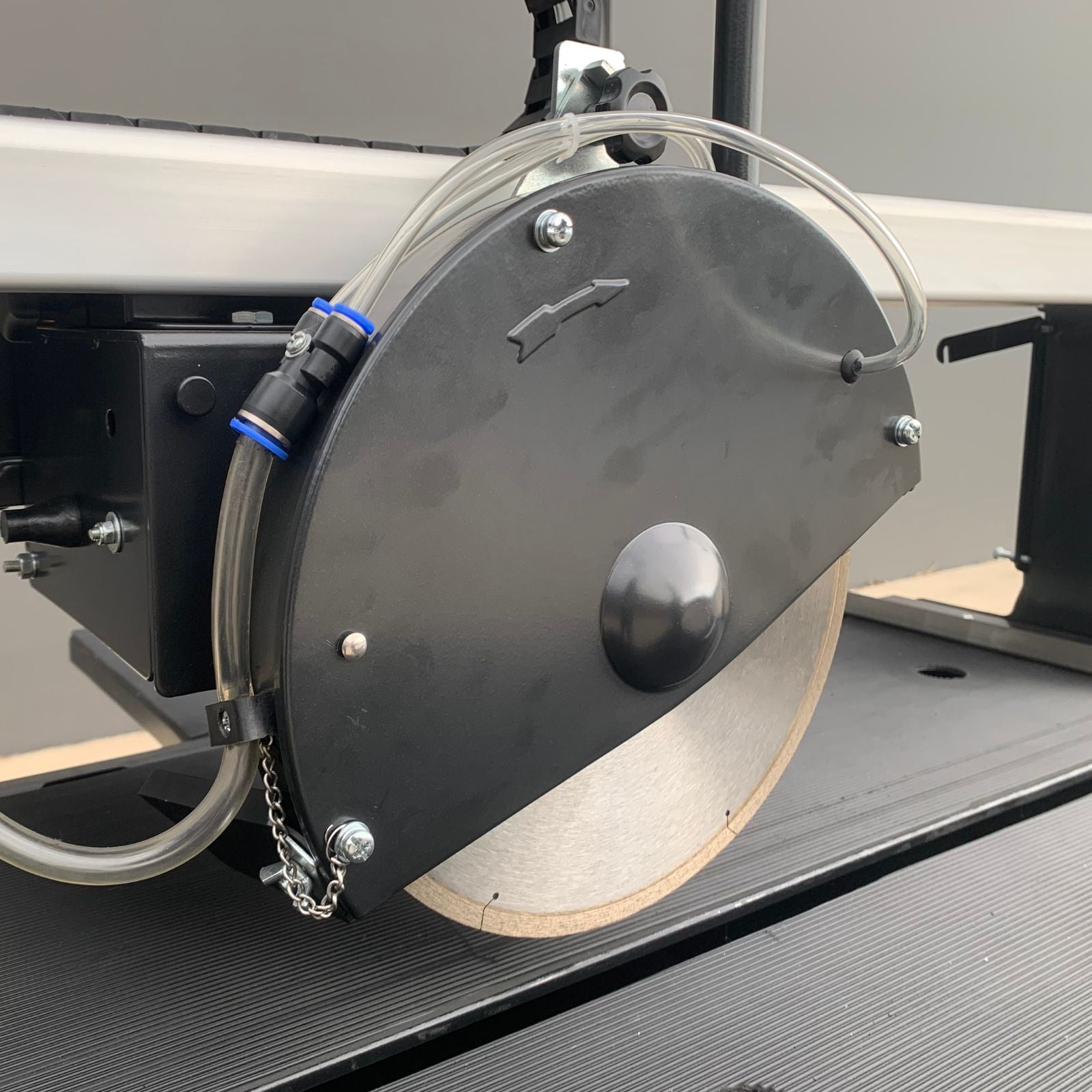

- Dual-Spray Wet Cutting: Water is directed to both sides of the blade for effective cooling and dust control.
- Ball-Bearing Guided Rail: Supports smooth and accurate cutting-head movement over long cuts.

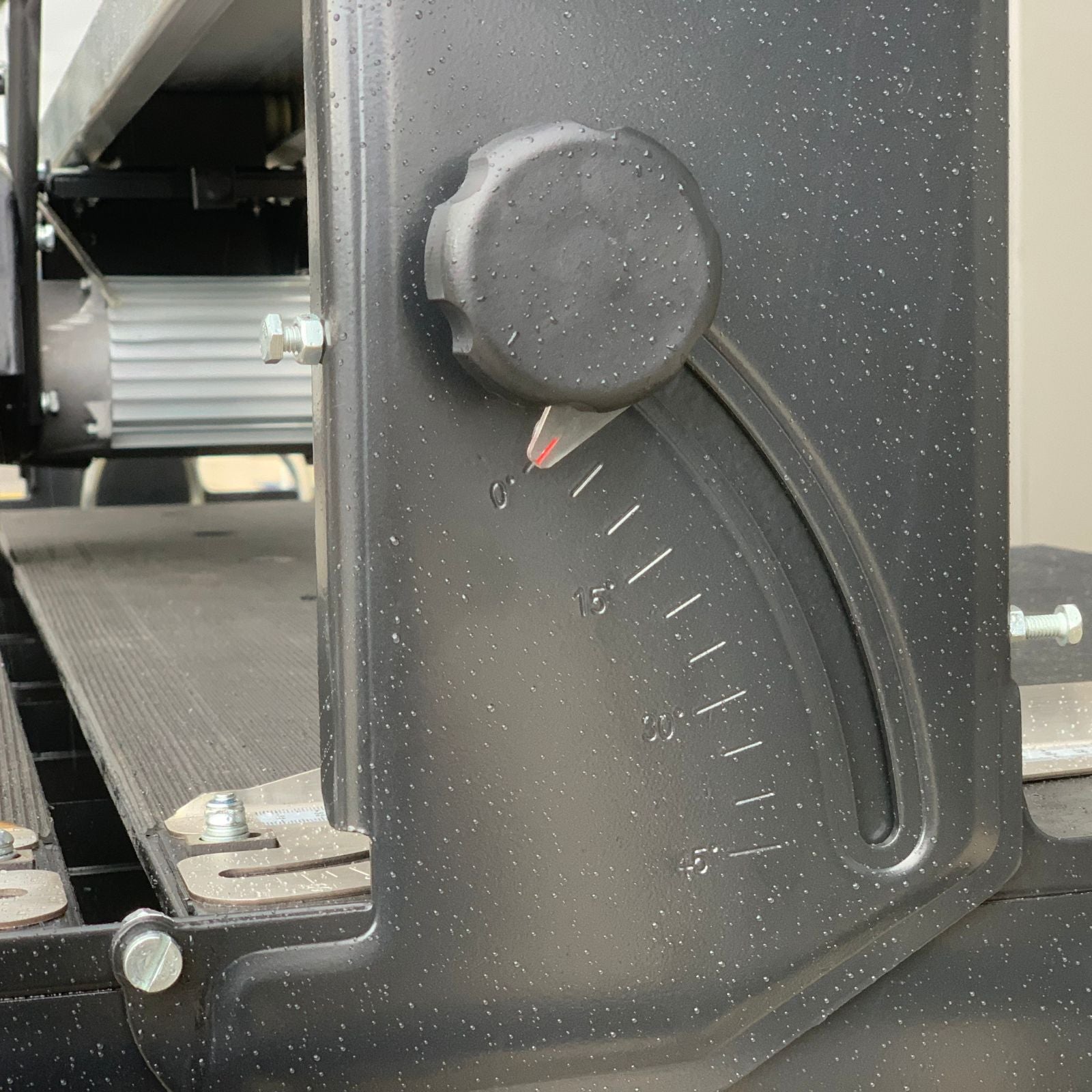

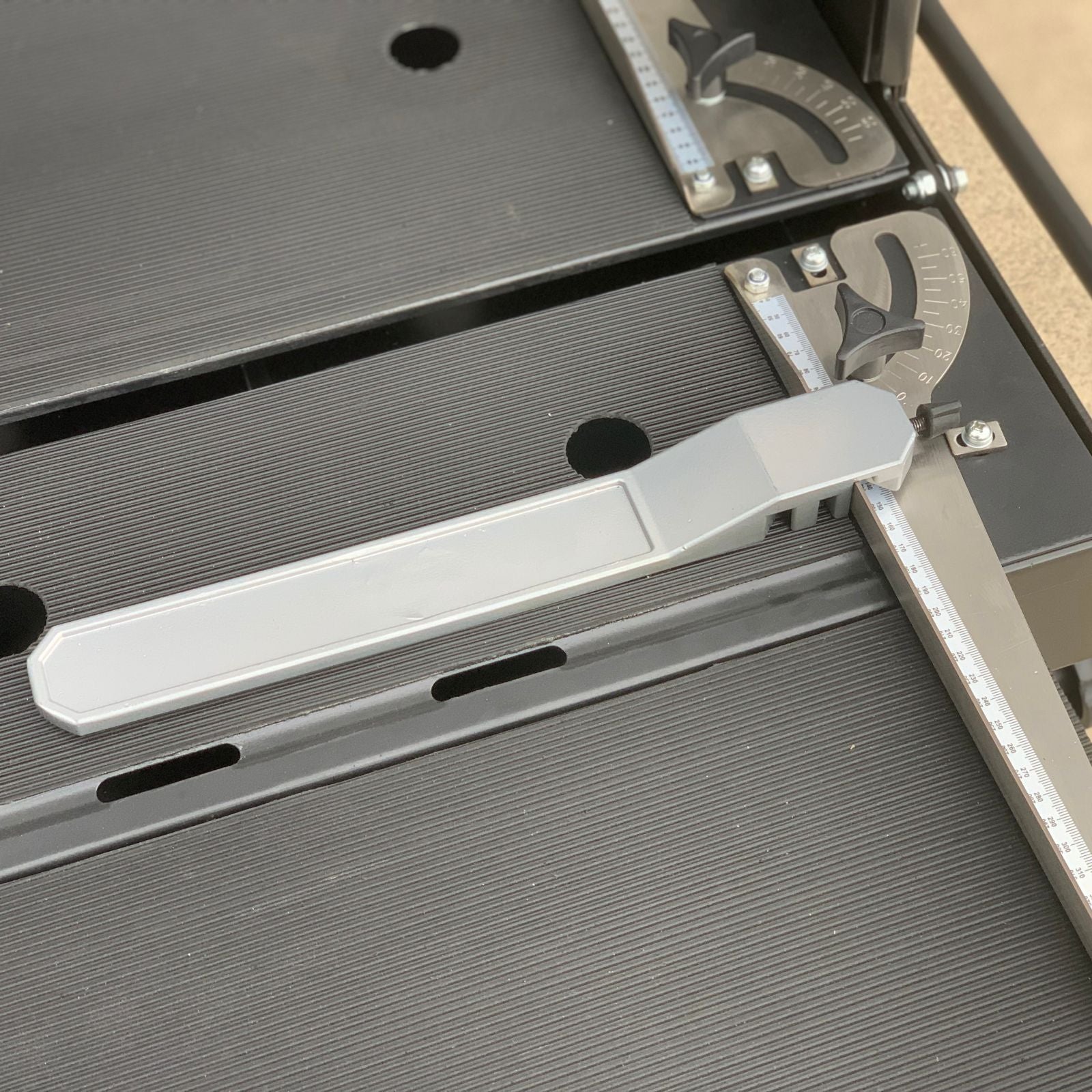

- 45–90° Adjustable Rail: Allows straight and mitre cutting for different installation requirements.
- Two Support Tables: Provide additional support for larger tiles.

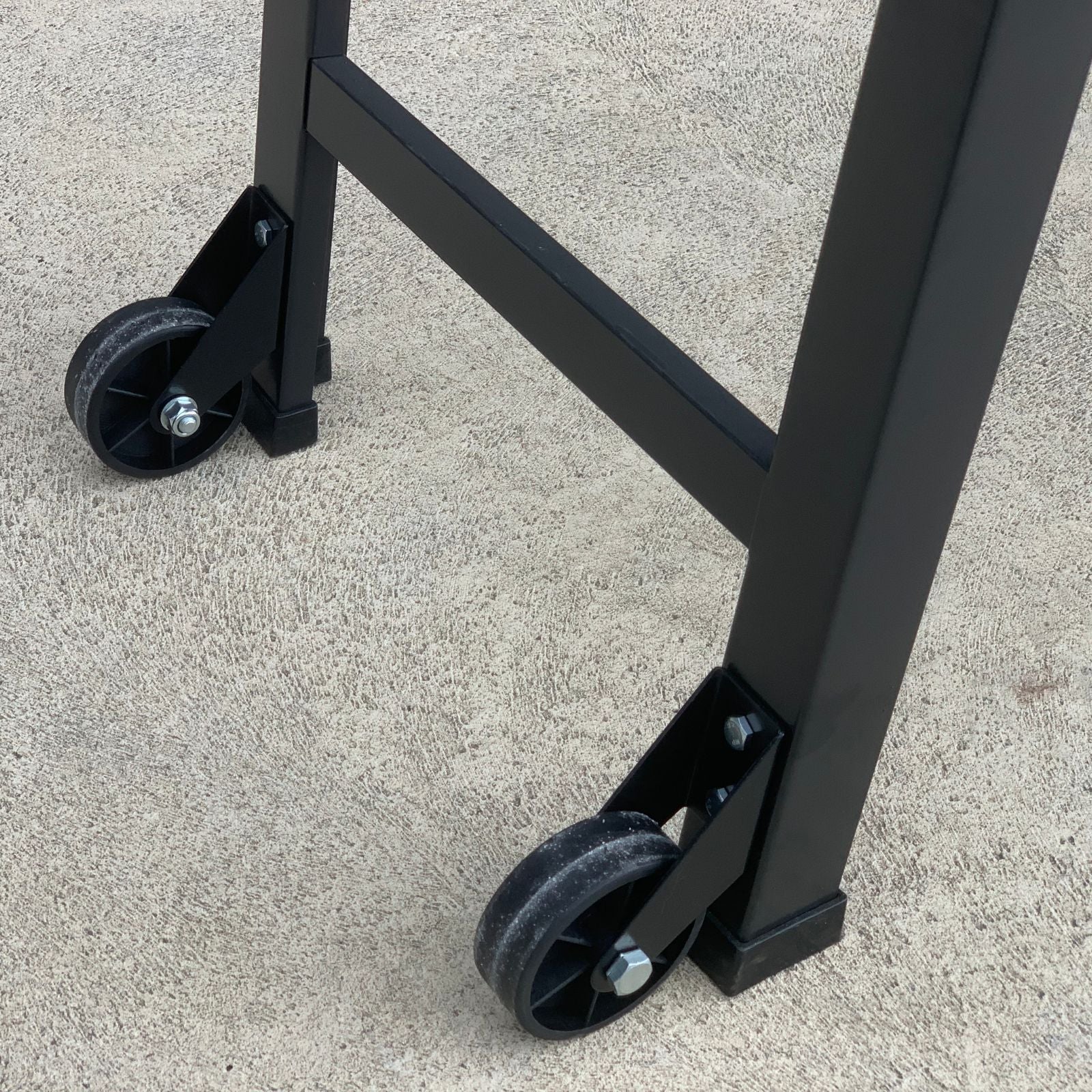

- Foldable Adjustable Legs: Simplify transport and help with setup on uneven surfaces.
Don't need the full 1250mm cutting length? The BM660 920mm Wet Tile Saw offers laser-assisted cutting in a more compact machine.
Need greater cutting depth in a smaller saw? See the BM688 720mm Wet Tile Saw.
You can also compare the full Forestwest Wet Tile Saw & Electric Tile Cutter range.
Specifications
| Model | BM683 |
| Motor Power | 1500W / 220–240V / 10A |
| Blade Size | 250 × 25.4 × 2.4mm |
| Max. Cutting Length | 1250mm |
| Max. Cutting Depth at 90° | 60mm |
| Max. Cutting Depth at 45° | 48mm |
| Table Size | 1440 × 503mm |
| Guide System | Ball-Bearing Guided Rail |
| Wet Cutting System | Dual Spray with High-Volume Pump |

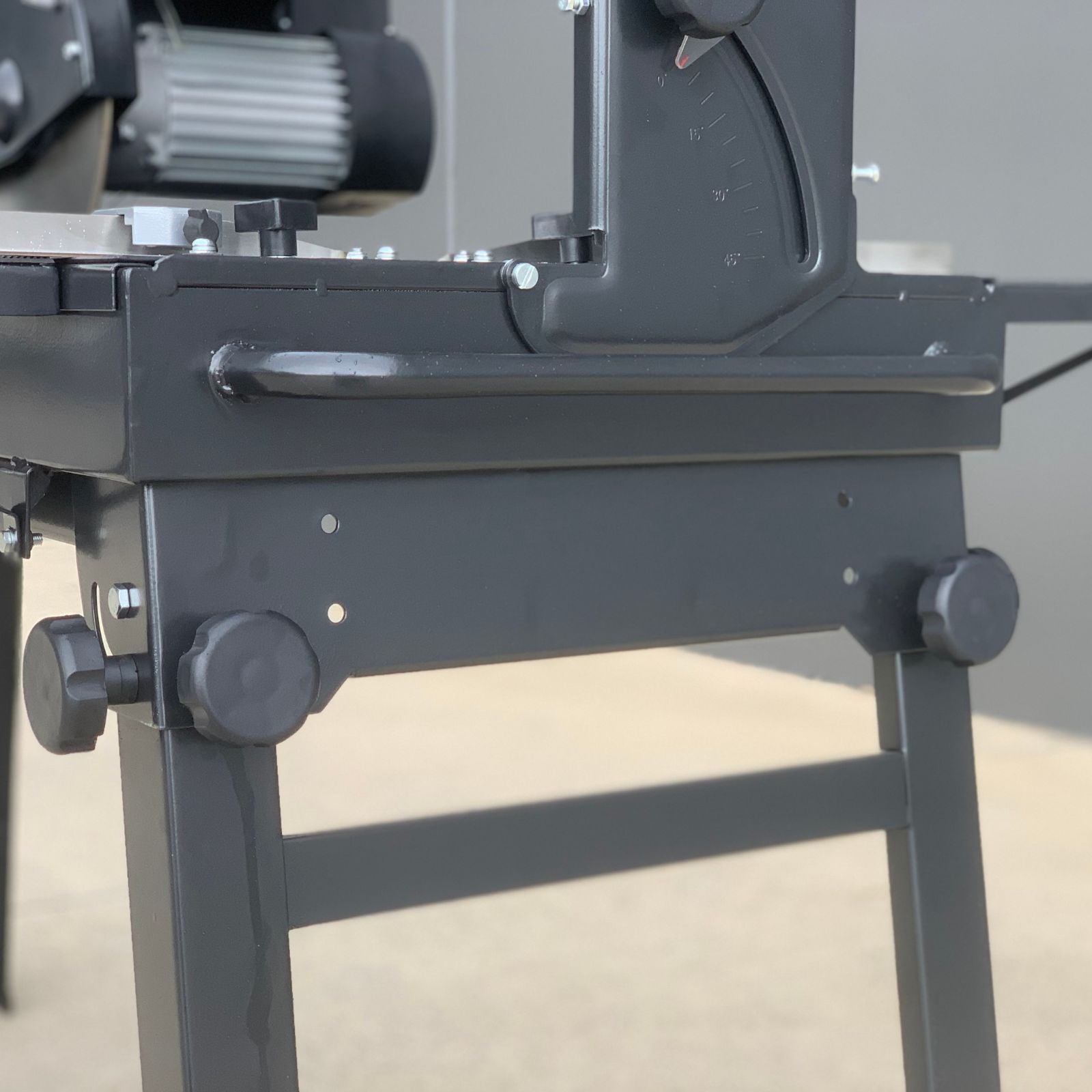

| Cutting Angle | 45–90° Adjustable Rail |
| Packing Size | 1800 × 600 × 660mm |
| Net / Gross Weight | 86 / 112kg |
Frequently Asked Questions
1. What is the maximum cutting length?
The BM683 provides a maximum straight cutting length of 1250mm.
2. How deep can it cut?
It cuts up to 60mm deep at 90° and 48mm at 45°.
3. What size blade does it use?
The BM683 uses a 250mm continuous-rim wet diamond blade with a 25.4mm bore.
4. Can it cut porcelain tiles?
Yes. With the appropriate diamond blade and cutting technique, it is suitable for ceramic, porcelain and other compatible tile materials.
5. How does the wet cutting system work?

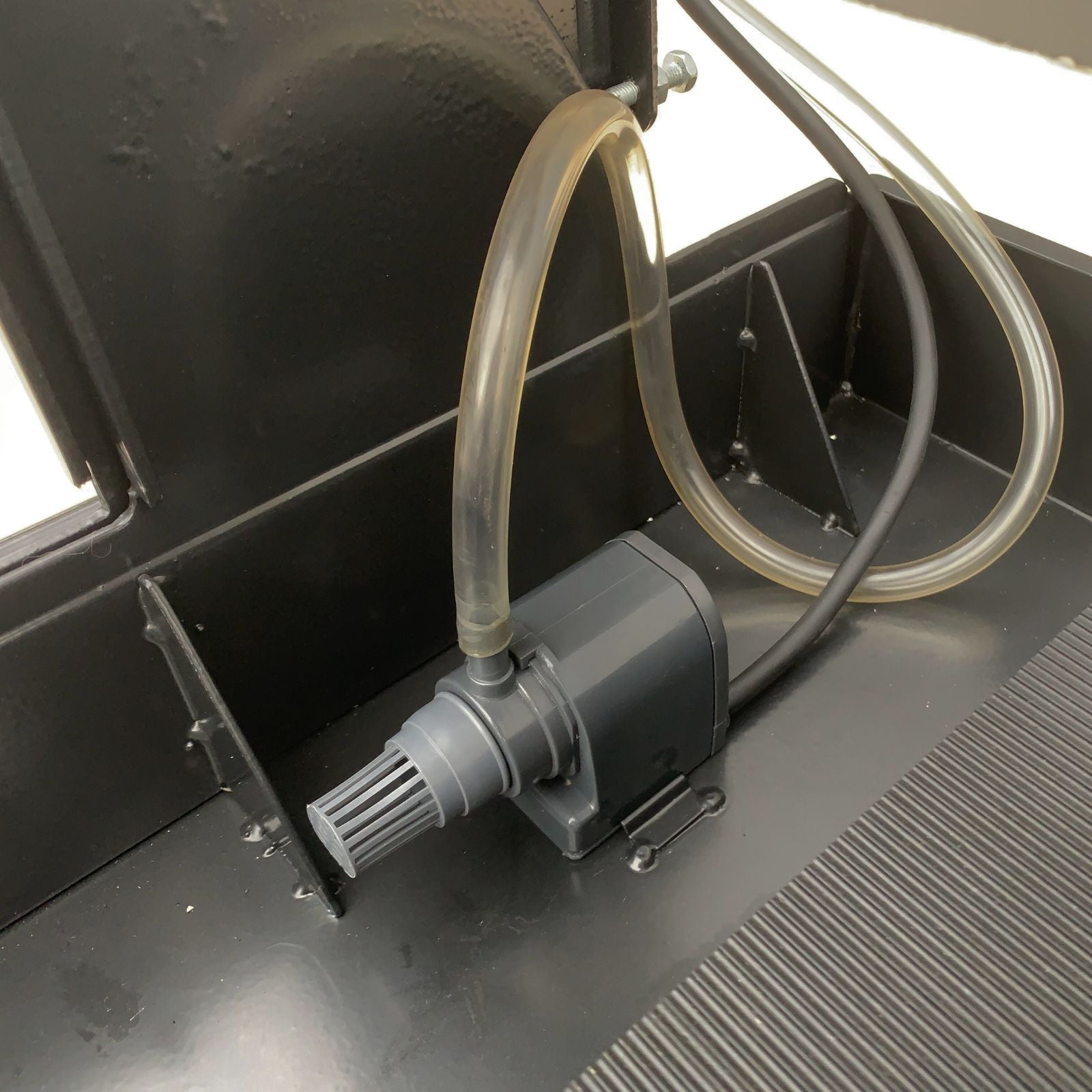

The dual-spray system directs cooling water towards both sides of the blade using a high-volume pump and removable reservoir.
6. BM660 or BM683?
The BM660 provides 920mm cutting capacity and a laser guide. The BM683 increases cutting length to 1250mm and cutting depth to 60mm.
7. Can it make mitre cuts?
Yes. The rail can be adjusted between 45° and 90° for angled cutting.
8. Is the stand foldable?
Yes. The legs can be folded for transport.
