Description

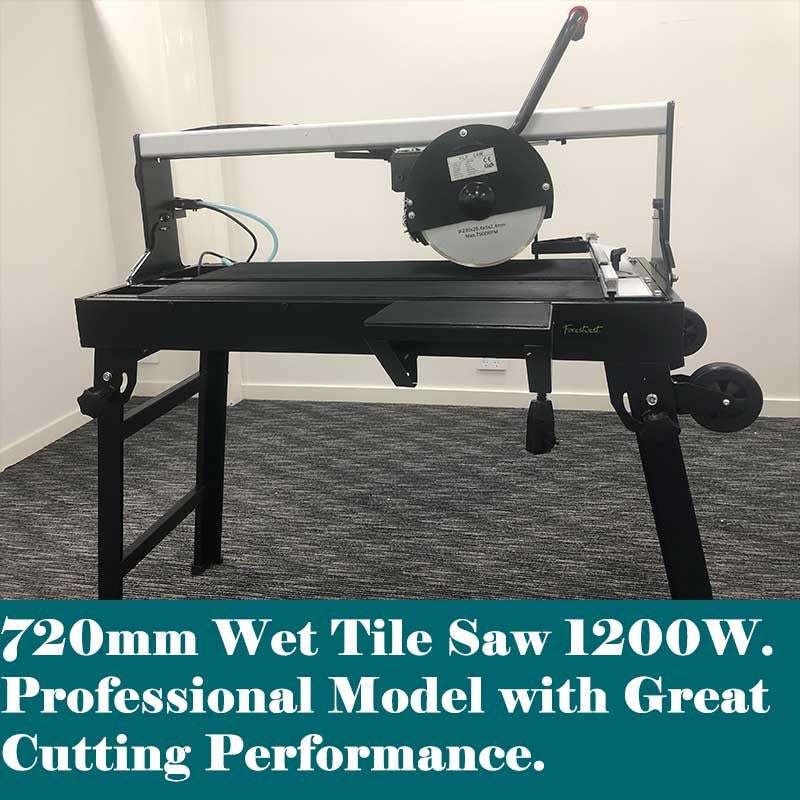

The Forestwest BM688 720mm Wet Tile Saw is a heavy-duty electric tile cutter designed for tiling and construction work where greater cutting depth is required.
Powered by a 1200W electric motor, the BM688 provides a maximum cutting length of 720mm and an impressive maximum cutting depth of 60mm at 90° and 48mm at 45°. This makes it particularly suitable for thicker tiles and compatible materials.
The saw uses a 230mm continuous-rim wet diamond blade mounted on a ball-bearing guided carriage for smooth travel. A high-volume wet cutting system helps cool the blade, reduce airborne dust and minimise tile chipping, while the additional support table provides extra support for larger workpieces.

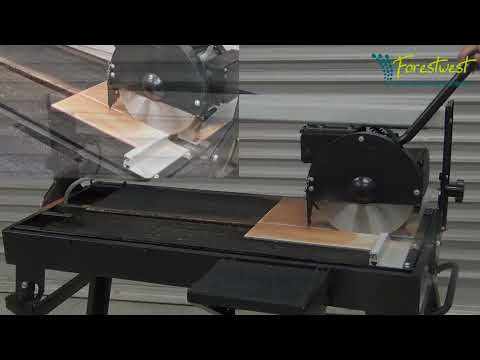

Demo:
Key Features & Benefits
- 720mm Cutting Length: Increased straight-cut capacity for medium and larger tile sizes.
- 60mm Cutting Depth: Cuts up to 60mm at 90° and 48mm at 45°.

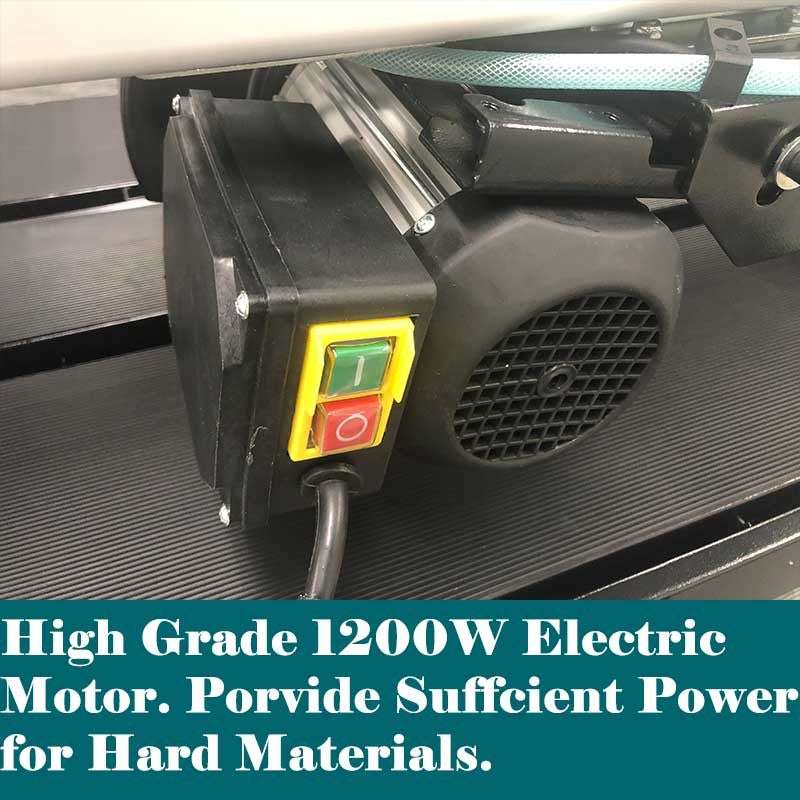

- 1200W Electric Motor: Provides increased power for demanding tile cutting applications.

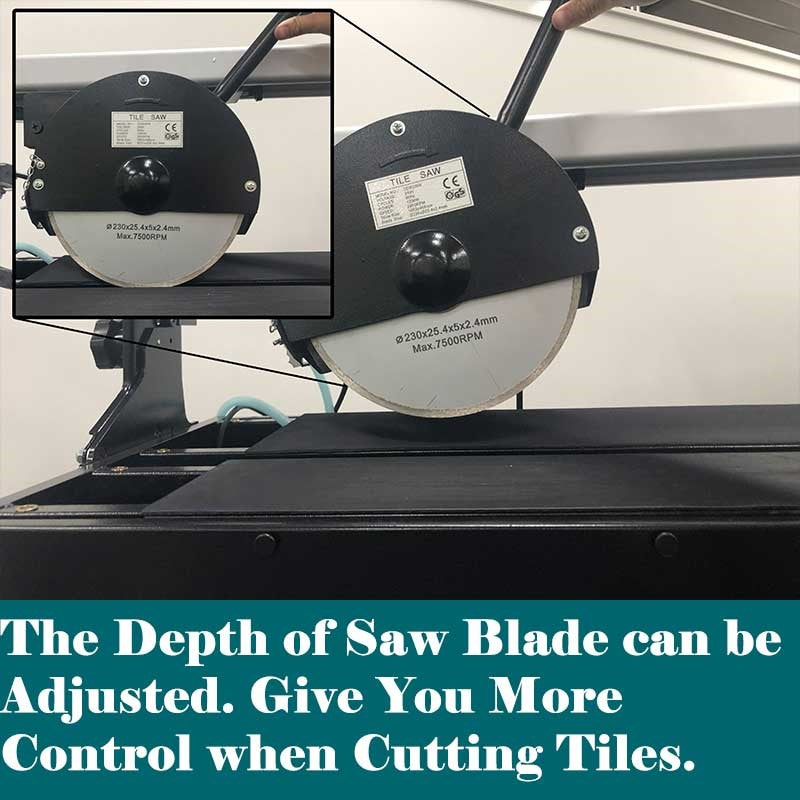

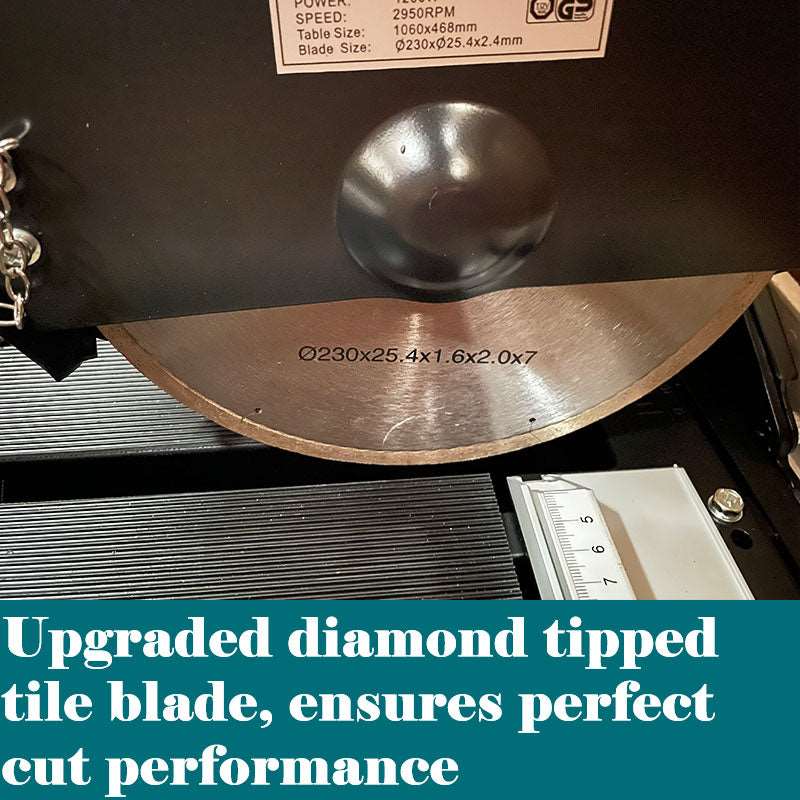

- 230mm Diamond Blade: Larger continuous-rim blade supports deeper wet cutting.

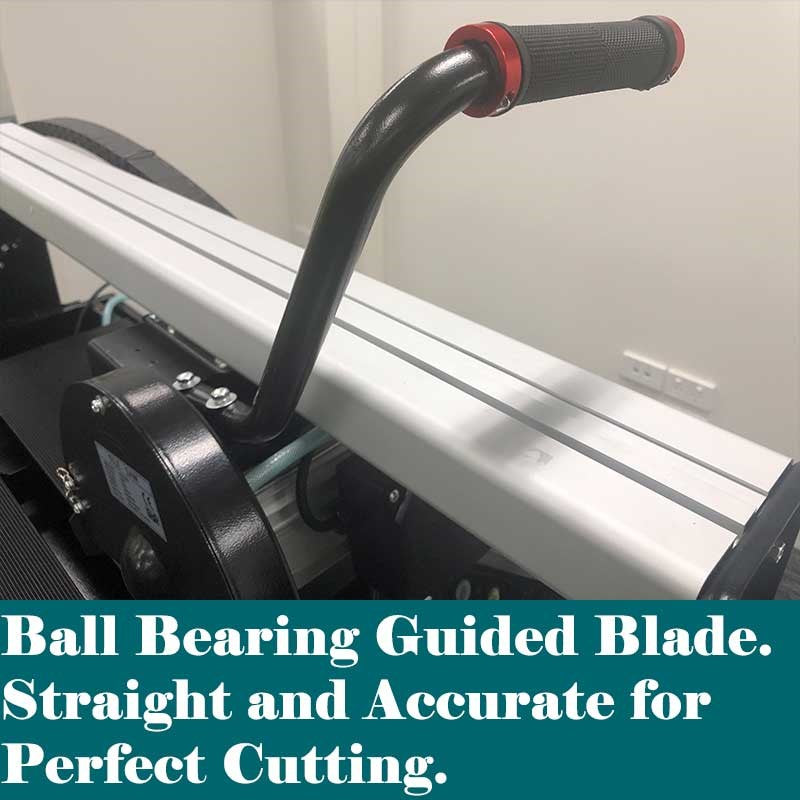

- Ball-Bearing Guided Carriage: Provides smooth and controlled cutting-head movement.

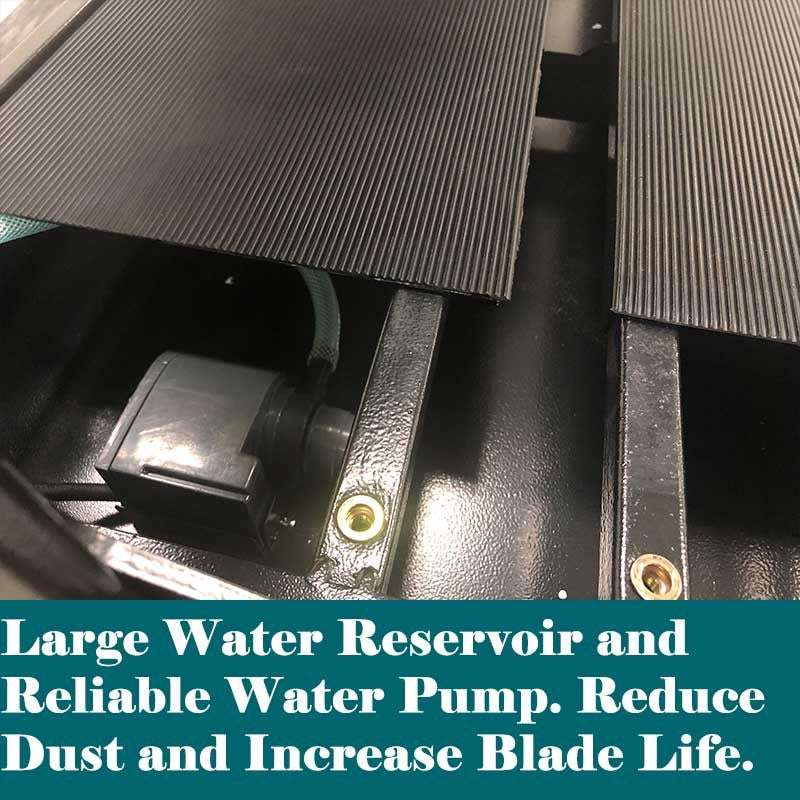

- Wet Cutting System: Water pump cools the blade and helps reduce dust and chipping.

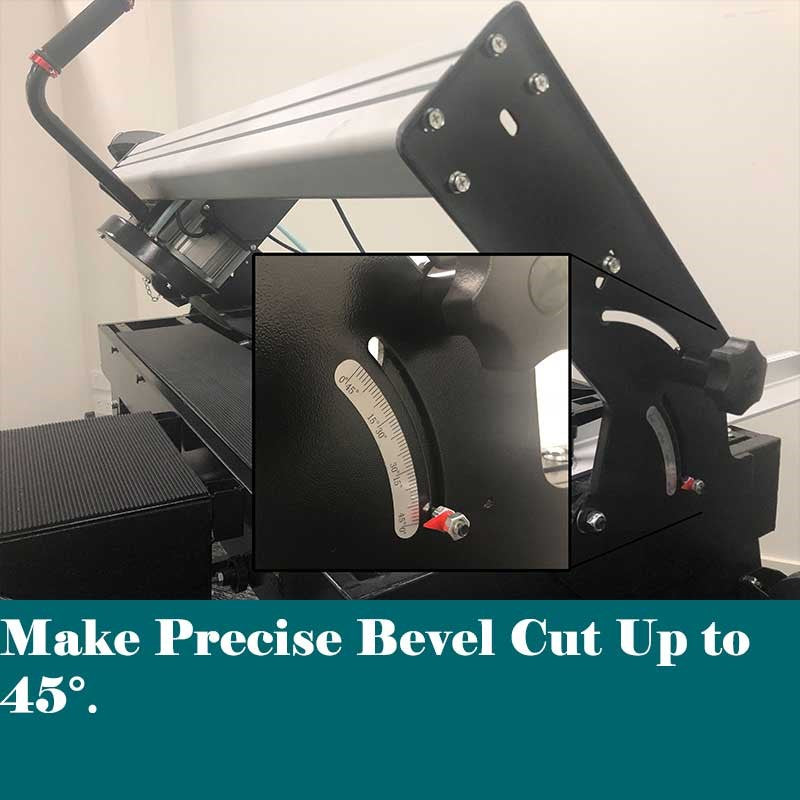

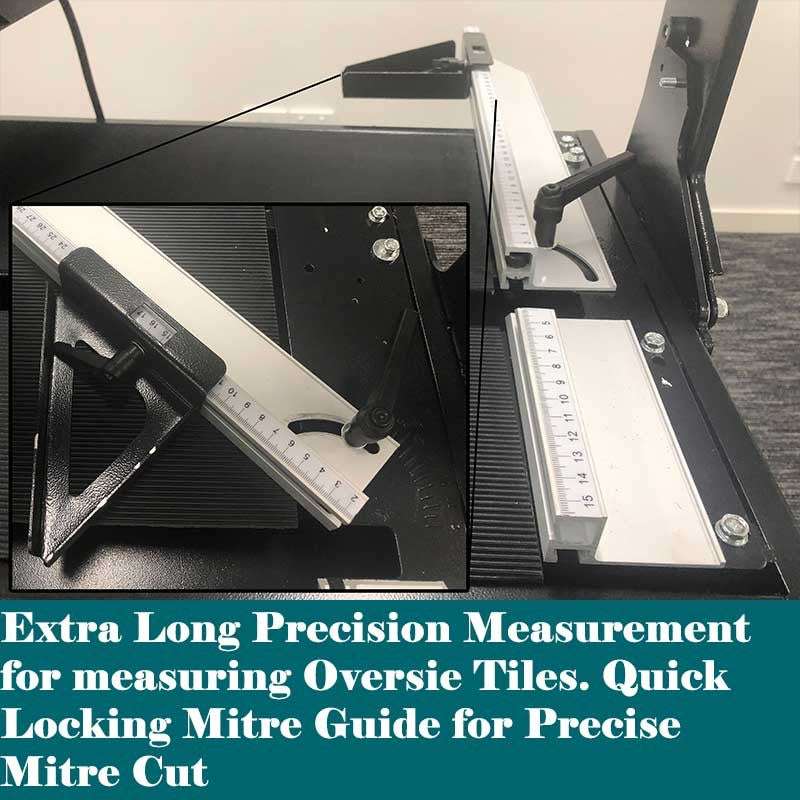

- 45° Bevel Cutting: Adjustable cutting head supports straight and angled cuts.

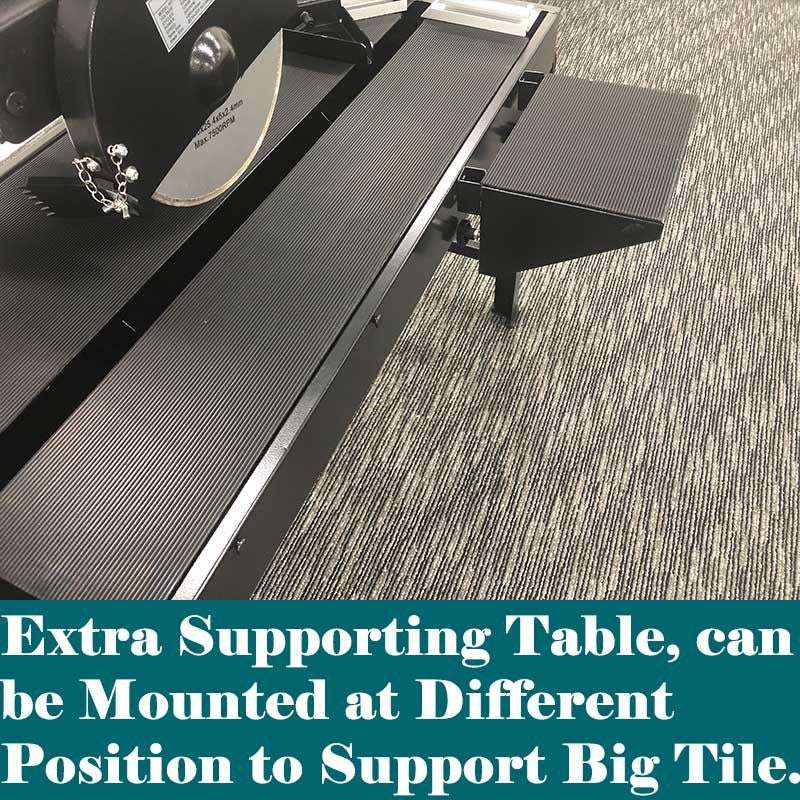

- Additional Support Table: Helps support larger tiles and workpieces.

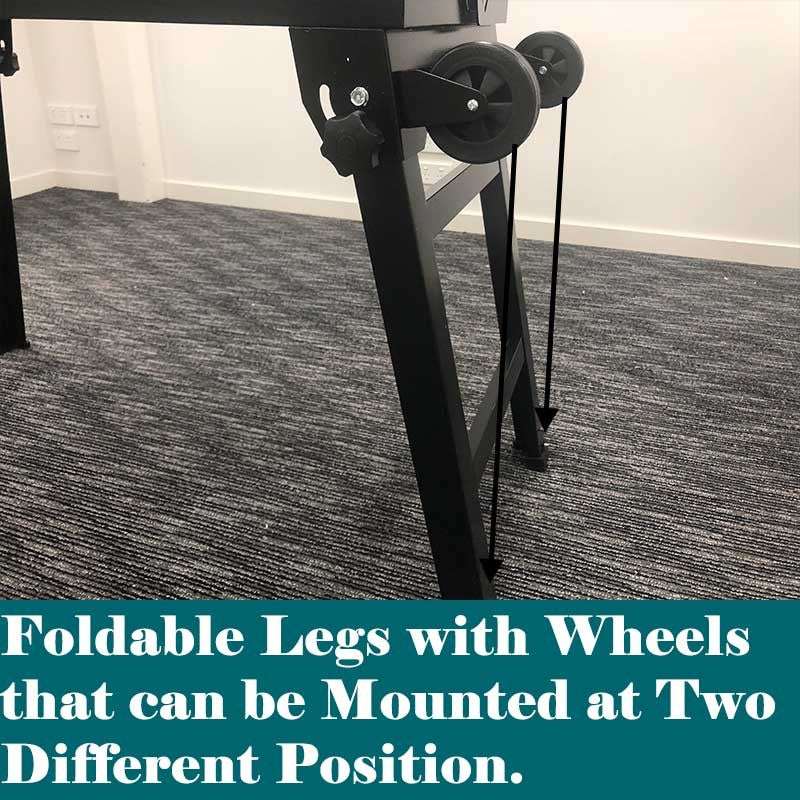

- Foldable Stand: Simplifies transport, storage and job-site setup.
Need a longer cutting length? Consider the BM660 920mm Wet Tile Saw with Laser Guide.
Need to cut tiles over one metre long? See the BM683 1250mm Wet Tile Saw.
Specifications
| Model | BM688 |
| Motor Power | 1200W / 220–240V / 10A |
| Blade Size | 230 × 25.4 × 2.4mm |
| Max. Cutting Length | 720mm |
| Max. Cutting Depth at 90° | 60mm |
| Max. Cutting Depth at 45° | 48mm |
| Table Size | 780 × 390mm |
| Cutting System | Wet Cutting with Water Pump |
| Guide System | Ball-Bearing Rail |
| Product Size | 1100 × 605 × 1240mm |
| Net Weight | 52kg |
| Packing Size | 1100 × 605 × 560mm |
| Gross Weight | 54kg |
Frequently Asked Questions
1. What is the maximum cutting length?
The BM688 provides a maximum straight cutting length of 720mm.
2. How deep can it cut?
The BM688 cuts up to 60mm deep at 90° and 48mm at 45°.
3. Does it include a diamond blade?
Yes. A 230mm continuous-rim wet diamond blade is included.
4. Does it have a wet cutting system?
Yes. A water pump supplies cooling water to the blade to help reduce heat, dust and tile chipping.
5. BM688 or BM660?
Choose the BM688 when greater cutting depth is important. The BM660 provides a longer 920mm cutting length and built-in laser guide.
6. Can it make bevel cuts?
Yes. The cutting system supports angled cutting up to 45°.
7. Is the stand foldable?
Yes. The stand folds for easier transport and storage.
8. Is it suitable for thicker tiles?
Yes. Its maximum 60mm cutting depth is one of the main advantages of the BM688.
