Description
Important: After replacing a new pinion, test if the rack and pinion are engaging properly before use the machine.
Here is how: manually pull the rack out a bit and use the handle to engage the rack and pinion, then press the rack further down, there should be no or very little gap between the rack and pinion.

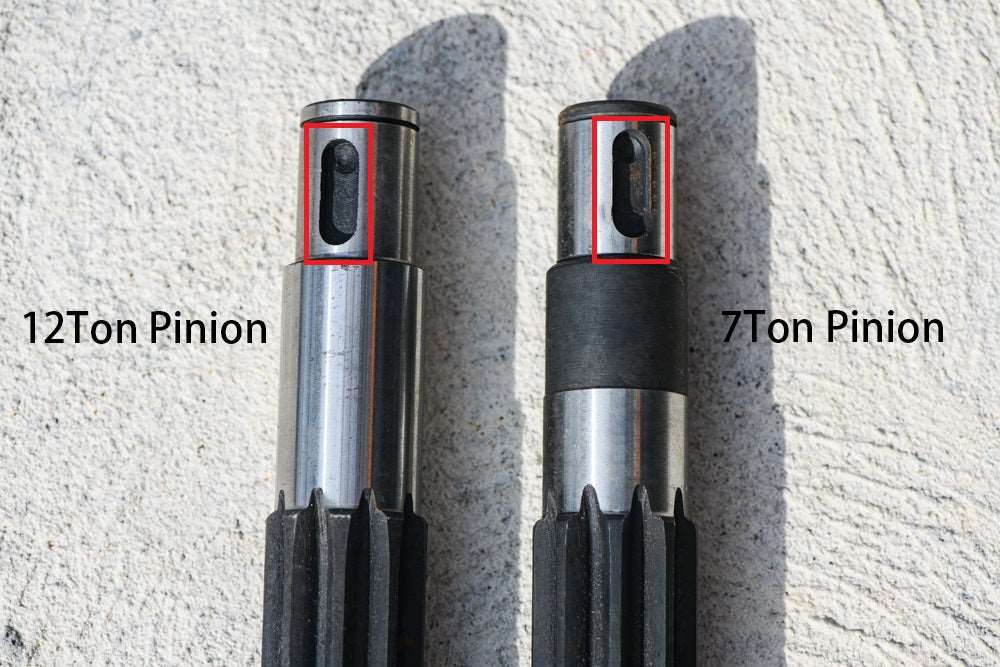

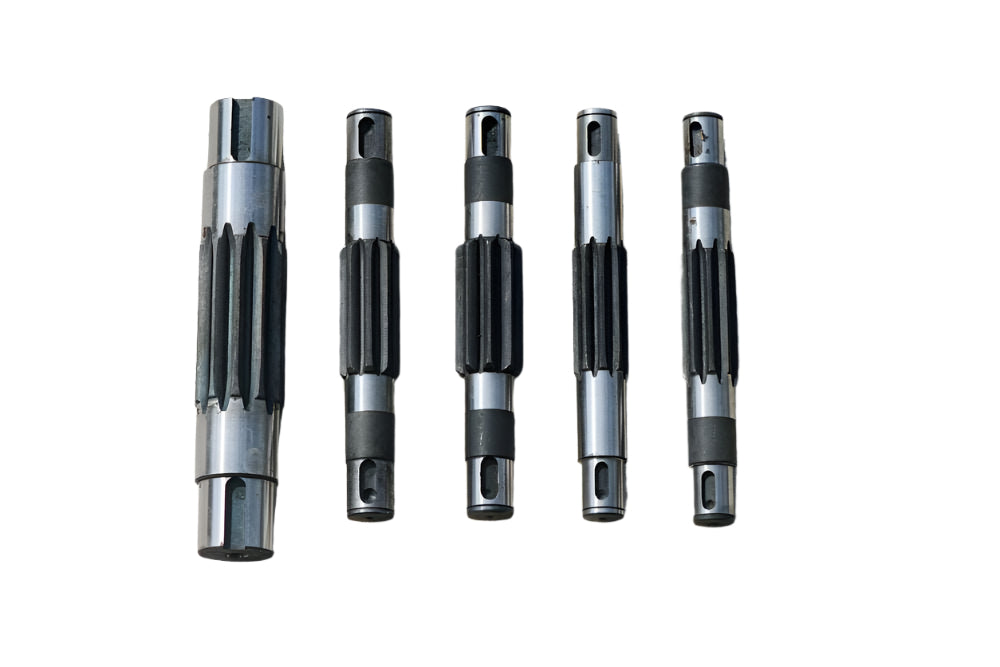

Pinion for Forestwest Kinetic Log Splitter, please refer to images for detail.

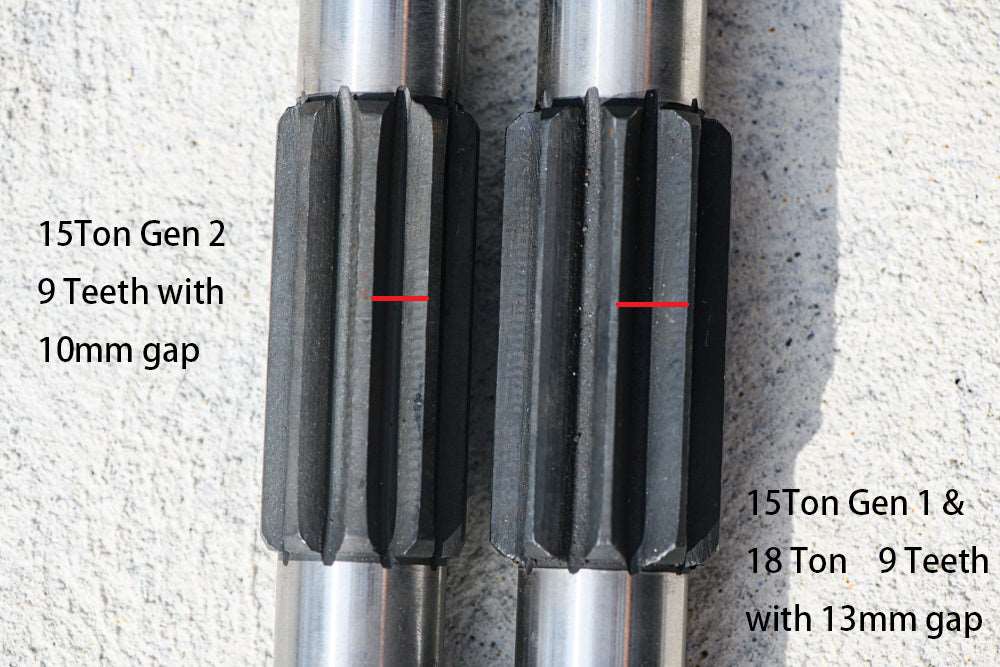

How to choose 15 & 18 Ton Pinion Gen 1 and Gen 2:
Please measure your current rack and compare to the following specification to choose the right pinion
Rack and Pinion must in matching generation, mixture use of those parts could damage the machine.
| 15&18 Ton Rack Gen 1 | 15&18 Ton Rack Gen 2 | |
|
Overall Length |
630mm | 630mm |
|
Bolt Hole to Teeth |
165mm | 160mm |
|
Spring Hole to Teeth |
14mm | 9mm |
|
Suitable Pinion |
15&18 Ton Pinion Gen 1 | 15&18 Ton Pinion Gen 2 |
Above log splitter parts are only suitable for Forestwest Kinetic Log Splitter
Contact Forestwest for any other log splitter parts or other inquiry.
