Features
Strong, dependable performance with simple key start for effortless operation on site.

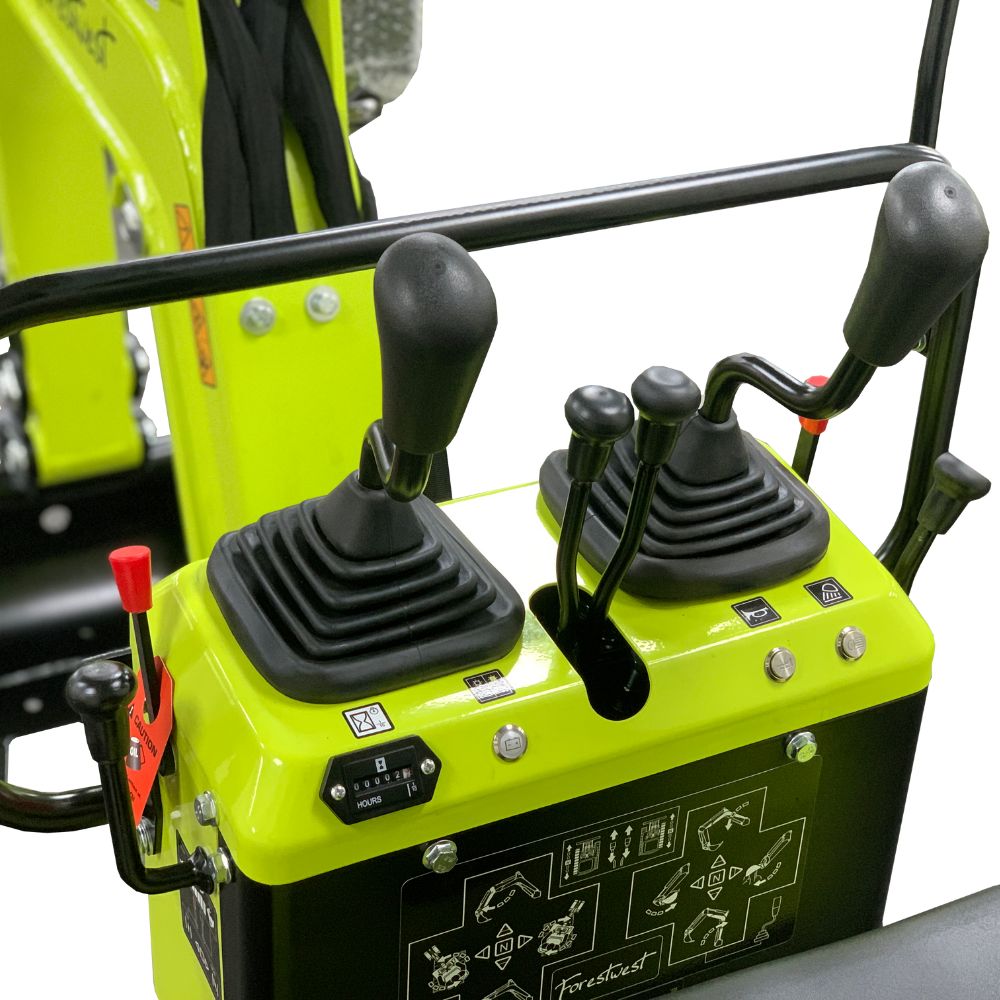

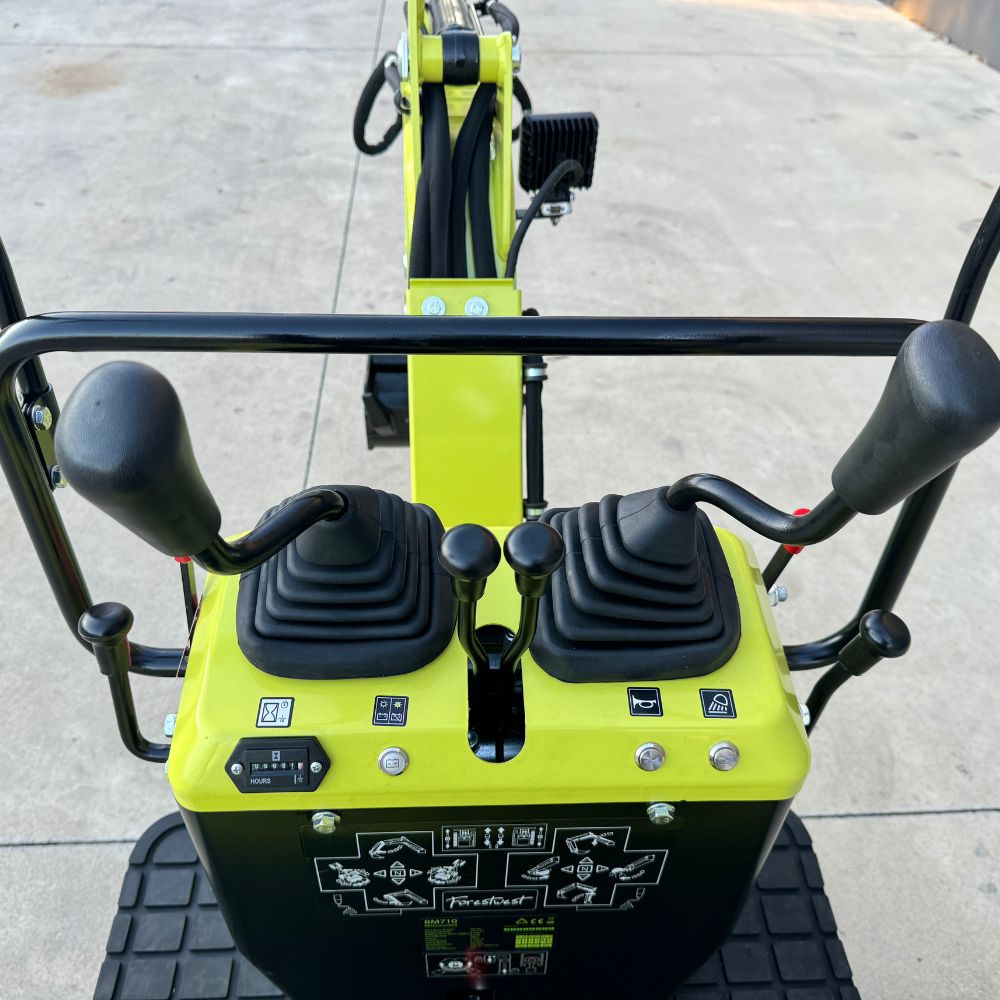

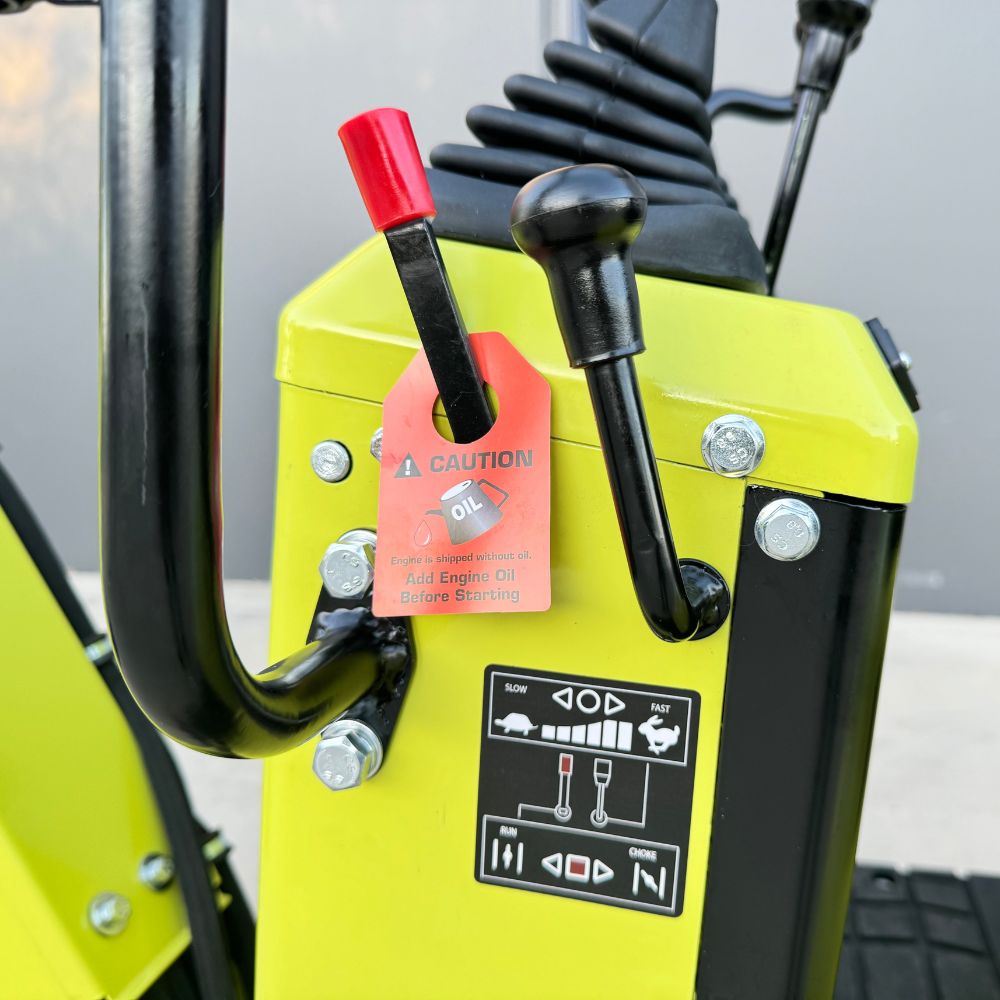

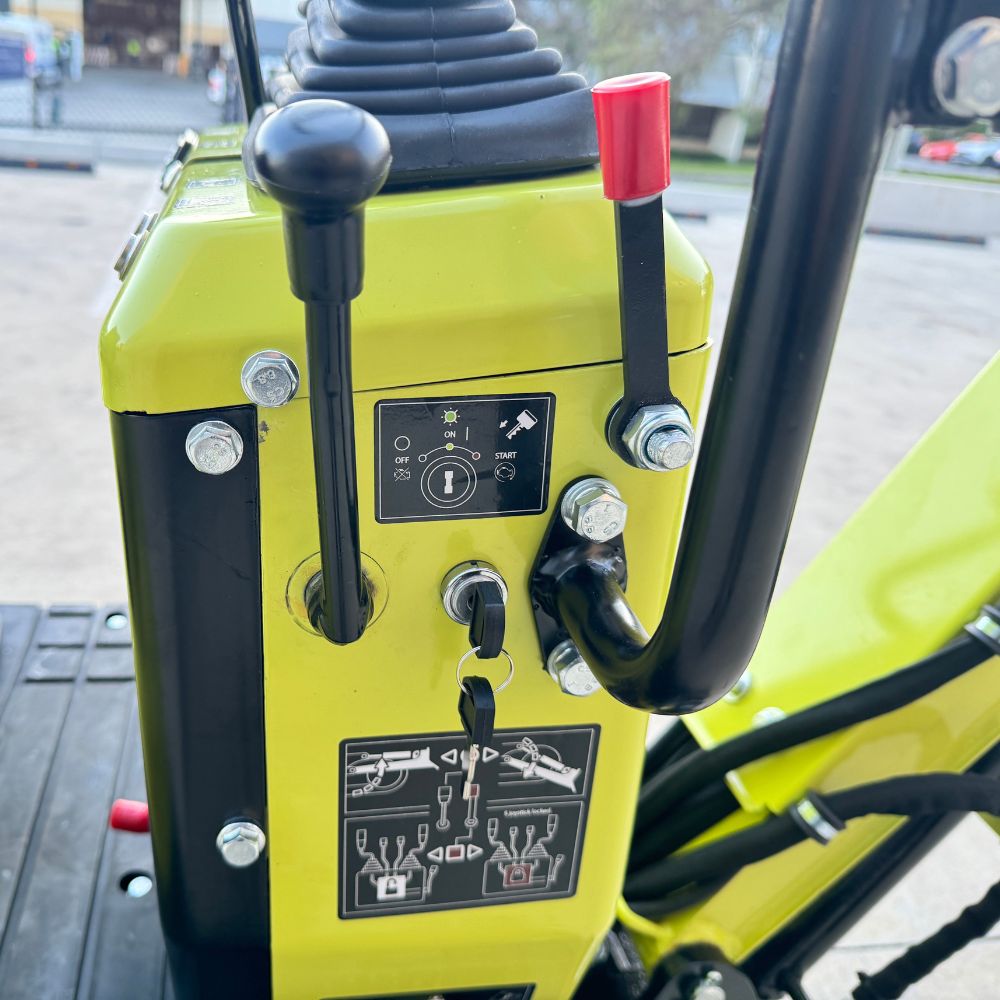

Ergonomic control levers for smooth, precise operation, with an integrated hour meter for easy maintenance tracking.

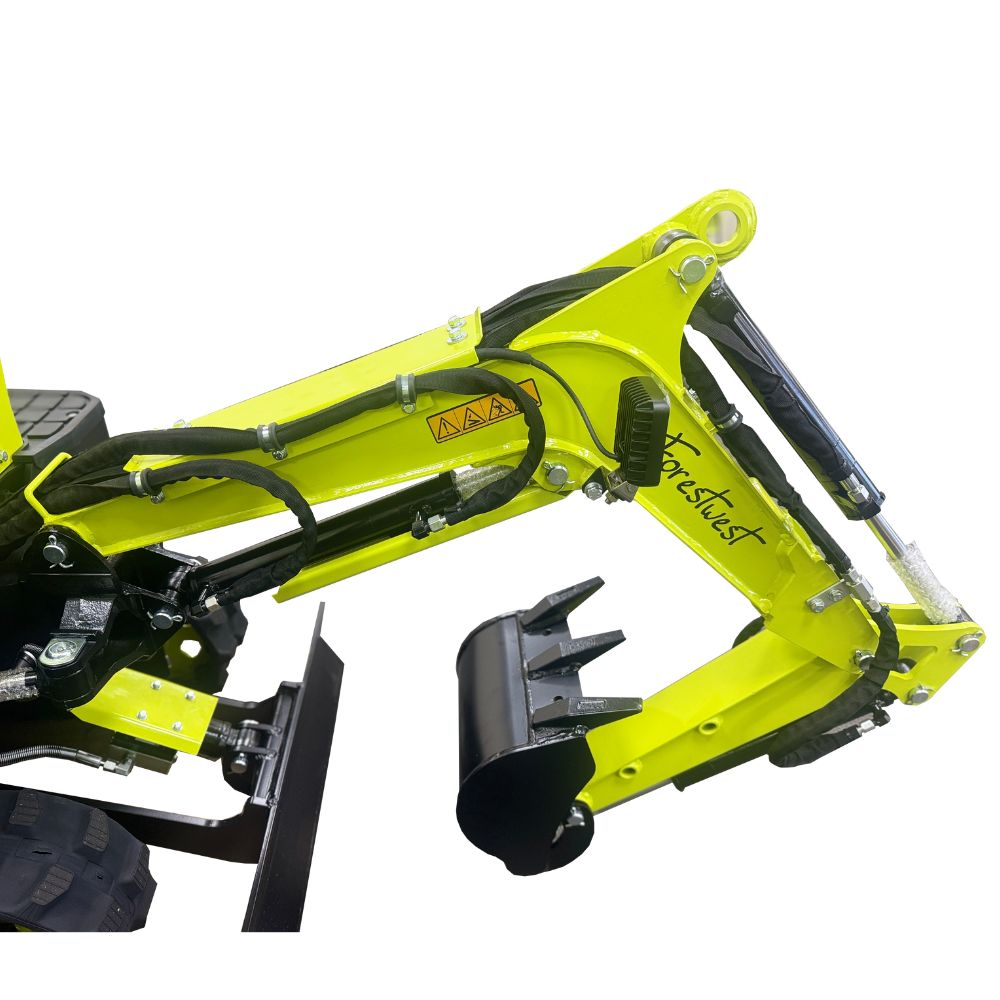

Designed for durability and reliability, with enclosed hose routing to protect against damage on tough job sites.

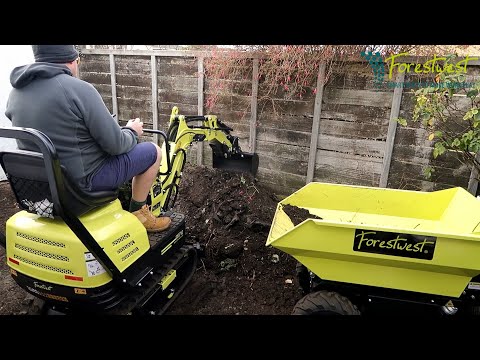

Video
Description

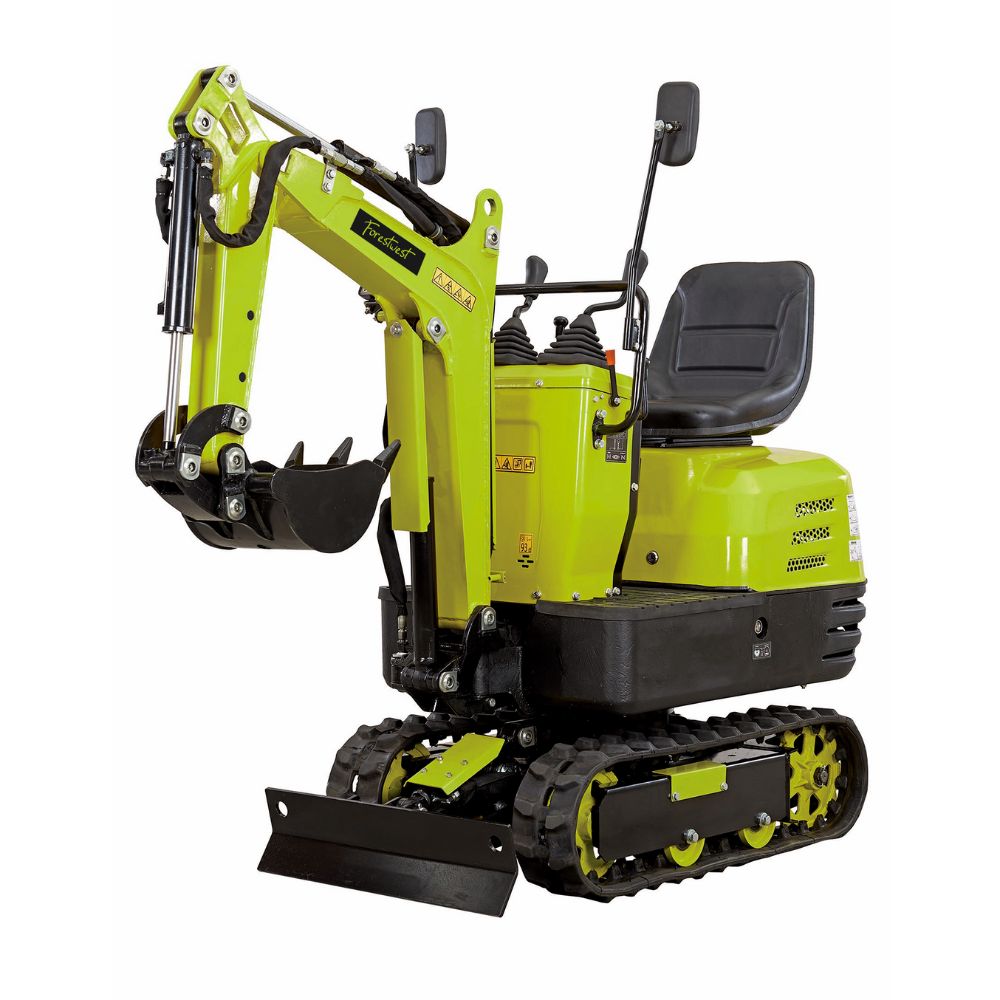

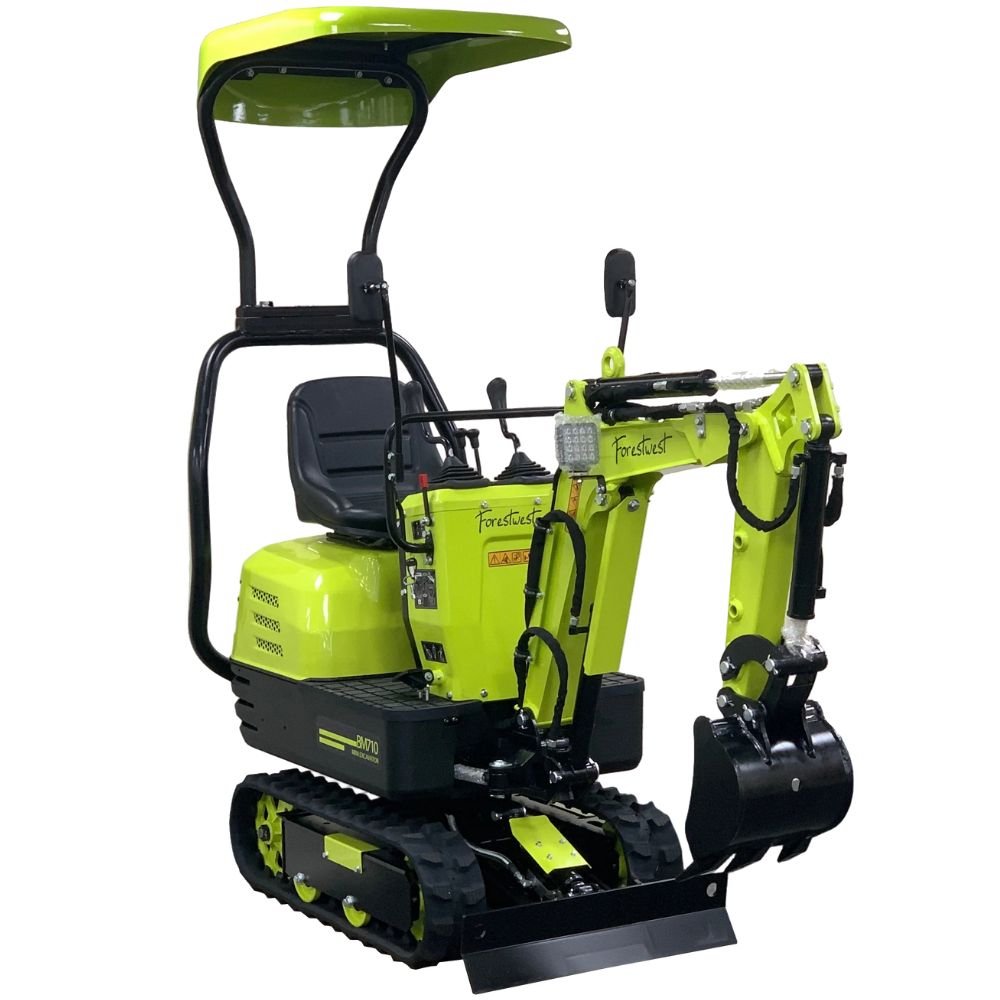

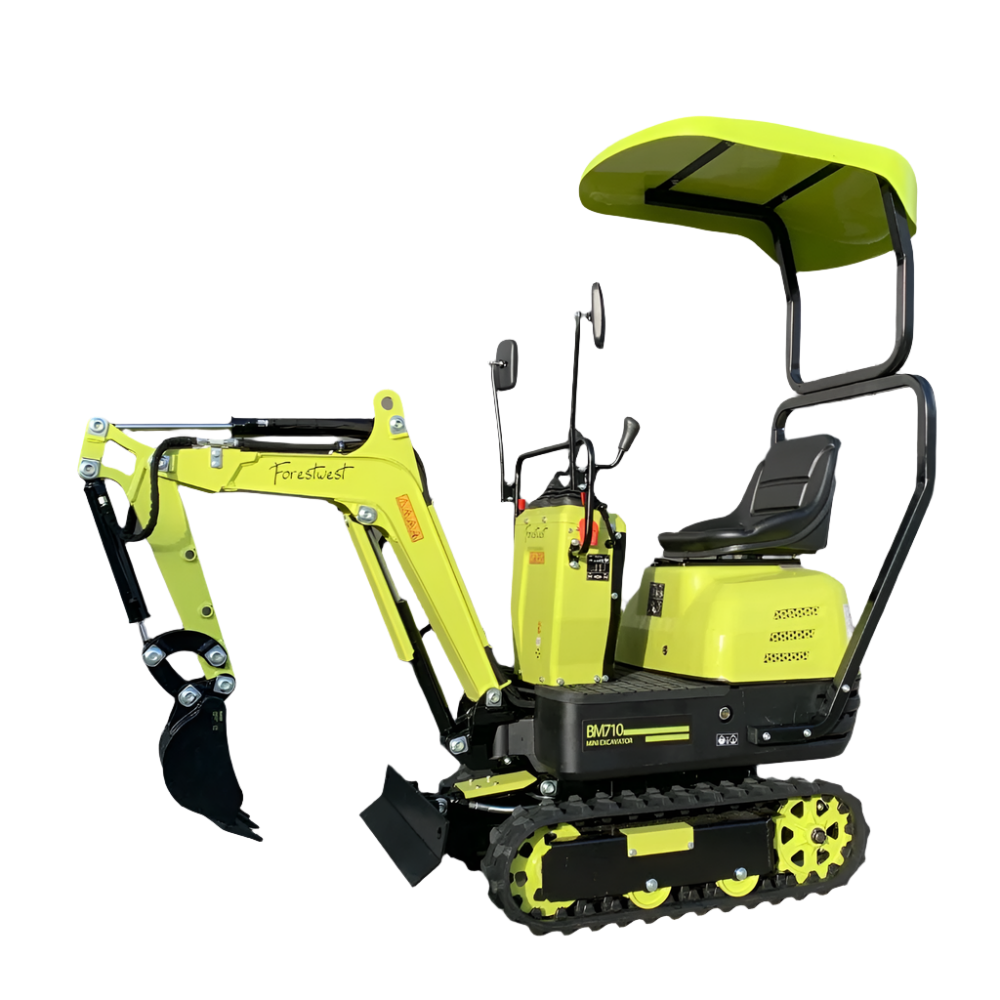

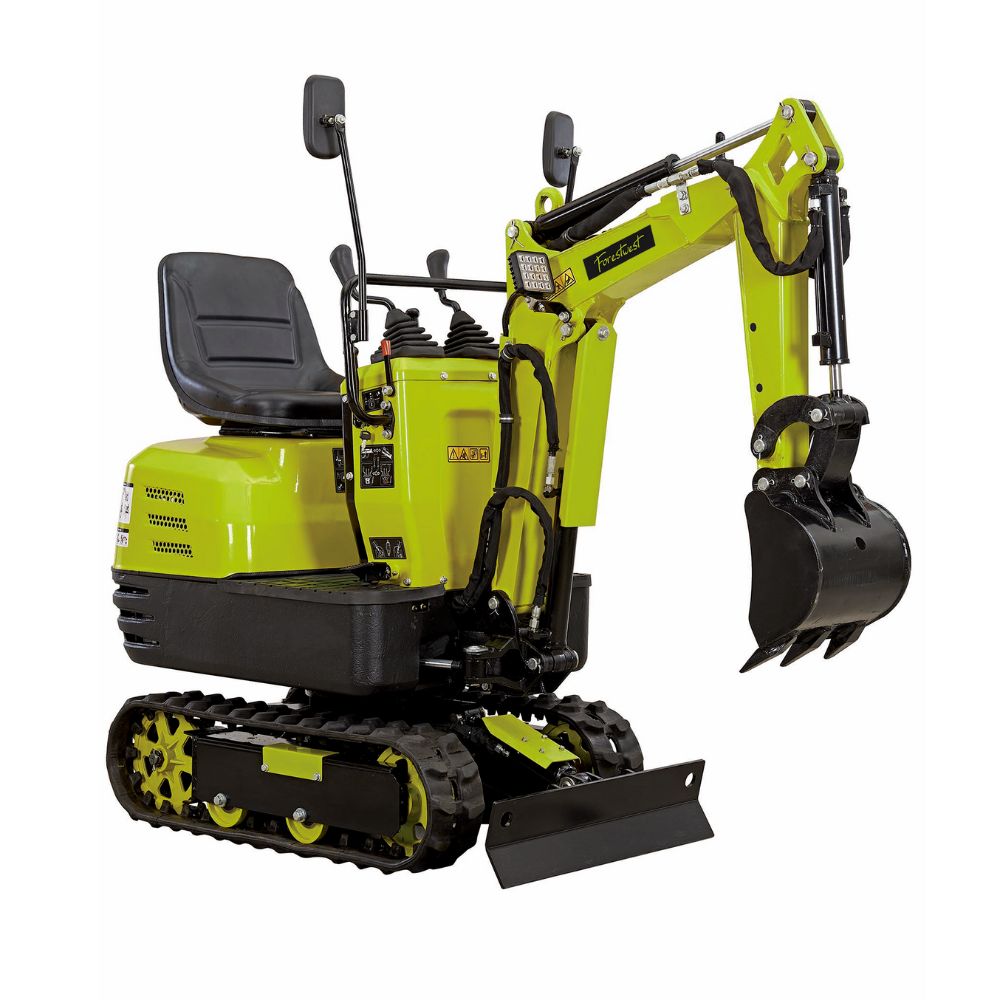

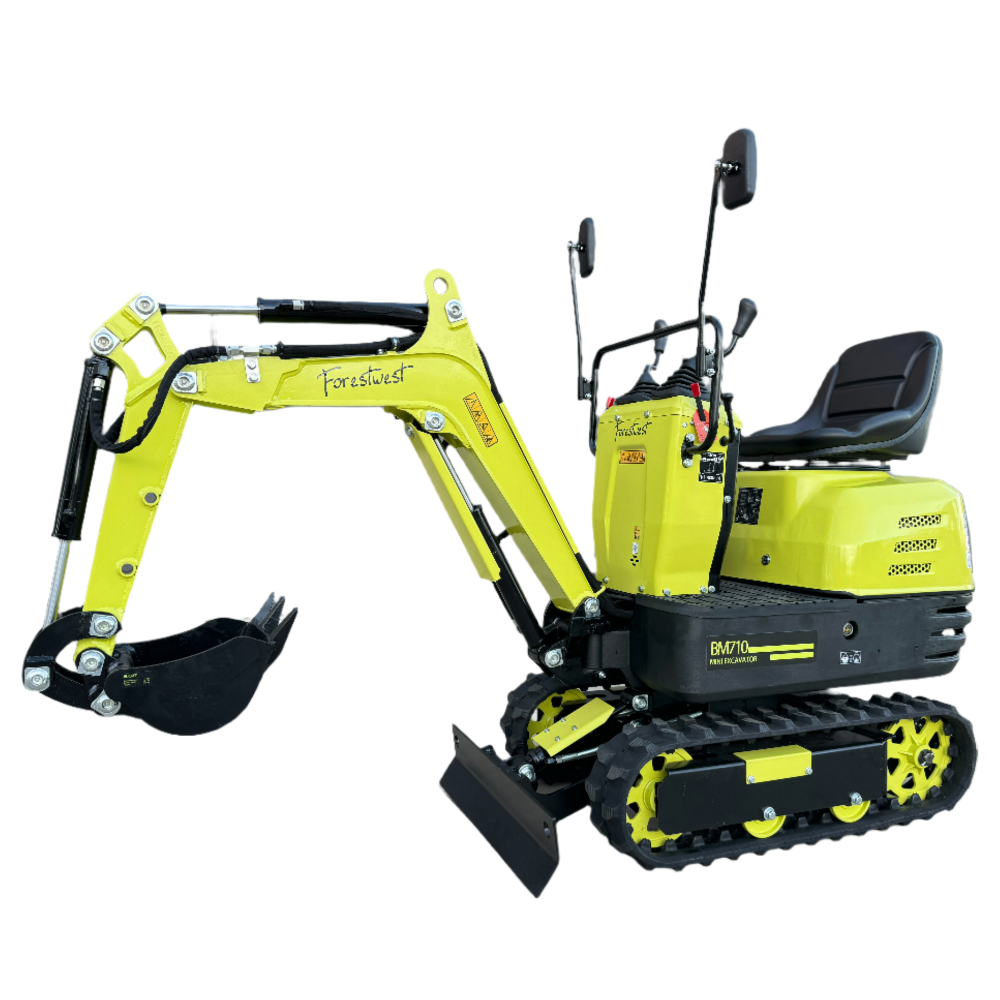

The Forestwest BM710 0.6T Mini Excavator is an ultra-compact petrol excavator designed for narrow-access excavation, landscaping, trenching, drainage and property maintenance where larger excavators may be difficult to use.
With an operating weight of only 562kg and a compact 690mm machine width, the BM710 can access narrow gates, side passages and confined residential work areas. Despite its compact size, it provides a maximum digging depth of 1200mm, maximum digging radius of 2330mm and bucket digging force of up to 8.8kN.
The 306cc 10HP petrol engine with key start powers a 17.5MPa hydraulic system, while the boom swings 70° left and 70° right to help operators work alongside walls, fences and other obstacles with less machine repositioning. Zero tail swing further improves manoeuvrability in confined spaces.
The BM710 is supplied with six included attachments — canopy, ripper, thumb, claw, grading bucket and digging bucket — providing a versatile package for digging, grading, ripping and material-handling applications.
Key Features & Benefits

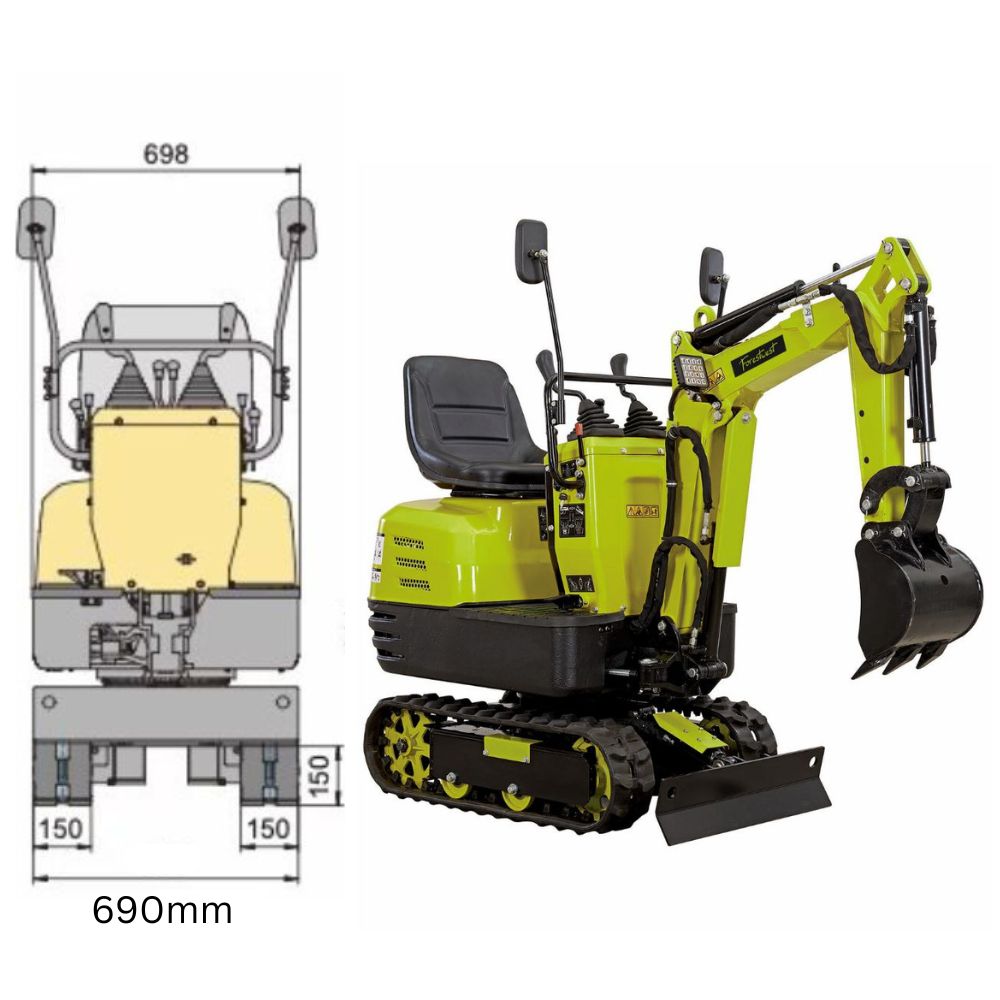

- 690mm Narrow-Access Width: Compact enough for many residential gates, pathways, side access areas and confined worksites.
- 0.6T Compact Excavator: 562kg operating weight provides useful excavation capability in a lightweight and easy-to-transport package.
- 1200mm Maximum Digging Depth: Suitable for landscaping, drainage, trenching, garden construction and property-maintenance work.
- 2330mm Maximum Digging Radius: Provides useful reach while reducing the need to continually reposition the machine.
- 8.8kN Bucket Digging Force: Provides up to approximately 815kgf of specified bucket digging force.

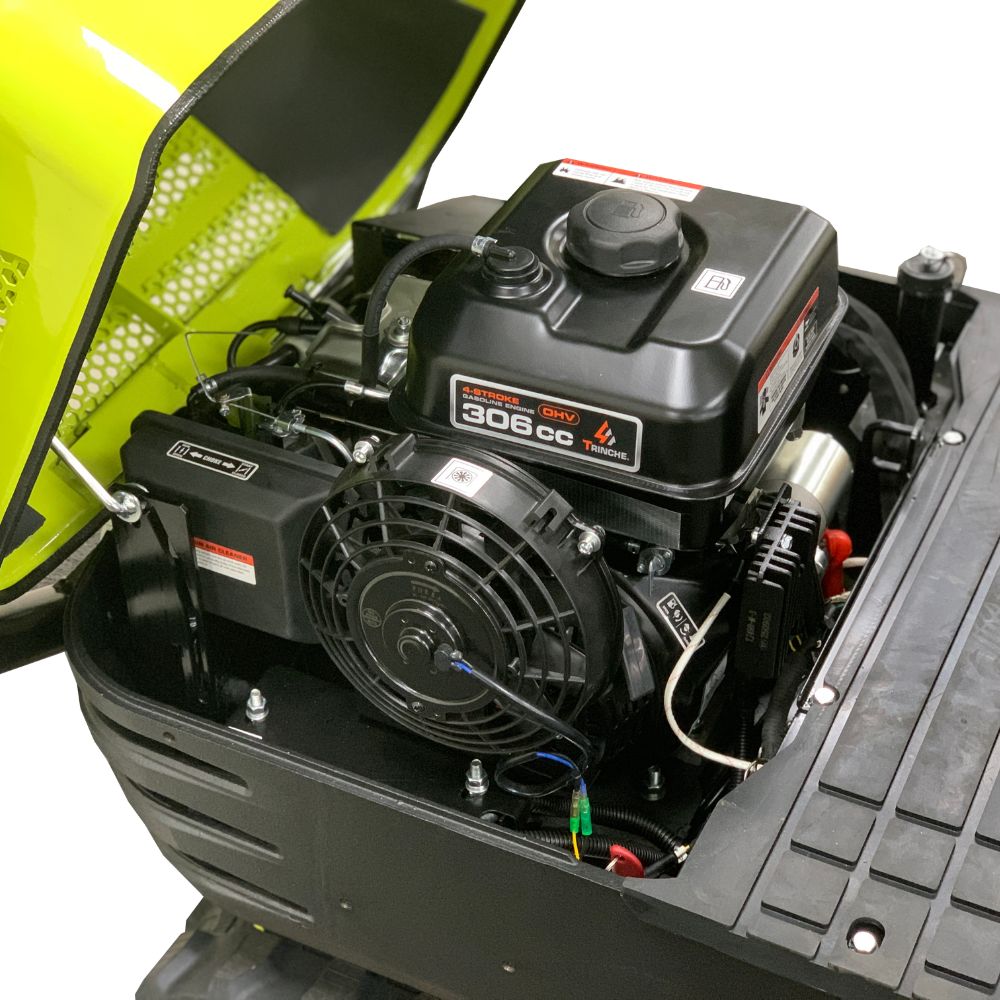

- 306cc 10HP Petrol Engine: Petrol-powered performance with convenient key-type electric starting.

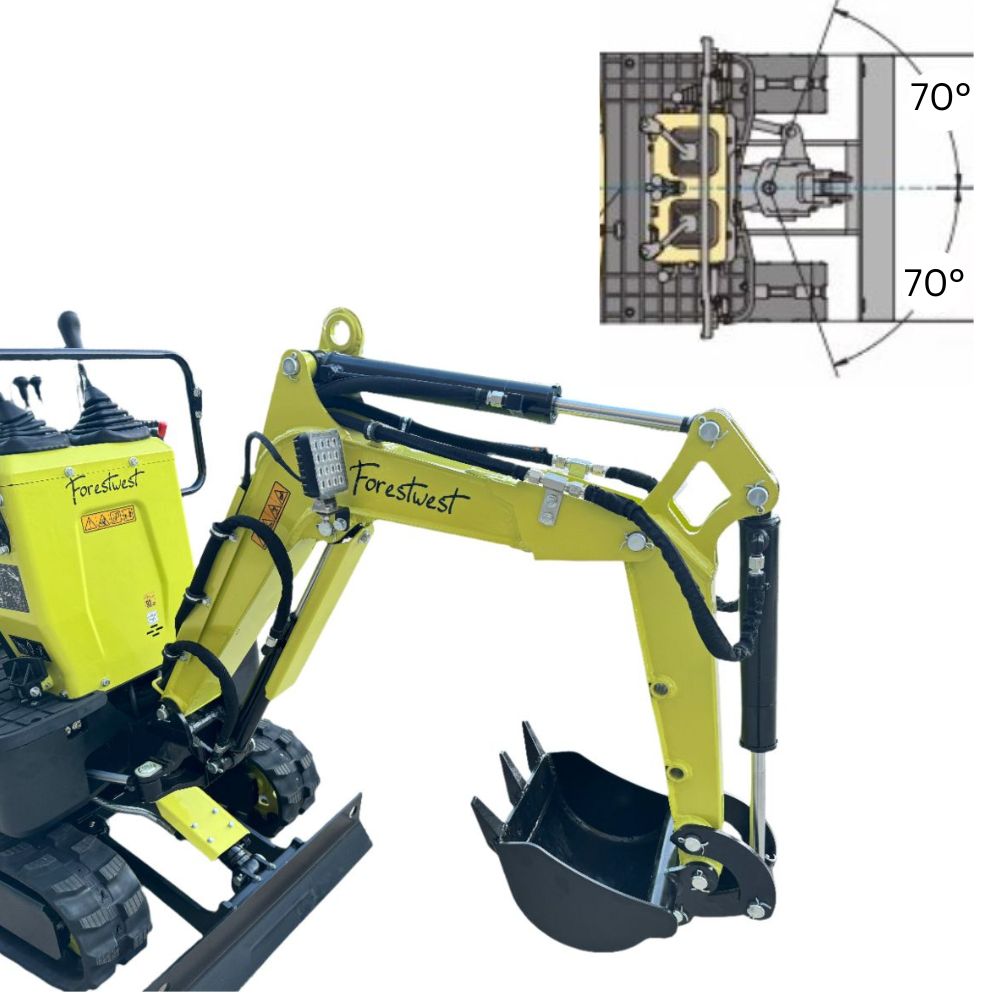

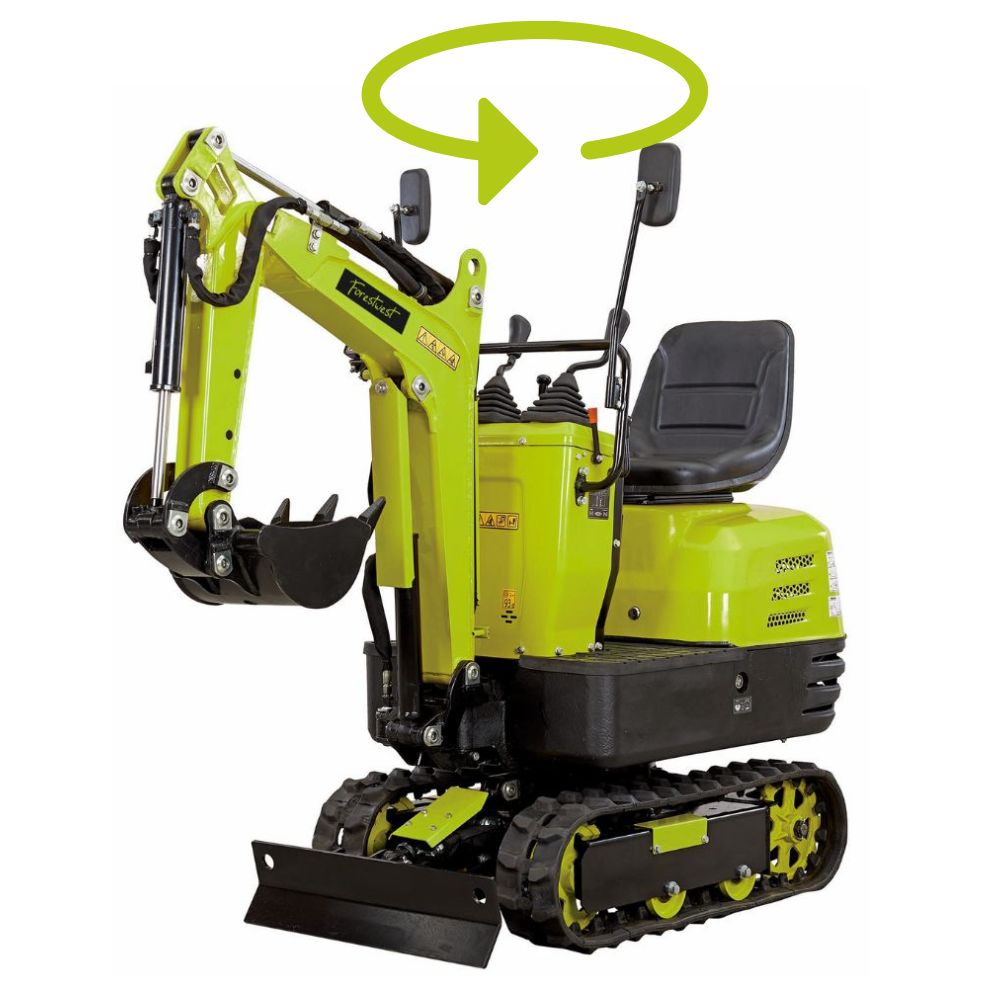

- 140° Total Boom Swing: 70° left and 70° right boom movement allows excavation alongside walls, fences and obstacles.
- Zero Tail Swing: Helps the operator work in confined areas without significant rear overhang during upper-structure rotation.
- 17.5MPa Hydraulic System: Dual 9L/min hydraulic pump circuits provide power for boom, arm, bucket and attachment operation.

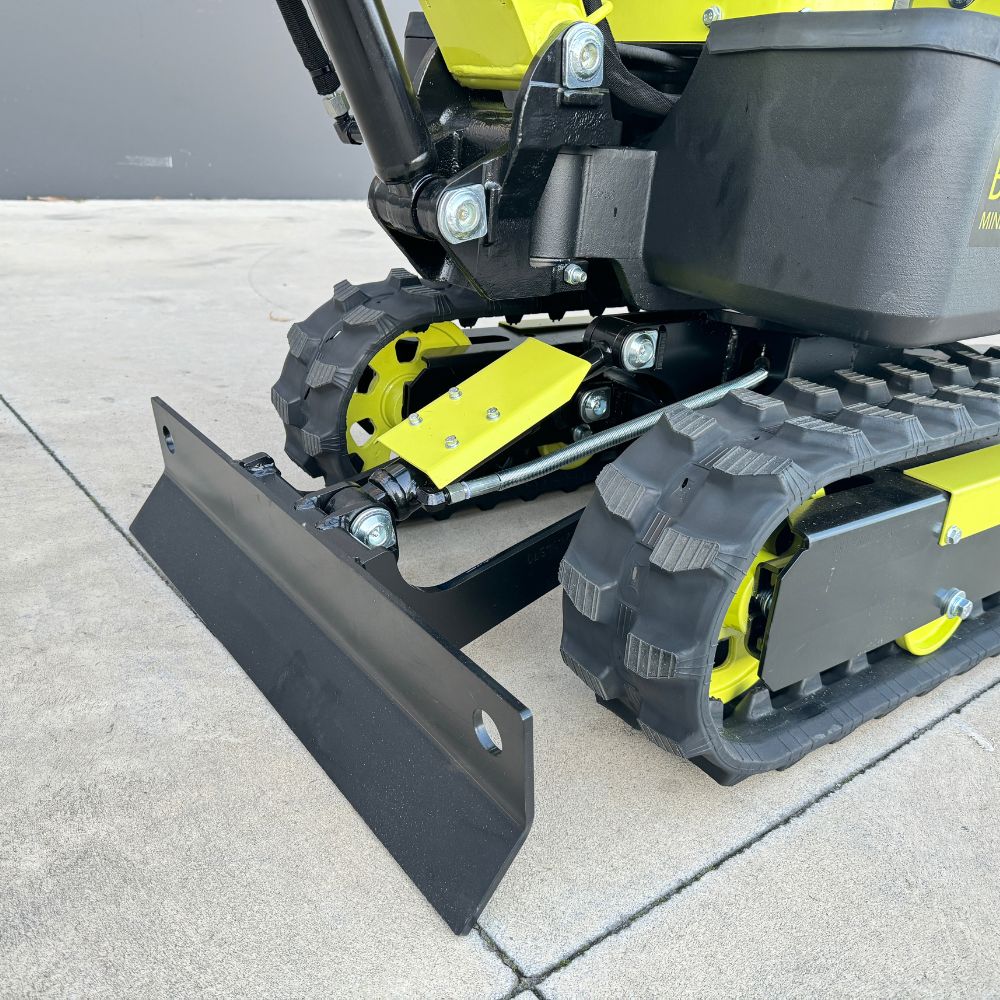

- Rubber Crawler Tracks: Provide traction while helping reduce surface damage compared with steel tracks.
- 15° Rated Gradeability: Designed for operation on suitable sloping terrain within the manufacturer's operating limits.
- Six Attachments Included: Supplied with canopy, ripper, thumb, claw, grading bucket and digging bucket for greater versatility.
- Hour Meter & Working Light: Helps track service intervals and provides additional visibility during operation.

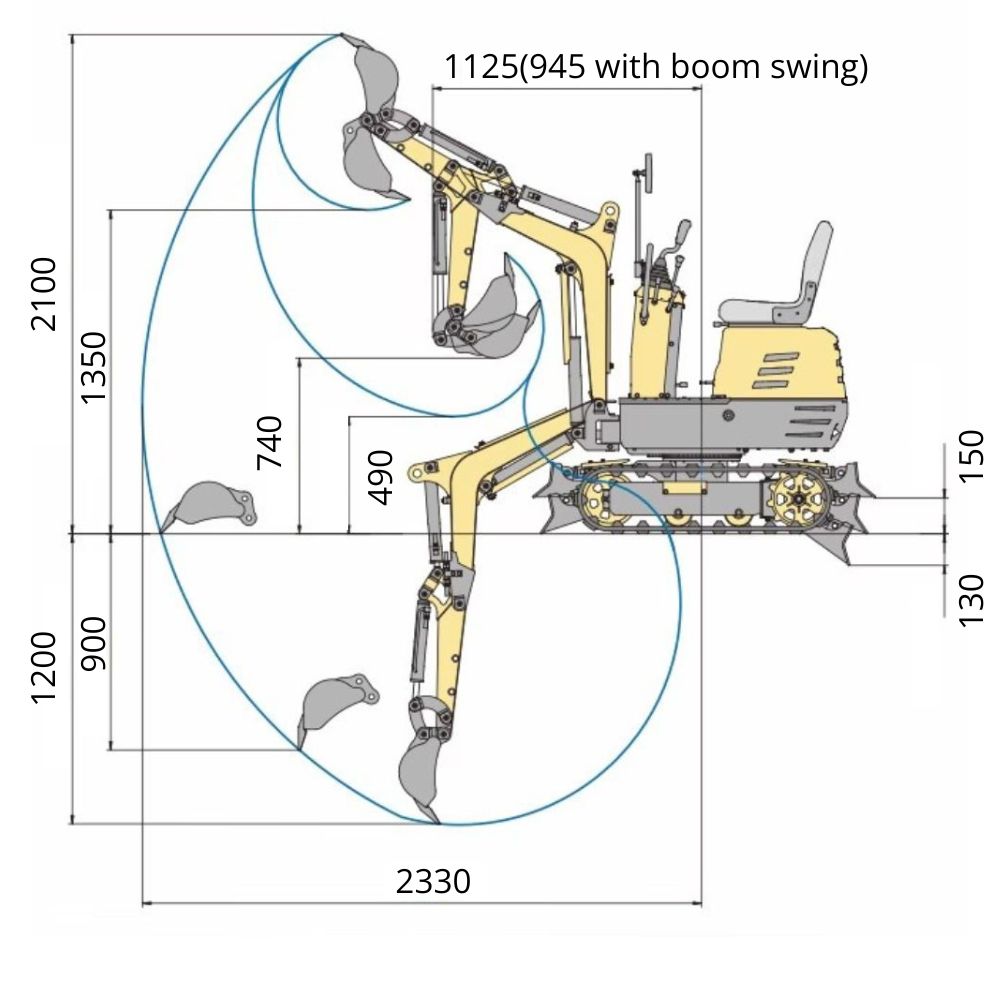

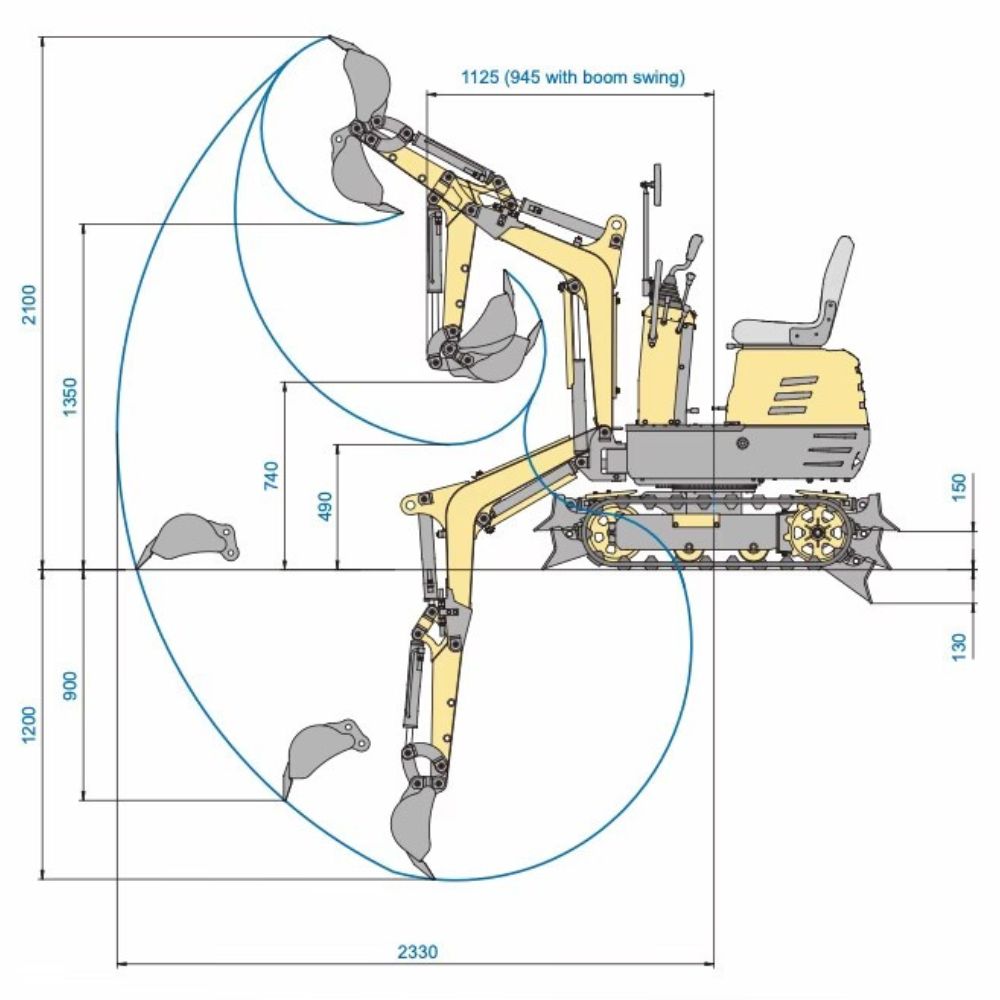

Working Range
| Max. Digging Depth | 1200mm |
| Max. Digging Height | 2100mm |
| Max. Dumping Height | 1350mm |
| Max. Digging Radius | 2330mm |
| Max. Vertical Digging Depth | 900mm |
| Boom Swing | 70° Left / 70° Right |

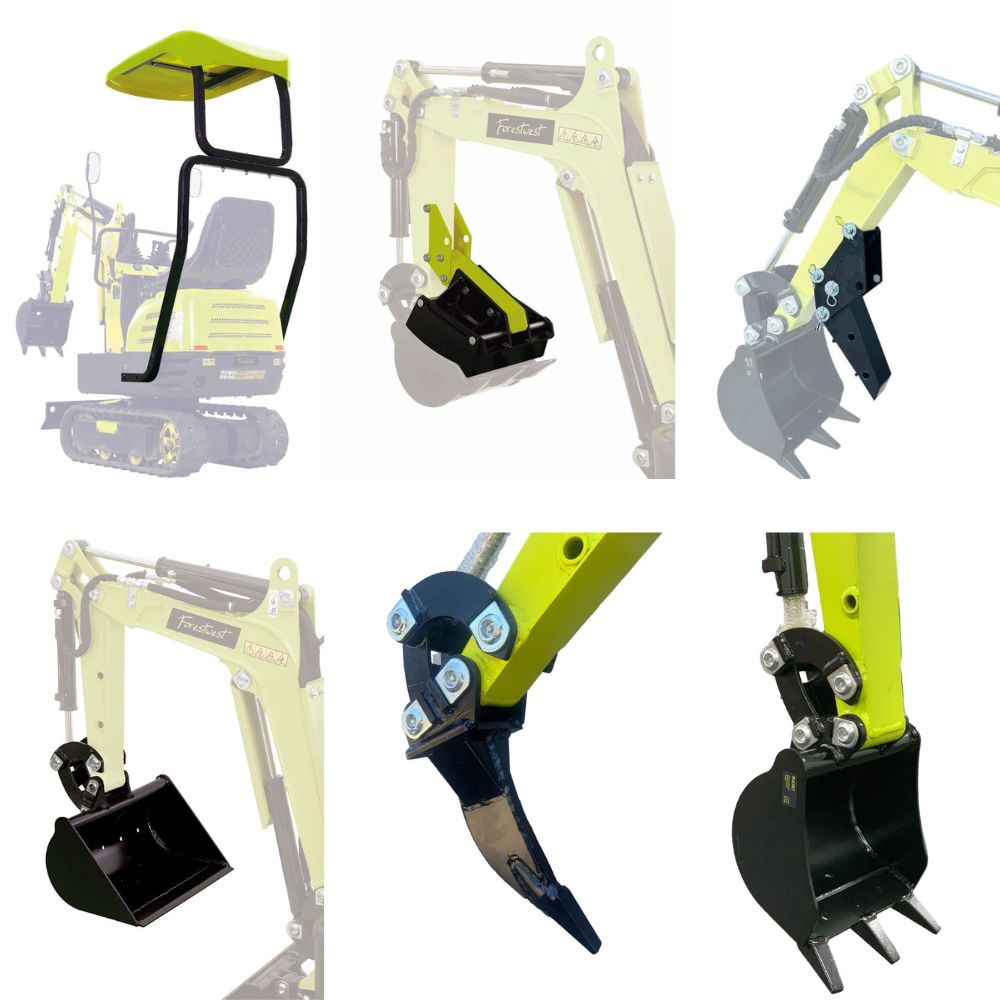

Included Attachments
- Digging Bucket

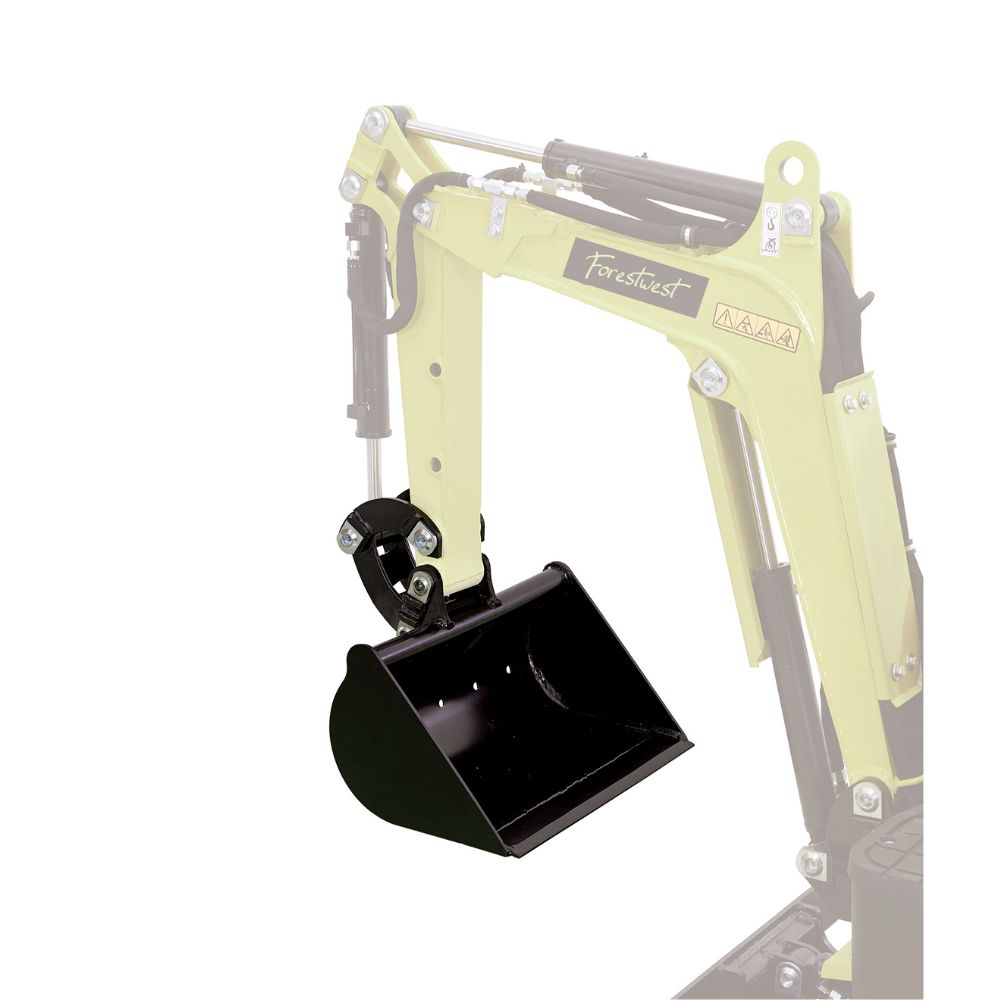

- Grading Bucket

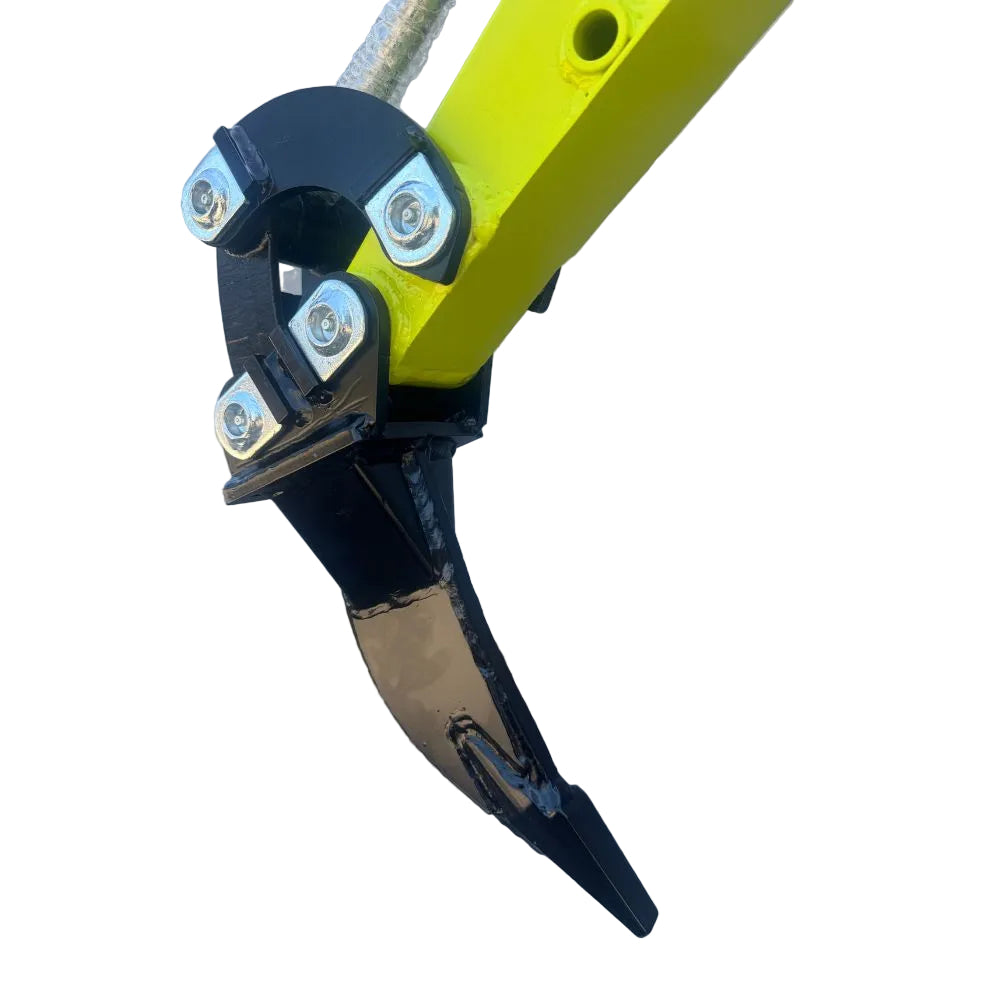

- Ripper

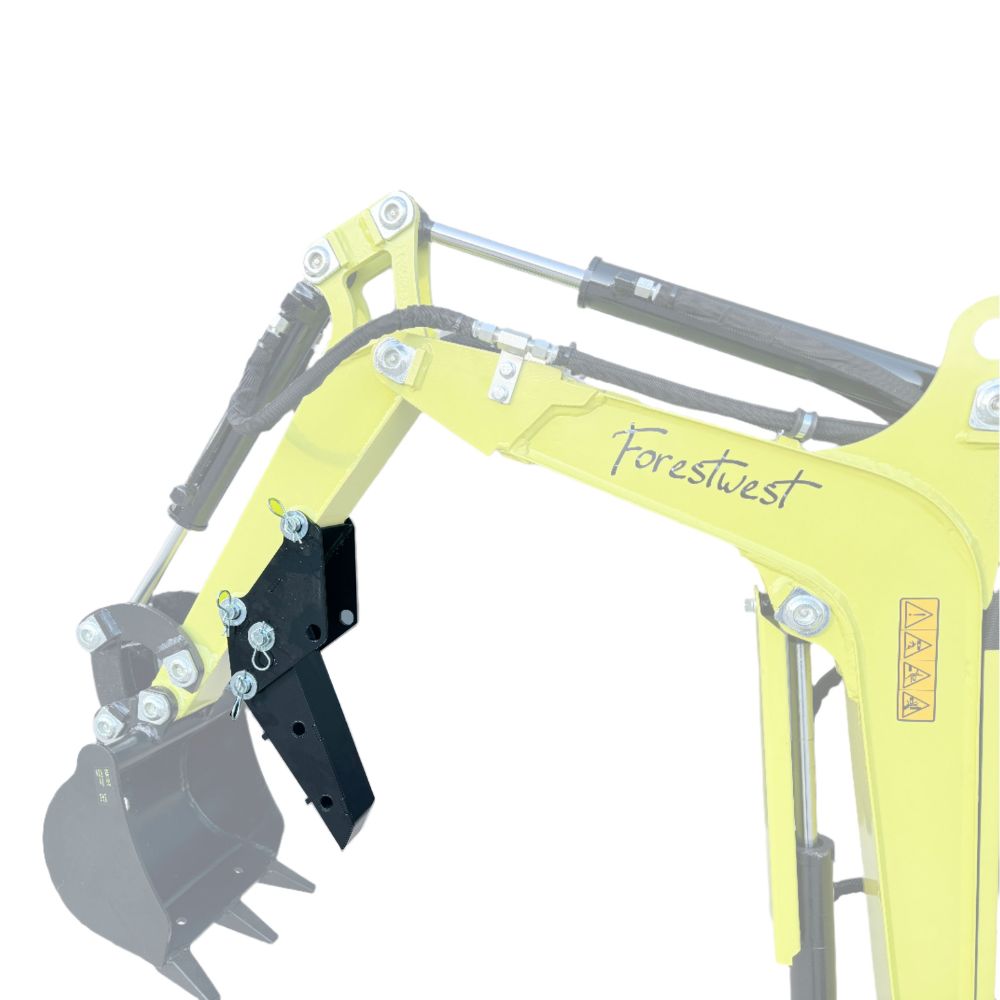

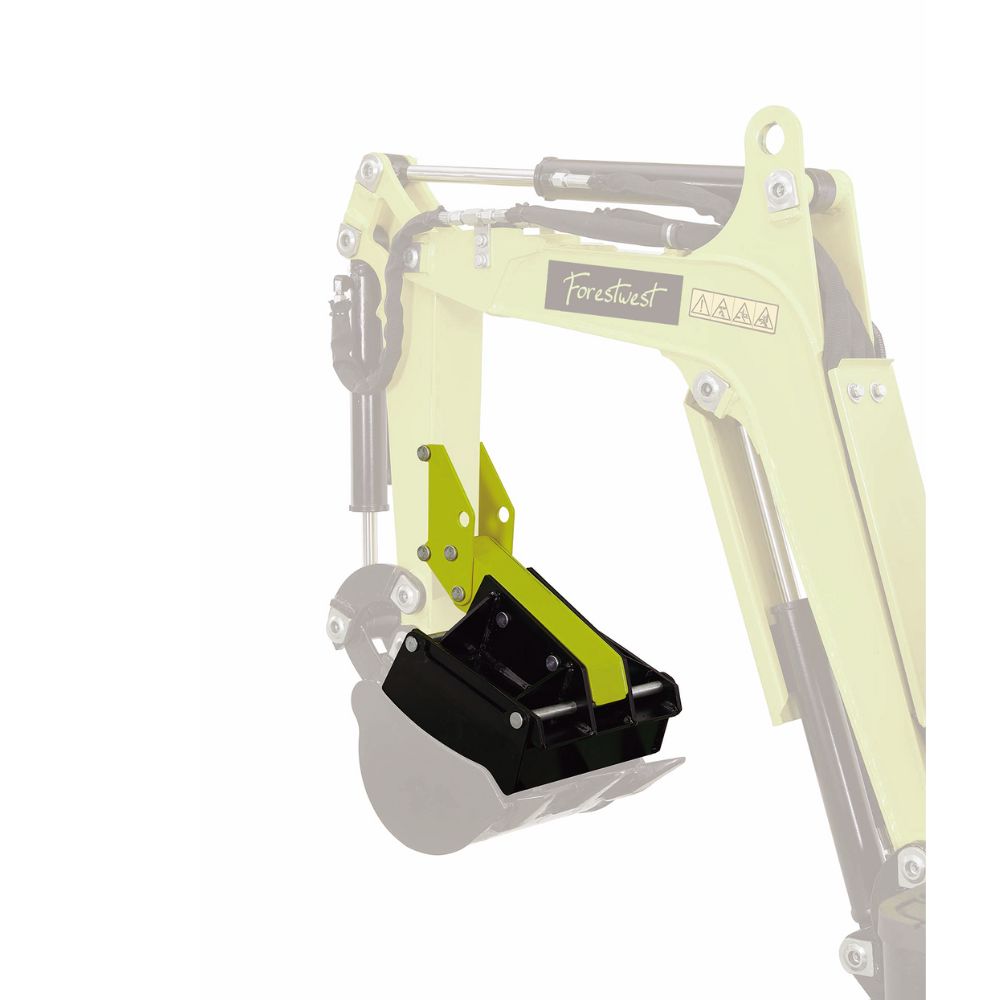

- Thumb
- Claw

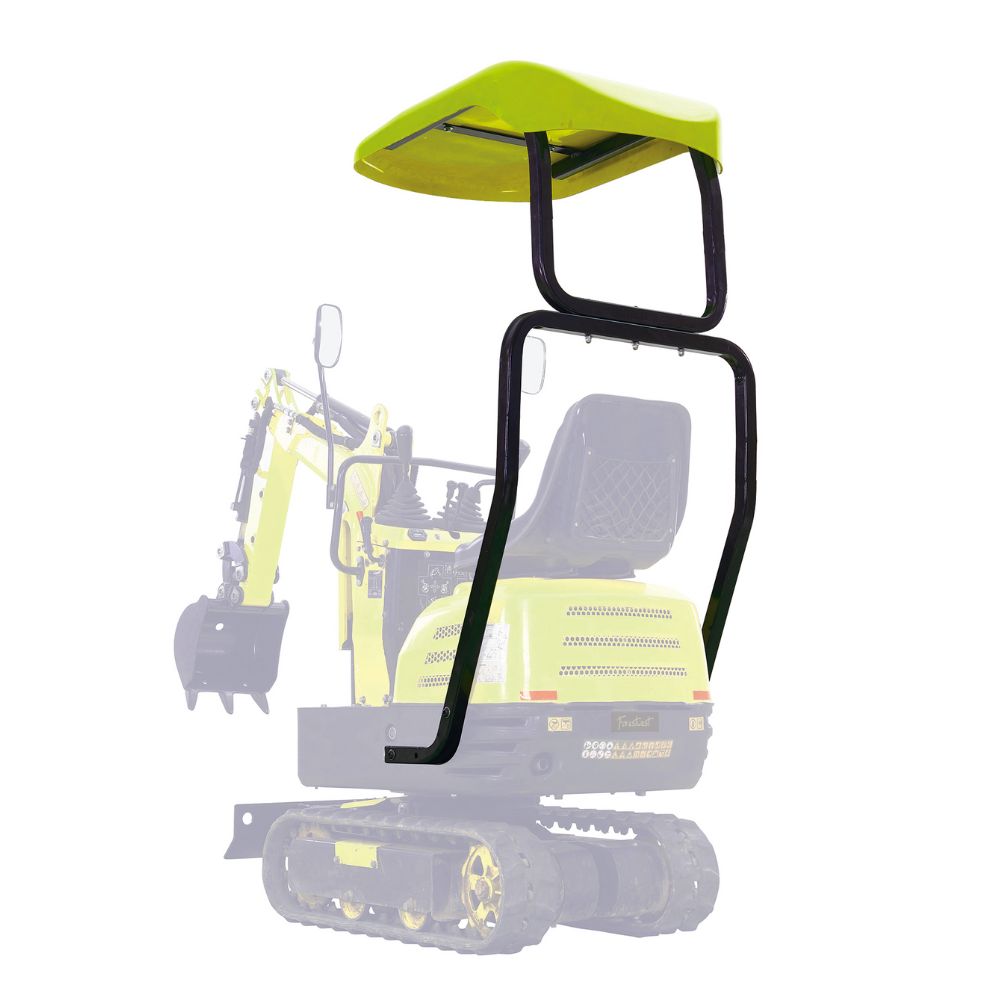

- Canopy
Frequently Asked Questions
1. How wide is the BM710 mini excavator?
The BM710 has a narrow 690mm machine width, making it suitable for many residential gates, pathways, side access areas and confined worksites.
2. What is the maximum digging depth?
The BM710 has a maximum digging depth of 1200mm.
3. What is the maximum digging reach?
The maximum specified digging radius is 2330mm.
4. How much does the BM710 weigh?
The operating weight is approximately 562kg.
5. What is the bucket digging force?
The operator's manual specifies a bucket digging force of 8.8kN, equivalent to approximately 815kgf.
6. Can the boom swing sideways?
Yes. The boom swings 70° to the left and 70° to the right, allowing the machine to excavate alongside walls, fences and other obstacles without continually repositioning the tracks.
7. What size bucket comes with the BM710?
The standard digging bucket is 290mm wide with a specified capacity of 0.011m³, or approximately 11L.
8. What attachments are included?
The current Forestwest BM710 package includes a canopy, ripper, thumb, claw, grading bucket and digging bucket.
9. Is the BM710 suitable for narrow-access excavation?
Yes. The 690mm machine width, compact 562kg operating weight, boom swing and zero-tail-swing design make it particularly suited to narrow-access landscaping, trenching and residential excavation work.
10. What type of hydraulic system does it use?
The BM710 operates at a specified hydraulic pressure of 17.5MPa with dual 9L/min pump capacity and a 12L hydraulic reservoir.
Specifications

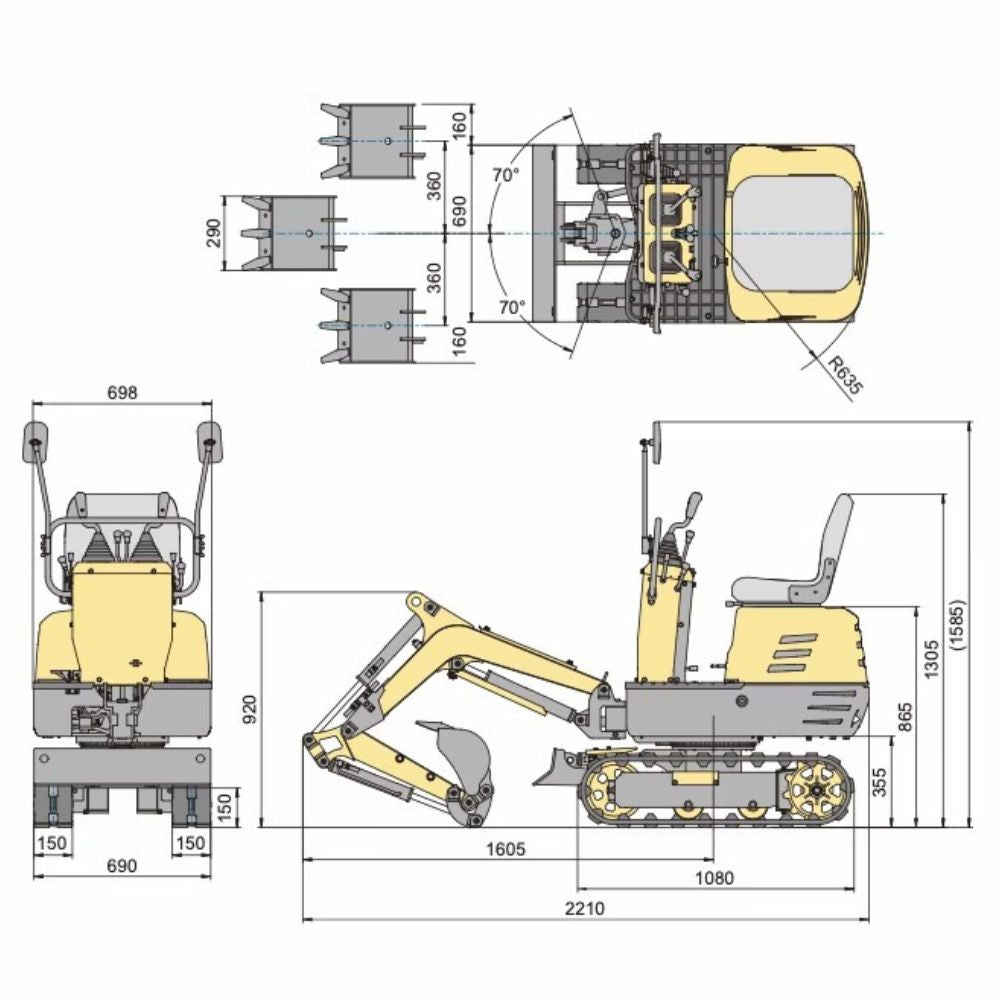

Dimensions
