Description

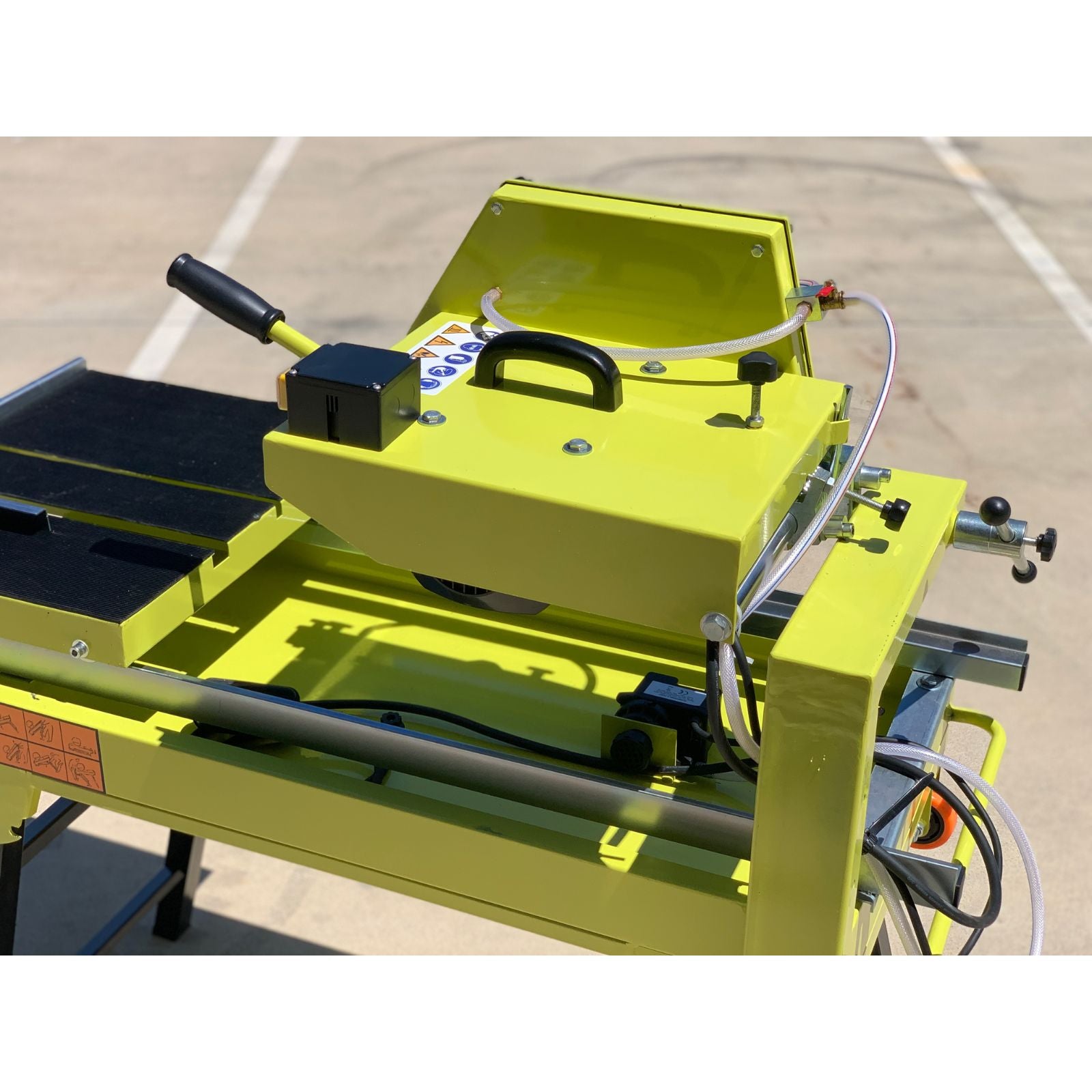

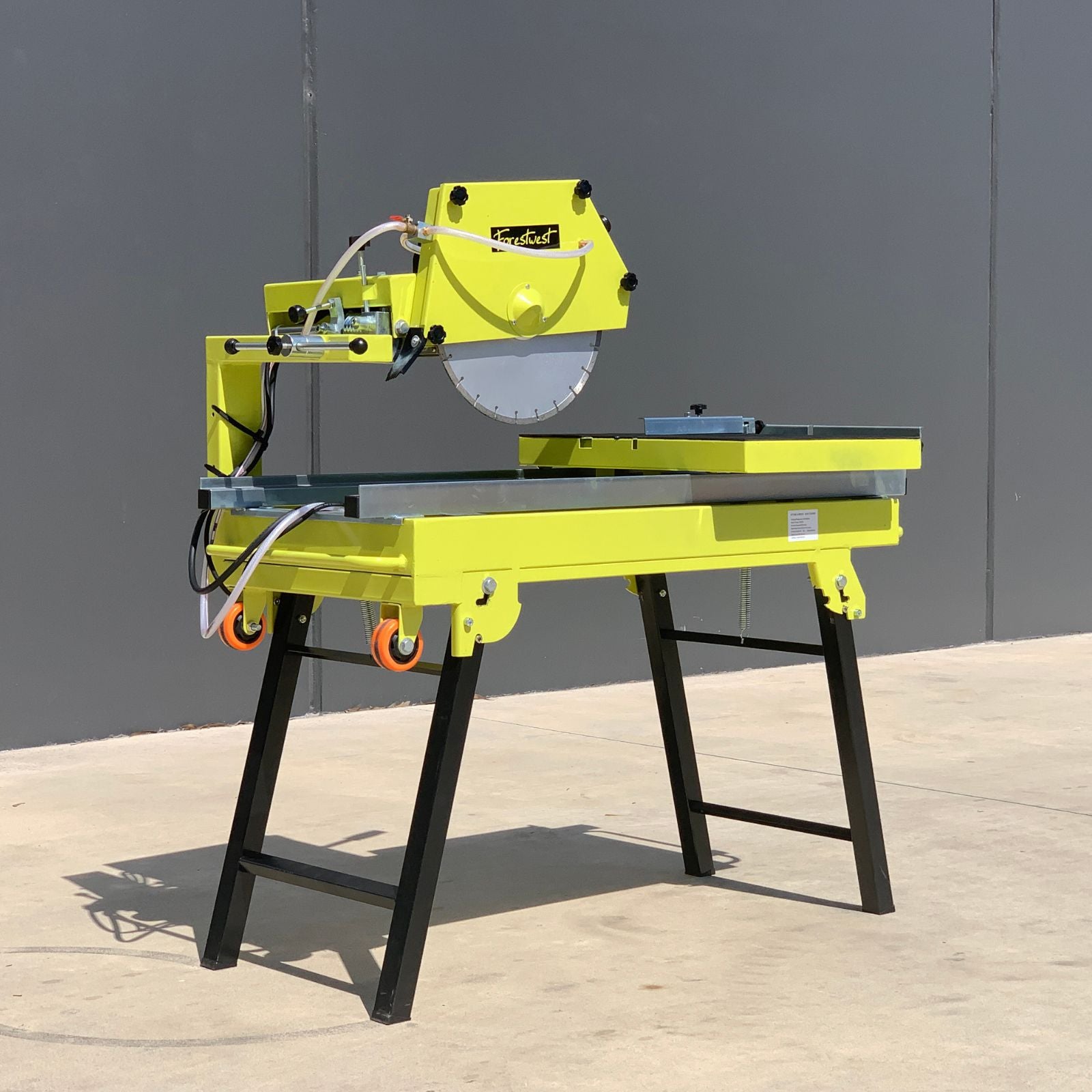

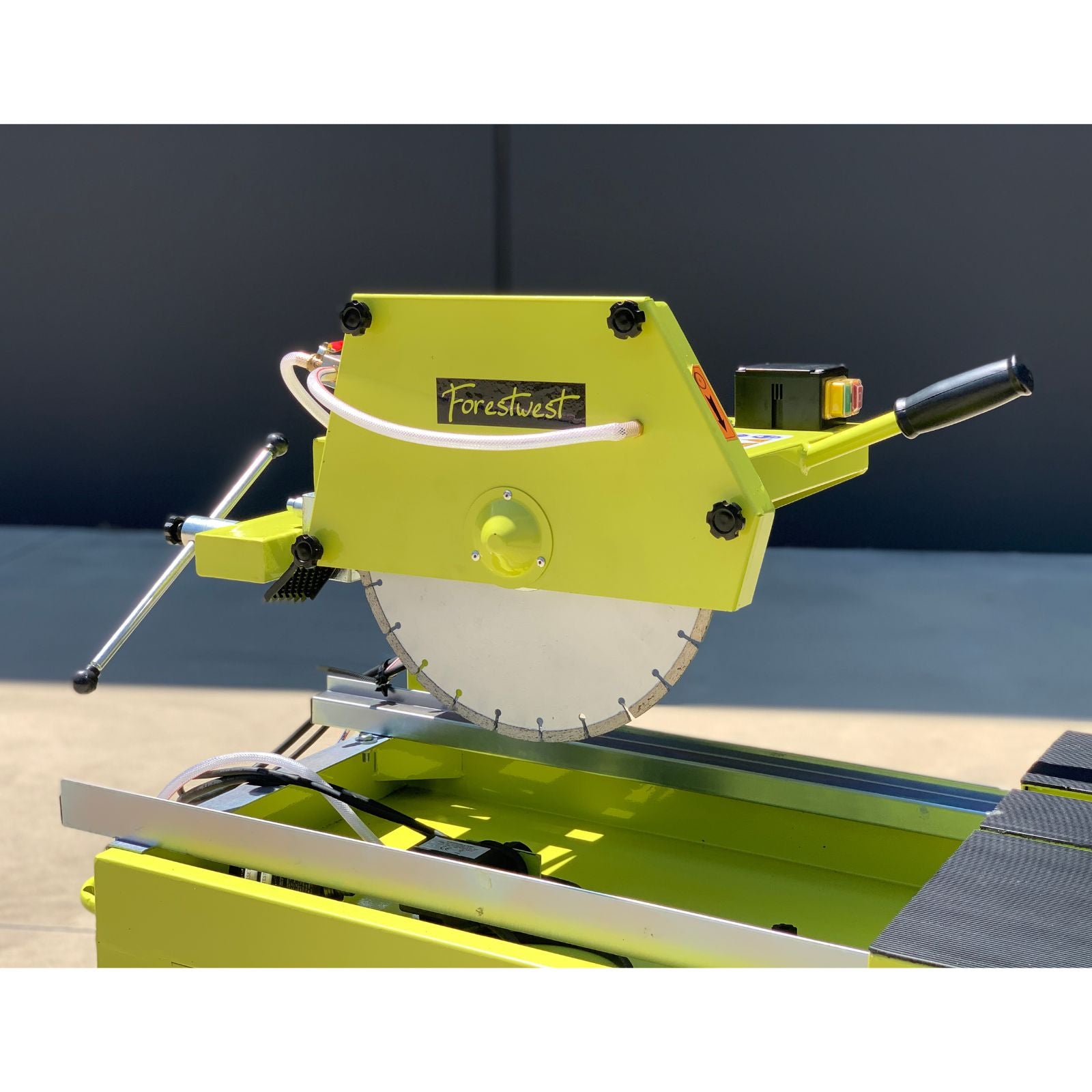

The Forestwest BM686 350mm Brick & Masonry Saw is a heavy-duty electric table saw designed for cutting bricks, pavers, stone, terracotta and other compatible masonry and construction materials.
Powered by a 2000W induction motor with a standard 10A plug, the BM686 uses a large 350mm diamond masonry blade to provide up to 90mm cutting depth. A key advantage is its generous 800mm maximum cutting length, providing additional capacity when cutting longer bricks, pavers and masonry pieces.

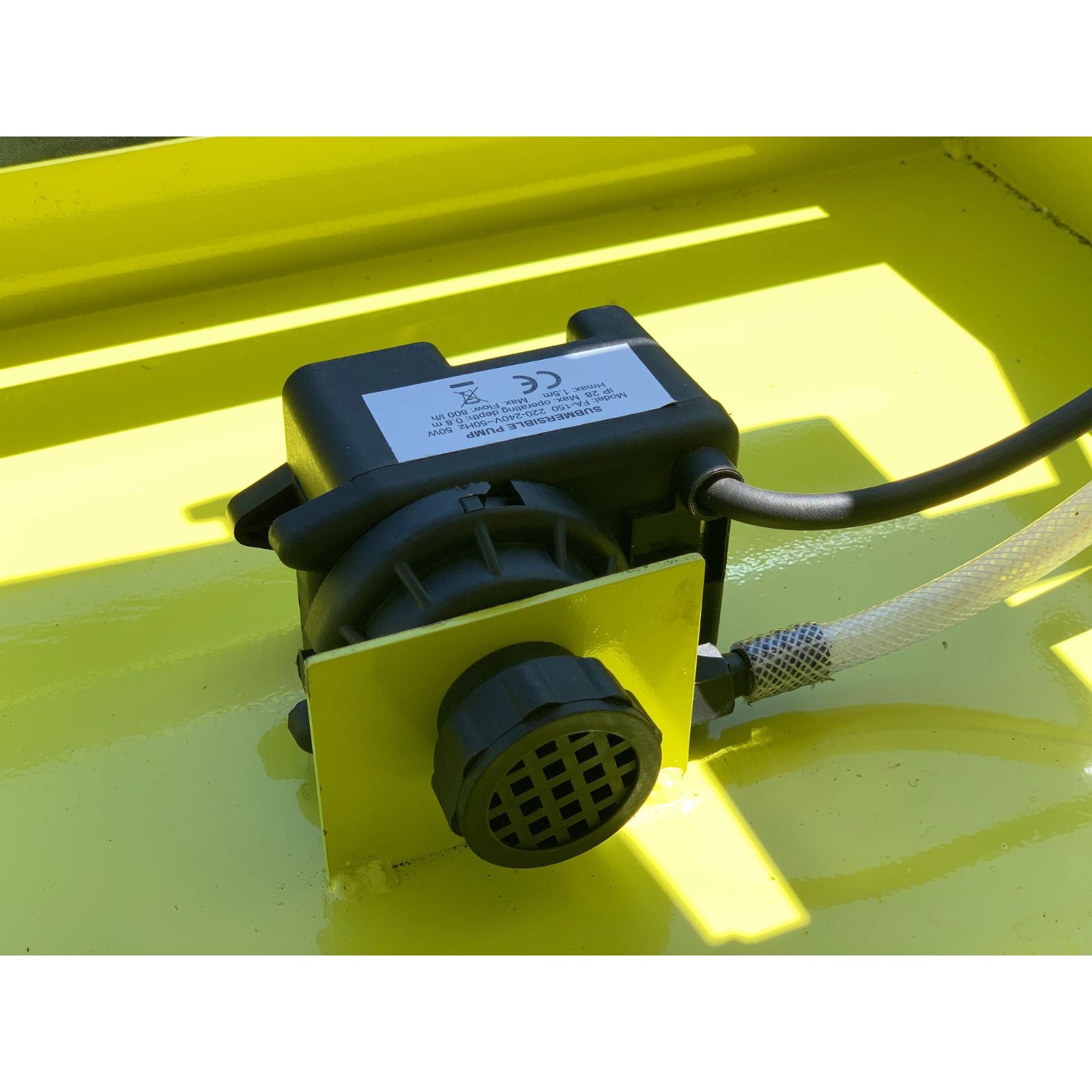

The easy-glide sliding table supports controlled material movement through the blade, while the cutting head can be adjusted from 0–45° for straight and bevel cuts. A large 37.8L water tank and cooling pump continuously supply water to the blade to reduce dust and heat during wet cutting.
Assembly:
Key Features & Benefits
- 800mm Cutting Length: Provides generous capacity for longer bricks, pavers and masonry materials.
- 350mm Diamond Masonry Blade: Large 14-inch blade included for demanding construction cutting.
- 2000W Induction Motor: Strong 10A electric power for brick and masonry applications.
- 90mm Cutting Depth: Suitable for standard bricks, pavers, blocks and compatible masonry materials.

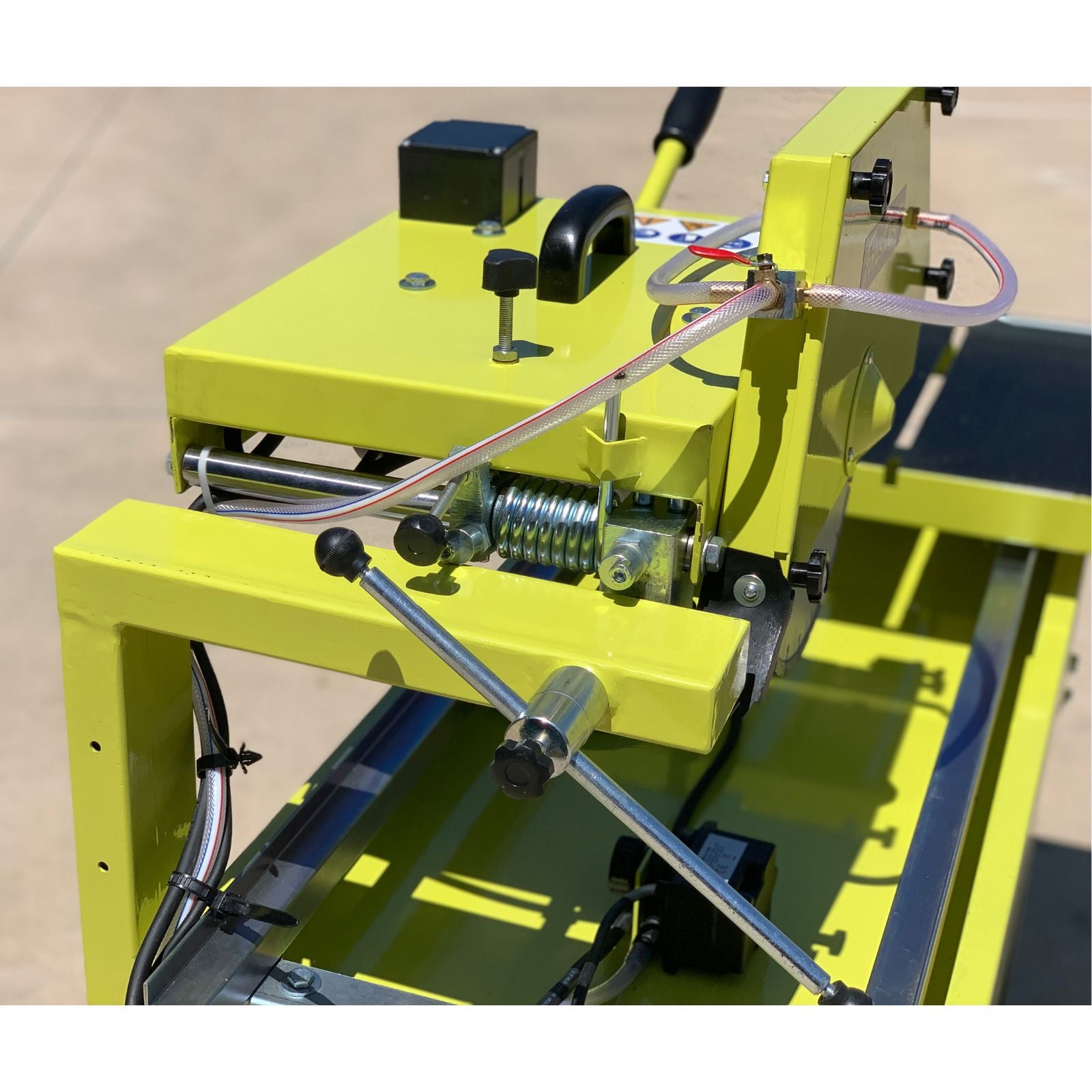

- 0–45° Bevel Cutting: Adjustable cutting head supports straight and angled cuts.

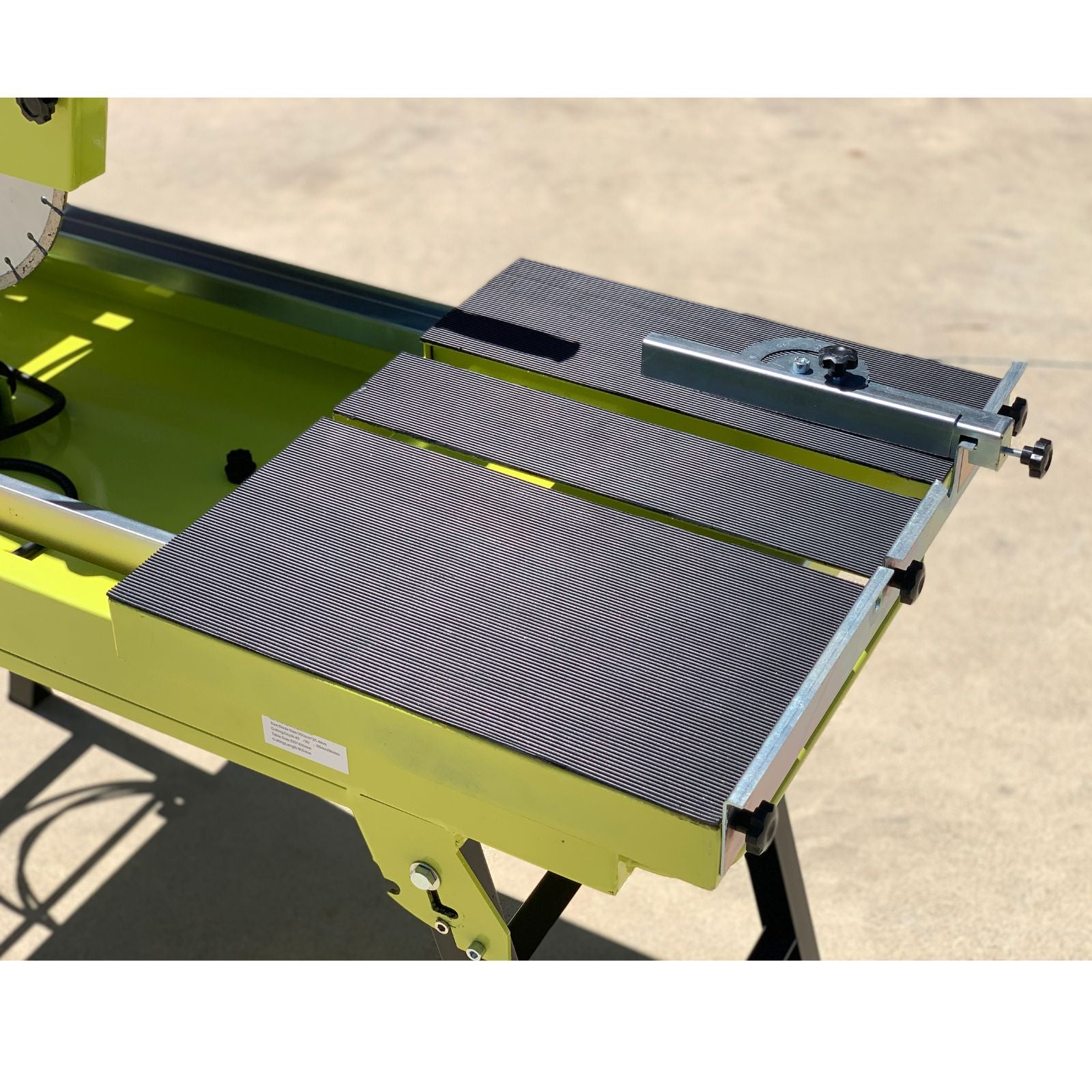

- Sliding Work Table: Easy-glide carriage improves control when handling larger workpieces.
- 37.8L Water Tank: Large-capacity wet cutting system helps cool the blade and reduce airborne dust.
- Heavy-Duty Bearings: Industrial carriage and head bearings support regular job-site operation.

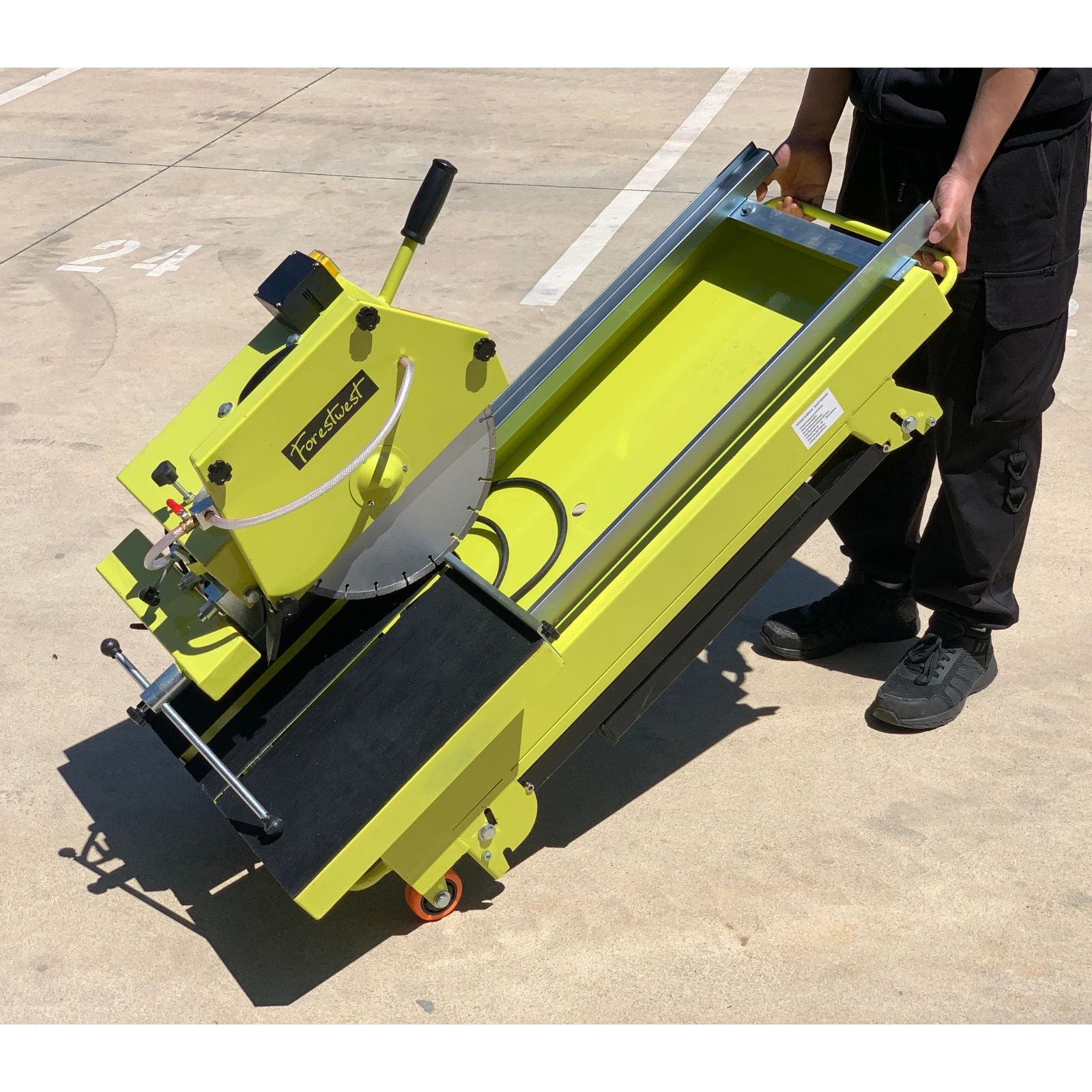

- Foldable Stand with Rollers: Helps simplify transport and storage between jobs.
Cutting ceramic or porcelain tiles instead? See the Forestwest Wet Tile Saw & Electric Tile Cutter range for dedicated tile cutting machines.
Specifications
| Model | BM686 |
| Motor Power | 2000W / 230V / 50Hz / 10A |
| No-Load Speed | 2800rpm |
| Blade Size | 350mm with 25.4mm Bore |
| Max. Cutting Length | 800mm |
| Max. Cutting Depth | 90mm |
| Blade Tilting Range | 0–45° |
| Water Tank Capacity | 37.8L |
| Table Size | 530 × 430mm |
| Packing Size | 1240 × 580 × 610mm |
| Net / Gross Weight | 75 / 85kg |
Frequently Asked Questions
1. What materials can the BM686 cut?
It is designed for bricks, pavers, stone, terracotta, masonry blocks and other compatible construction materials.
2. What is the maximum cutting length?
The BM686 provides up to 800mm of straight cutting length.
3. How deep can it cut?
The maximum cutting depth is 90mm.
4. What size blade does it use?
The BM686 uses a 350mm diamond masonry blade with a 25.4mm bore.
5. Does it use a standard 10A power supply?
Yes. The 2000W motor operates from a suitable 230V 10A power supply.
6. Can it make bevel cuts?
Yes. The cutting head can be adjusted from 0° to 45°.
7. Does it use water while cutting?
Yes. The saw includes a 37.8L water tank and cooling pump to supply water during cutting.
8. Is the BM686 a tile saw or a masonry saw?
The BM686 is primarily a brick and masonry saw. For ceramic and porcelain tile applications, see the dedicated Forestwest Wet Tile Saw range.
