Description

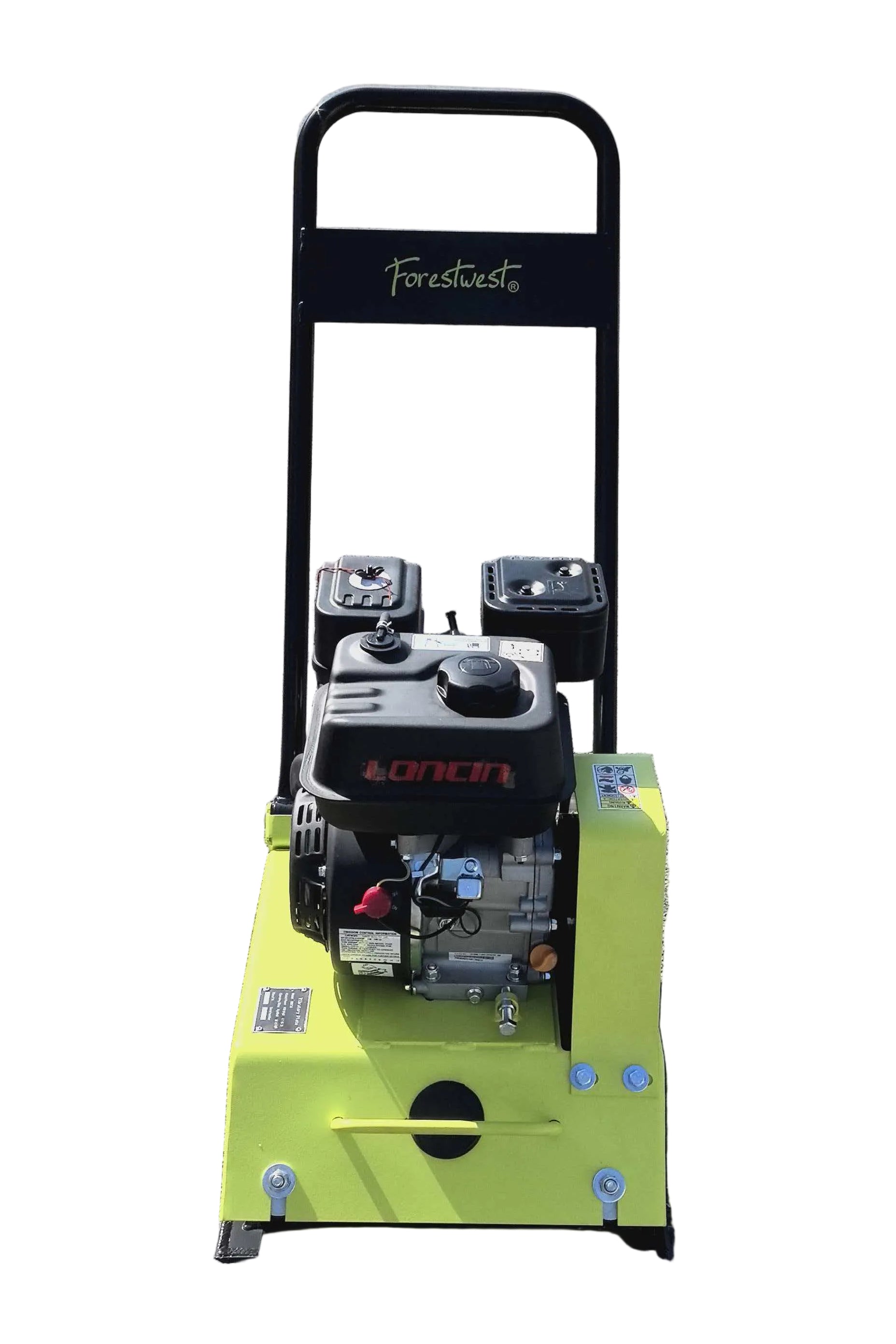

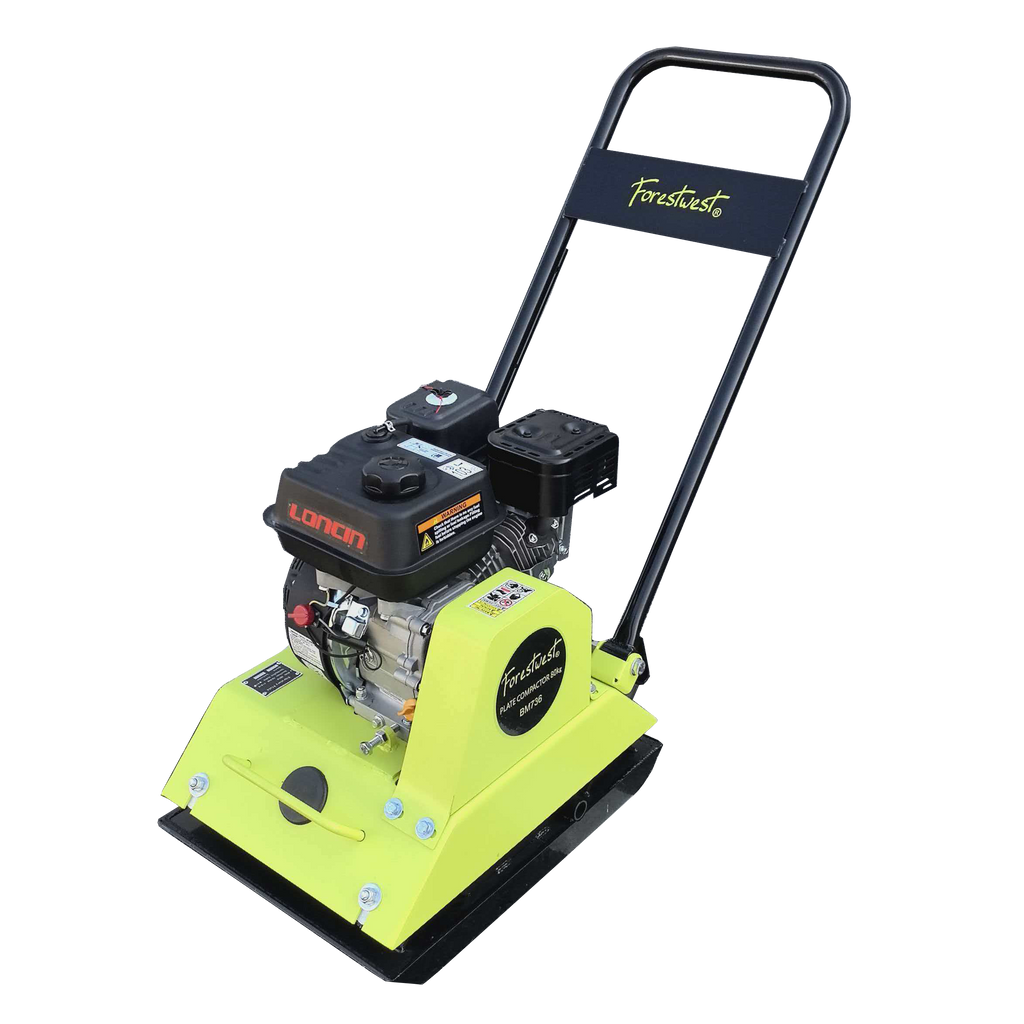

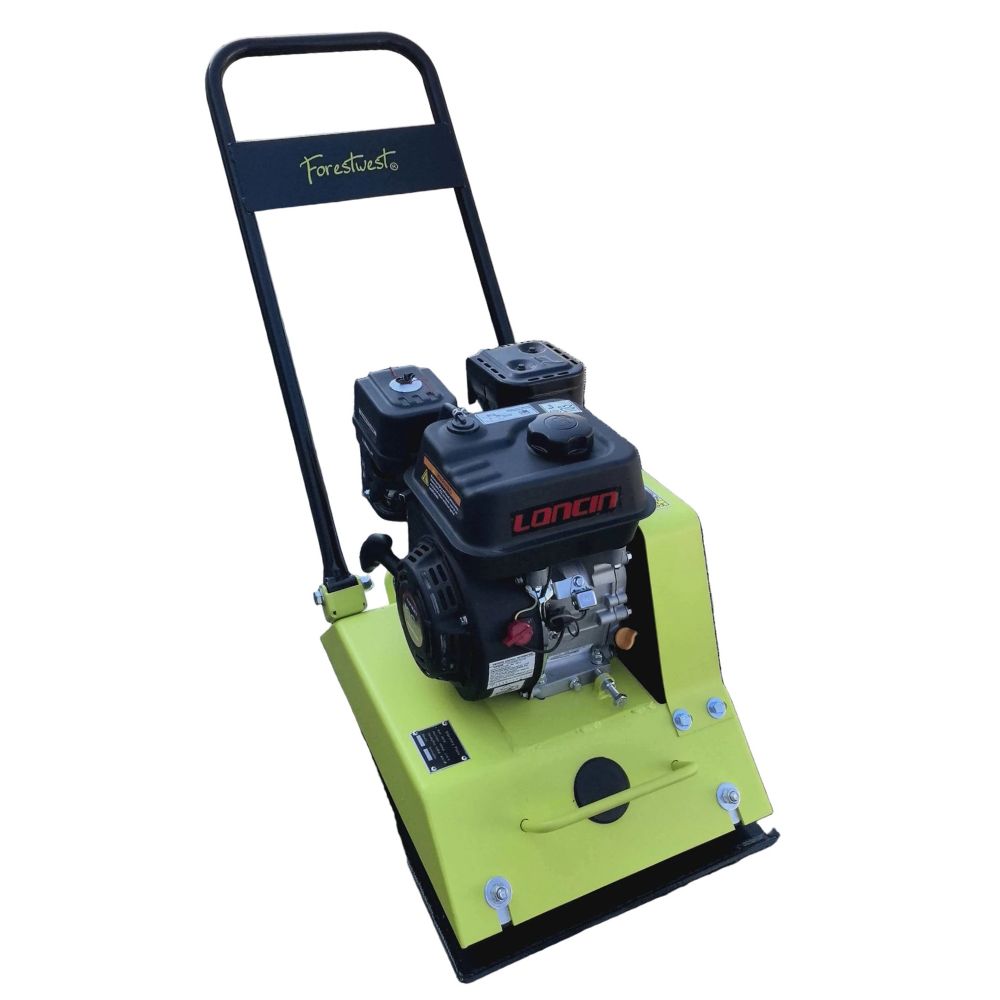

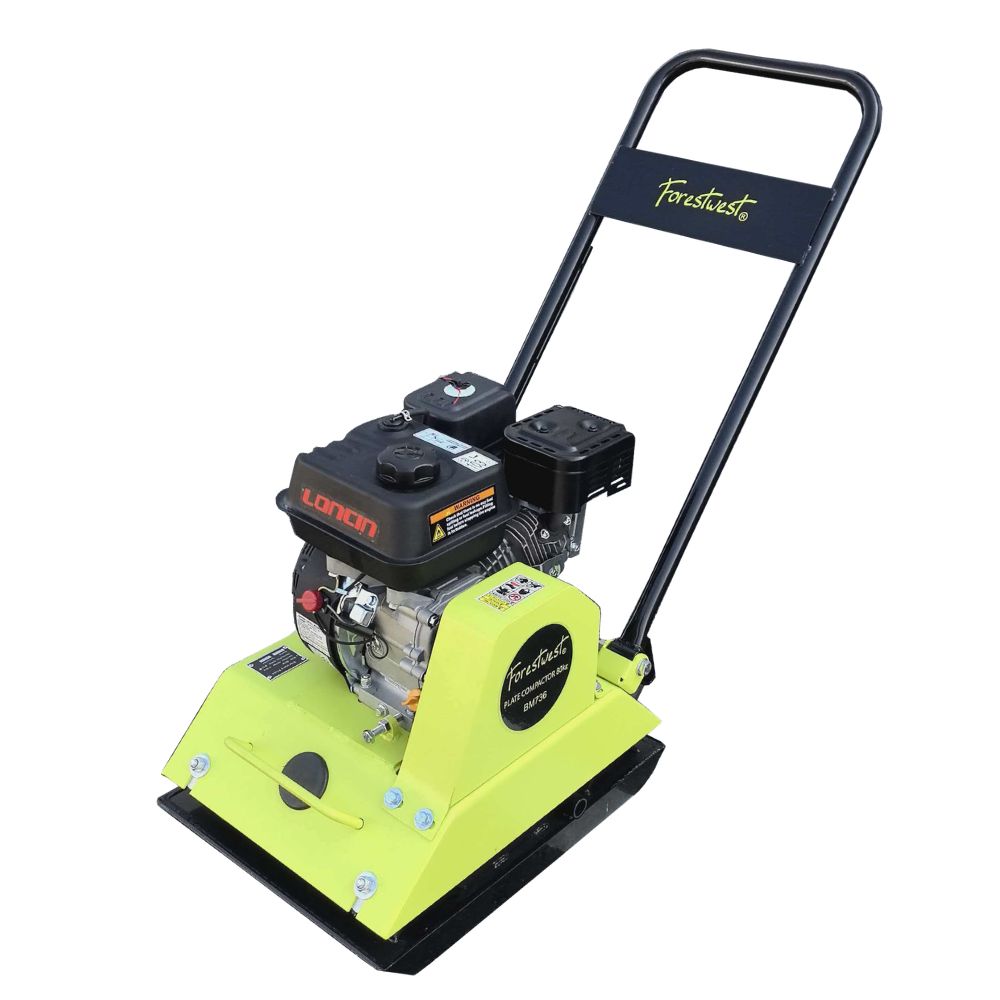

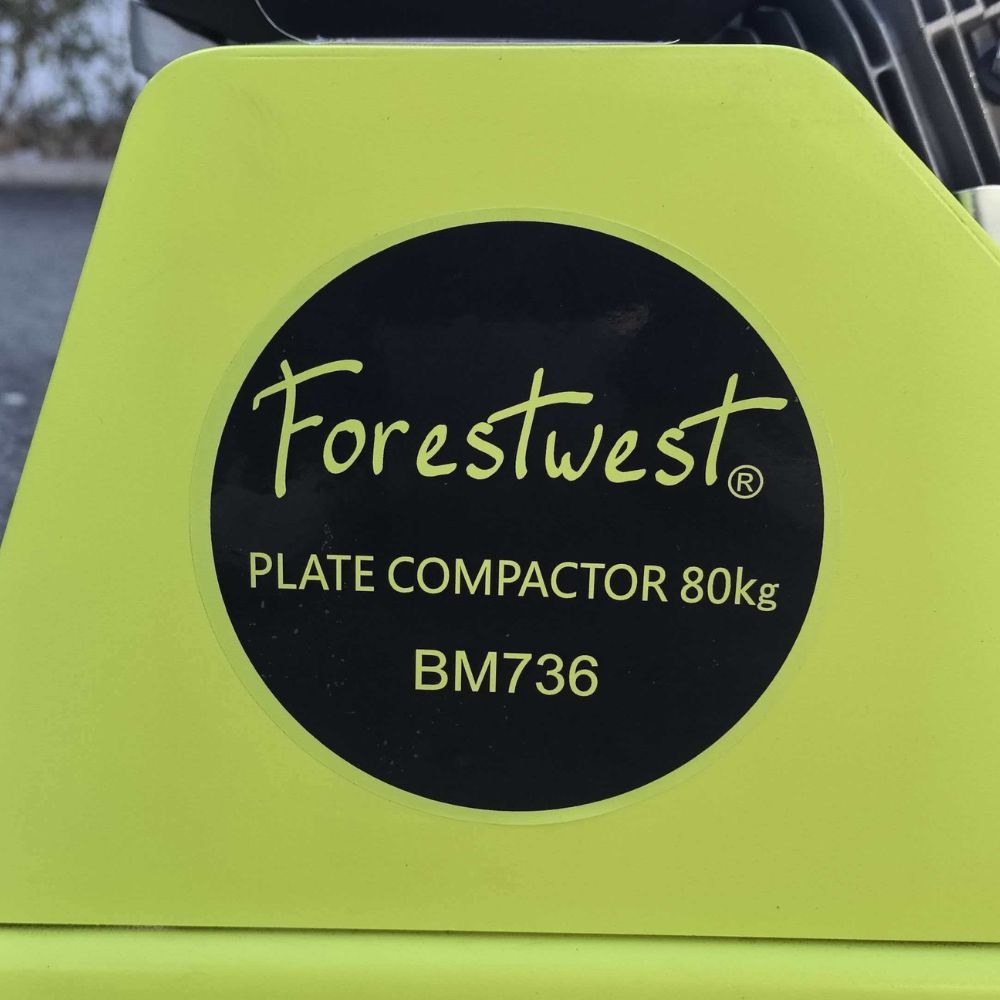

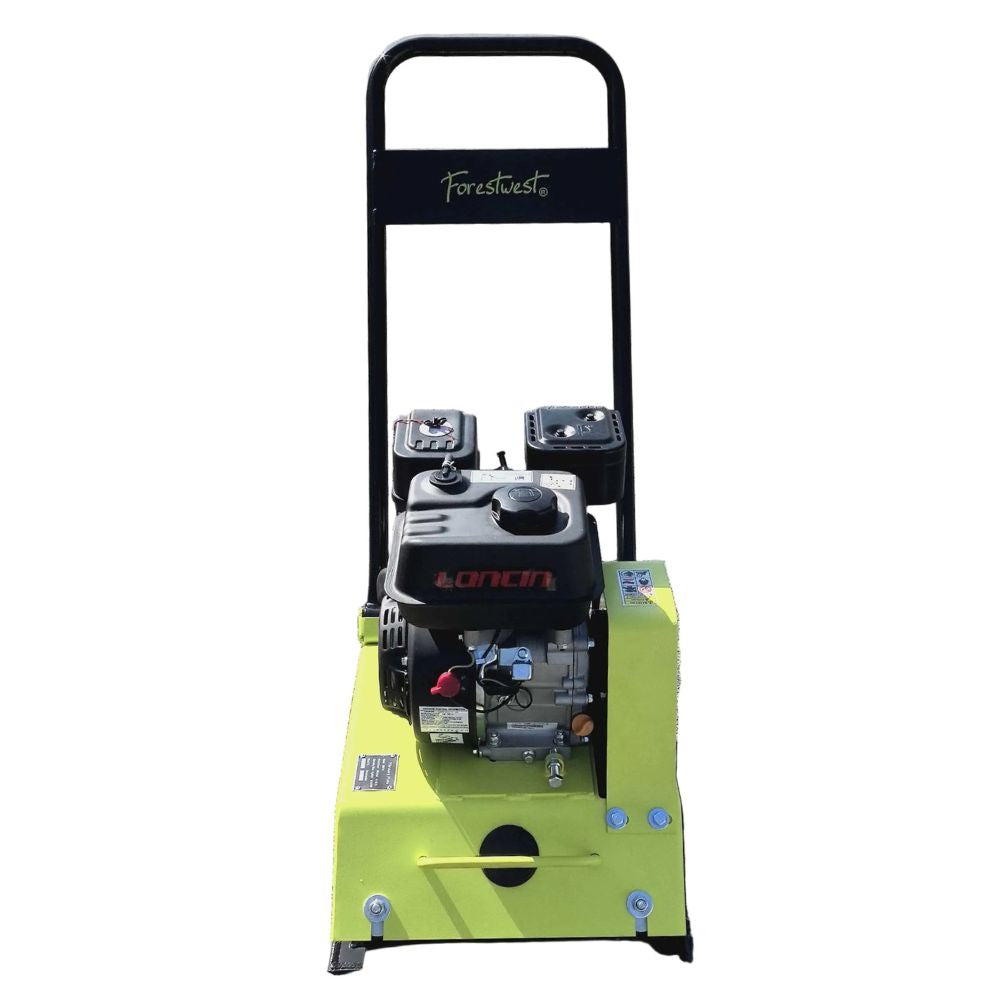

The Forestwest BM736 80kg Box Type Plate Compactor is an all-round petrol compactor designed for landscaping, paving, construction and ground-preparation applications requiring a balance of compaction performance, stability and manageable machine weight.
The BM736 differs from many conventional forward plate compactors through its box-type reinforced base construction. The welded steel base incorporates internal reinforcing structure to increase rigidity and support stable contact across the compacting surface. This design makes the machine particularly suitable for repeated surface compaction where consistent coverage is important.
Powered by a 6.5HP Loncin G200F engine, the BM736 produces 12kN centrifugal force at approximately 5600 vibrations per minute. Its larger 550 × 410mm base plate and specified 300mm maximum compaction depth make it a strong all-round option between the lighter BM735 and heavier BM737.
Why Choose a Box Type Plate Compactor?
Traditional forward plate compactors are often designed around a relatively simple plate and exciter assembly. A box type plate compactor uses a more substantial reinforced base structure, providing increased rigidity and a stable footprint during compaction.
- Reinforced Base Construction: Welded steel and internal reinforcing ribs support the base under repeated vibration.
- Stable Compaction Surface: The box-style footprint promotes consistent contact between the plate and material.
- Reduced Structural Flex: Increased base rigidity helps maintain the plate's working geometry during operation.
- Efficient Surface Coverage: Larger plate area helps compact broader sections with each pass.
Key Features & Benefits
- 80kg All-Round Design: Balances compaction performance with practical transport and manoeuvrability.
- 12kN Centrifugal Force: Increased compaction performance over the lighter BM735.
- 300mm Compaction Depth: Suitable for deeper soil and sub-base preparation.
- 550 × 410mm Base Plate: Provides broader coverage while remaining manageable on construction and landscaping sites.
- Box Type Reinforced Base: Heavy-duty welded steel construction with internal reinforcement increases structural rigidity.
- 6.5HP Loncin G200F Engine: Reliable petrol-powered operation for regular trade and property work.
- 5600VPM: High vibration frequency supports consistent compaction of suitable granular materials.
- Approx. 198m²/h Coverage: Increased plate area and travel efficiency improve productivity on larger surfaces.
- Low-Vibration Handle: Designed to reduce vibration transmitted to the operator.
Need a lighter machine? The BM735 63kg Box Type Plate Compactor is easier to transport while retaining the reinforced box-style design.
Need greater surface coverage? Step up to the BM737 100kg Box Type Plate Compactor with a 600 × 440mm base plate.
Specifications
| Model | BM736 |
| Compactor Type | Forward Box Type Plate Compactor |
| Engine | Loncin G200F, 6.5HP Petrol |
| Operating Weight | 80kg |
| Centrifugal Force | 12kN |
| Vibration Frequency | 5600VPM |
| Max. Compaction Depth | 300mm |
| Travel Speed | 25 cm/s |
| Base Plate Size | 550 × 410mm |
| Area Capacity | Approx. 198m²/h |
| Package Size | 862 x 512 x 720mm |
| Net / Gross Weight | 80 / 103kg |
Frequently Asked Questions
1. What makes the BM736 a box type plate compactor?
Its reinforced box-style base uses welded steel construction and internal reinforcement to create a more rigid compacting structure.
2. Is a box type compactor better than a normal plate compactor?
They are different designs. Box-type compactors place greater emphasis on structural rigidity, stable ground contact and broad surface coverage, while other forward compactors may prioritise lower weight, portability or higher peak centrifugal force.
3. What materials is BM736 suitable for?
It is suitable for compatible granular materials including soil, sand, gravel and paving sub-base.
4. What is the maximum compaction depth?
The specified maximum compaction depth is 300mm.
5. BM735 or BM736?
The BM735 is lighter and more portable. The BM736 provides 12kN force, a larger plate and deeper specified compaction capacity.
6. BM736 or BM737?
The BM736 is the more balanced all-round model. The BM737 is heavier and uses a larger plate for greater surface coverage and productivity.
7. Is the BM736 suitable for paving preparation?
Yes. Its reinforced box-style plate, 300mm specified compaction depth and 550 × 410mm footprint make it suitable for compatible paving and sub-base preparation work.
