Description

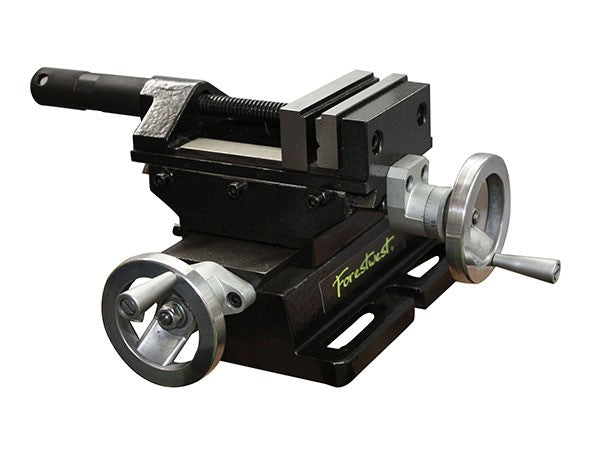

This Forestwest BM30112 6" Cross Slide Vice is capable of traveling at two directions. The jaw width is 150mm. The cross slide vice can travel 120mm at X axis, and 100mm at Y axis. This compound sliding vice is well machined with smooth travel. It is a precision model, with positive positioning in two coordinates lets you move the piece accurately. This is an ideal vice for accurate drilling and milling.
6" Precision Cross Slide Vice Features:
-
A cross slide capability in X and Y axis, smooth travel,
-
Sturdy construction made of cast iron,
-
Well machined for precision use,
-

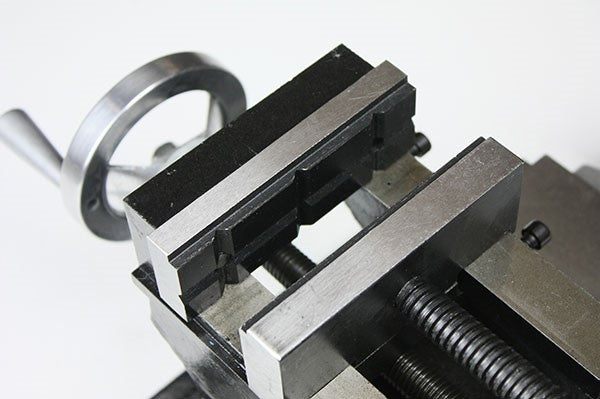

Jaw opens up to 148mm, 0.05mm graduation.
Specifications:
| A | B | C | D | E | F |
|---|---|---|---|---|---|
| 270mm | 205mm | 170mm |
105mm |
245mm |
135mm |
| G | H | J | K | X Travel | Y Travel |
| 170mm |
40mm |
135mm |
150mm |
120mm |
100mm |
| Model |
6" Precision Cross Sliding Vice BM30112 |
|---|---|
| Jaw width | 150mm |
| Jaw opening | 148mm |
| N.W./G.W | 15/16kg |
| Packing size | 510*400*240mm |
