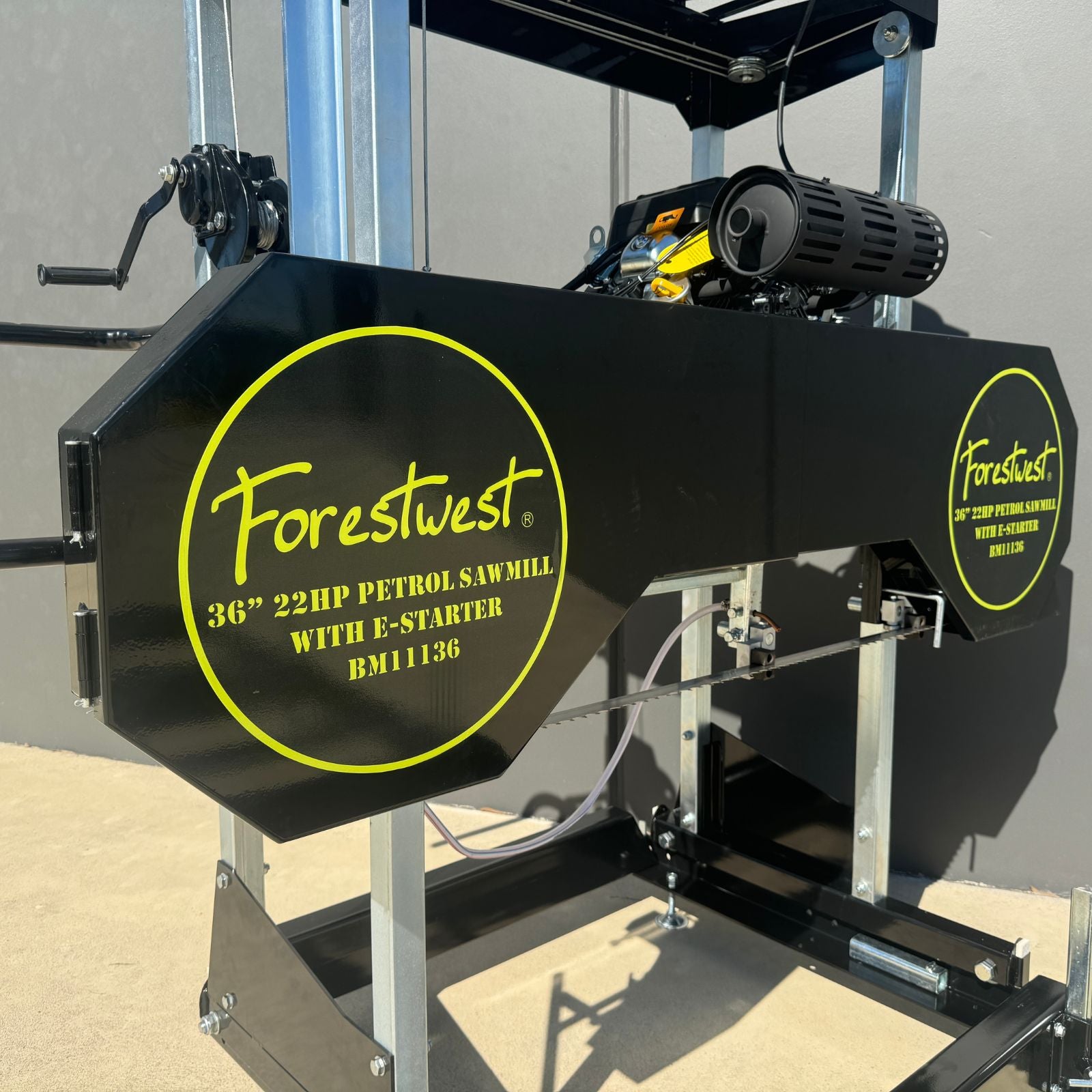

Forestwest 36" Portable Wood Sawmill 22HP with E-Start BM11156

Upgraded from the BM11136 with Greater Cutting Capacity and Improved Operation

The Forestwest BM11156 is the upgraded version of the BM11136, retaining the reliable power and heavy-duty construction of the previous model while introducing several significant improvements to cutting capacity, blade adjustment and maintenance access.

Key Upgrades from the BM11136

• Wider Cutting Capacity: Maximum cutting width increased from 29.5" (750 mm) to 36" (915 mm), allowing the sawmill to produce wider slabs and make better use of large-diameter logs.
• Greater Cutting Depth: Maximum cutting depth increased from 150 mm to 8" (203 mm).

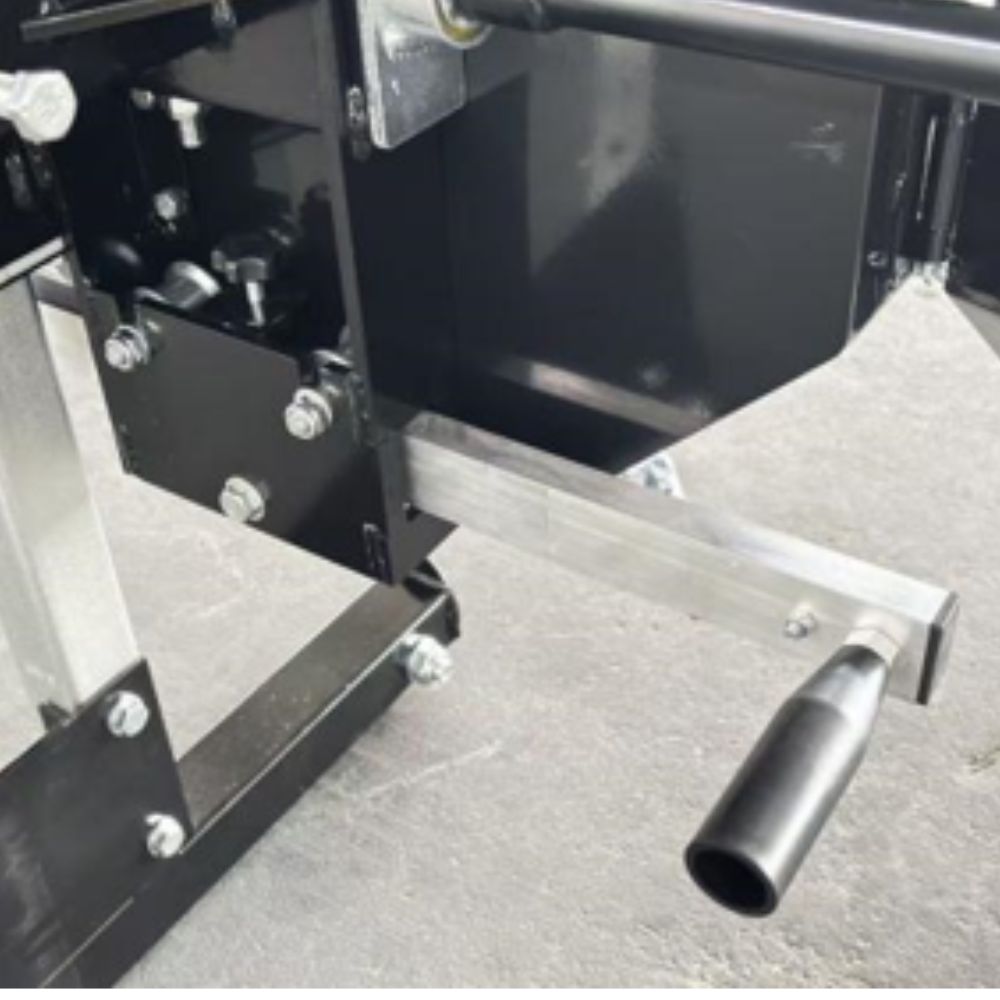

• New Blade Tensioning Handle: Provides easier and more convenient blade-tension adjustment.

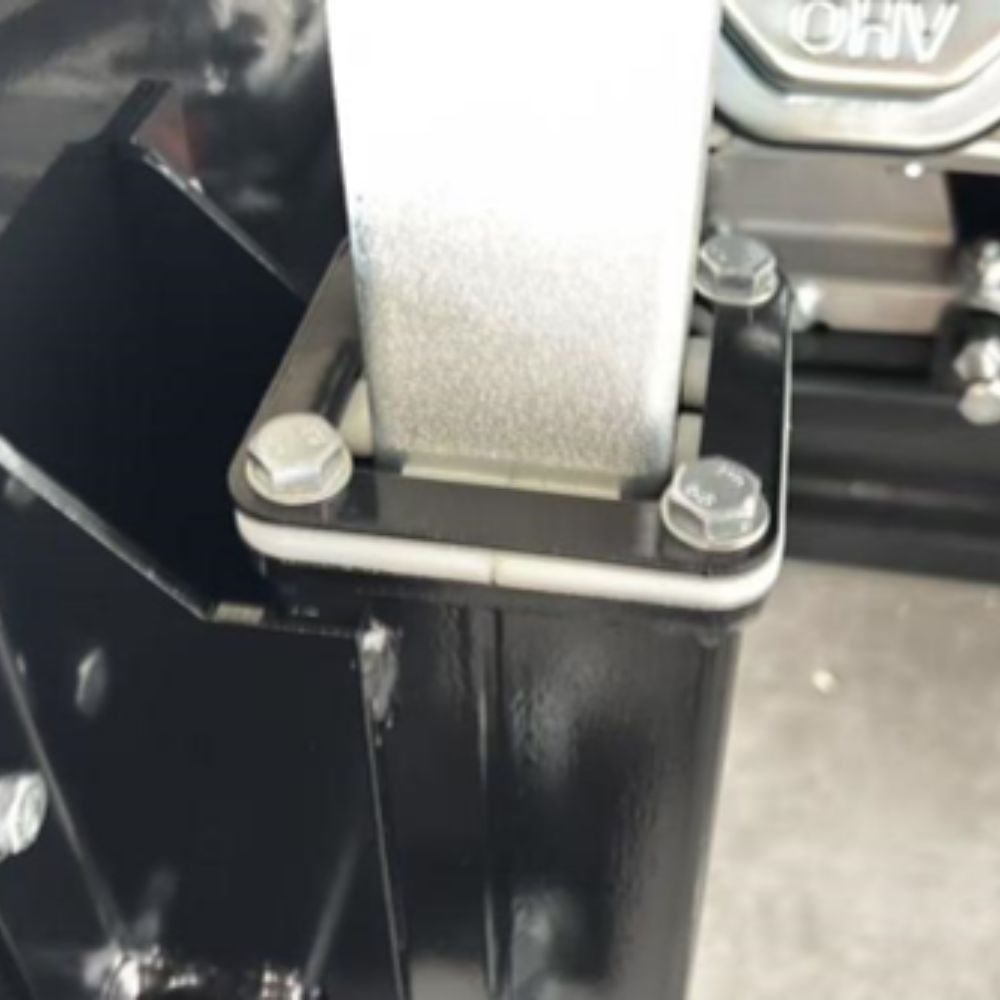

• Nylon Pads on the Sawhead Lift Guides: Help the sawhead move more smoothly when being raised or lowered.
• Quick-Release Cover Clamps: Allow faster and easier access to the internal components for inspection, blade adjustment and maintenance.

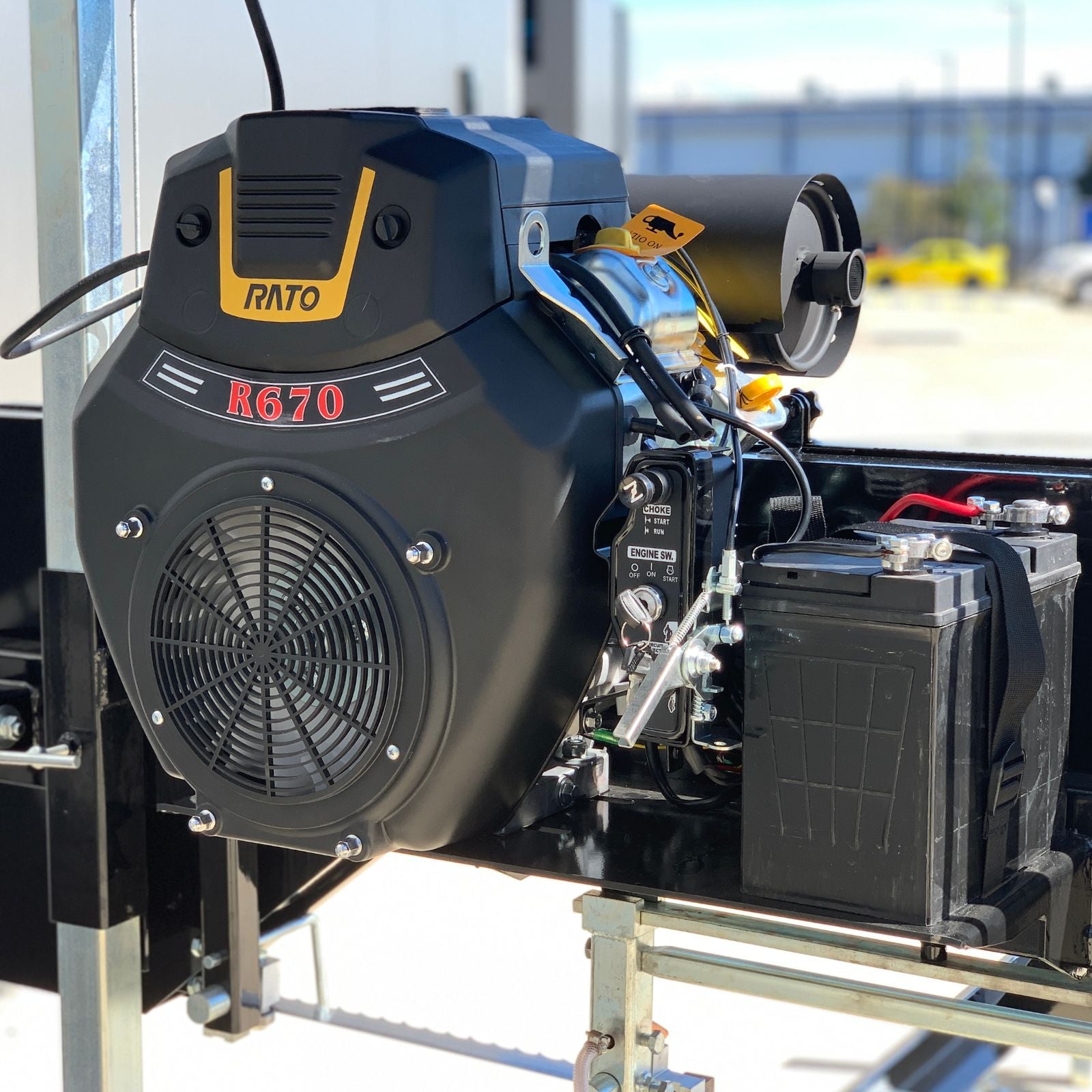

Powered by a robust 22HP petrol engine with electric start, the BM11156 delivers the power required to cut demanding Australian hardwoods. It has been tested by local customers cutting Red Gum, demonstrating its capability in tough working conditions.

The sawmill uses a durable 162" induction-hardened steel bandsaw blade, providing accurate and consistent cutting performance. With a maximum log diameter of 36" (915 mm) and an upgraded maximum cutting width of 36" (915 mm), it can now cut substantially wider boards and slabs than the previous BM11136.

The sawmill features a 4100 mm bed length and a maximum cutting length of 3100 mm, providing ample capacity for processing long logs.

With its wider and deeper cutting capacity, improved blade-tensioning system, smoother sawhead movement and easier maintenance access, the Forestwest BM11156 offers a more capable and user-friendly sawmilling solution for property owners, farmers and professional timber operators.

Assembly:

Demo:

Forestwest 36-inch Wood Sawmill BM11156 Features:

• Upgraded from the BM11136: The BM11156 features a wider maximum cutting width of 36" (915 mm), increased from 29.5" (750 mm), allowing users to cut wider boards and slabs from large logs.
• Increased Cutting Depth: The maximum cutting depth has been increased from 150 mm to 8" (203 mm) for greater cutting flexibility.
• Powerful 22HP Petrol Engine: Delivers reliable cutting performance for demanding Australian hardwoods such as Red Gum and Ironbark.
• Large Cutting Capacity: Handles logs up to 36" (915 mm) in diameter, with a maximum cutting width of 36" (915 mm) and a standard cutting length of approximately 3100 mm.
• Improved Blade Tensioning System: A newly designed blade-tensioning handle makes blade adjustment quicker and more convenient.
• Smoother Sawhead Movement: Nylon guide pads have been added to the sawhead lifting frame to provide smoother vertical movement and reduce direct metal-to-metal contact.

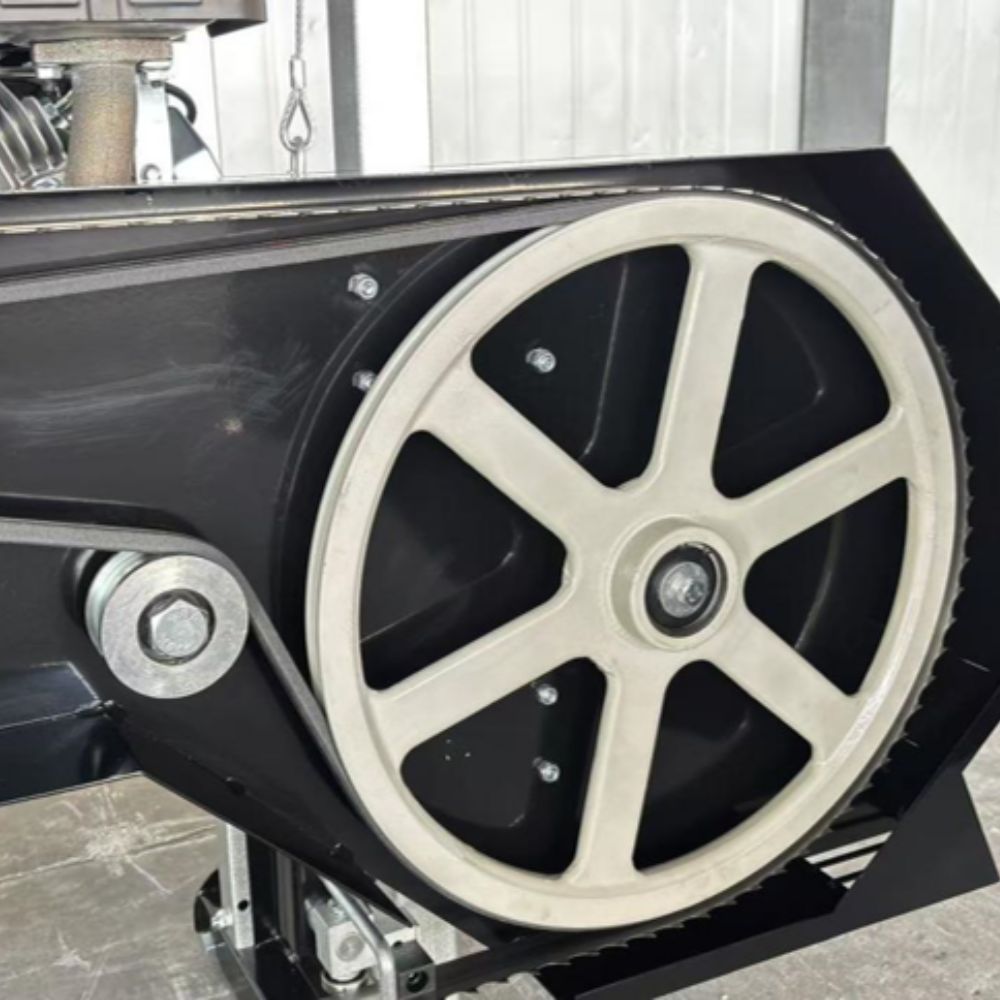

• Quick-Release Cover Clamps: The blade housing covers are fitted with quick-release clamps, providing faster access for blade inspection, adjustment and routine maintenance.
• High-Quality Bandsaw Blade Included: Supplied with a durable induction-hardened steel bandsaw blade for accurate and consistent cutting performance.

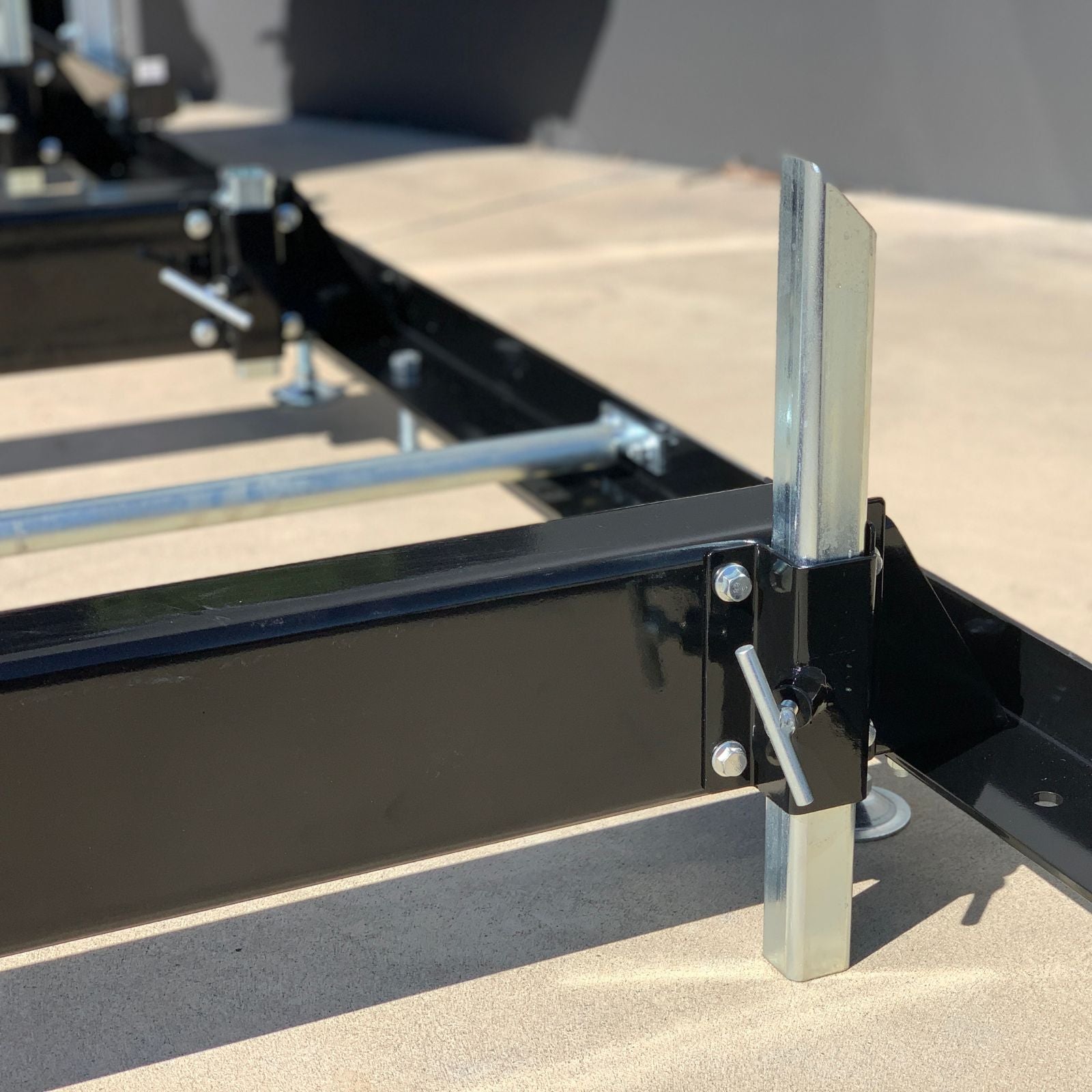

• Optional Bed Extensions Available: Additional sawmill bed extensions can be purchased to accommodate longer logs and specific cutting requirements.
• Stable and Heavy-Duty Construction: The upgraded frame design provides solid support and dependable performance during operation.
• 2-Year Warranty: Backed by a two-year warranty for added confidence and peace of mind.

Specifications:
