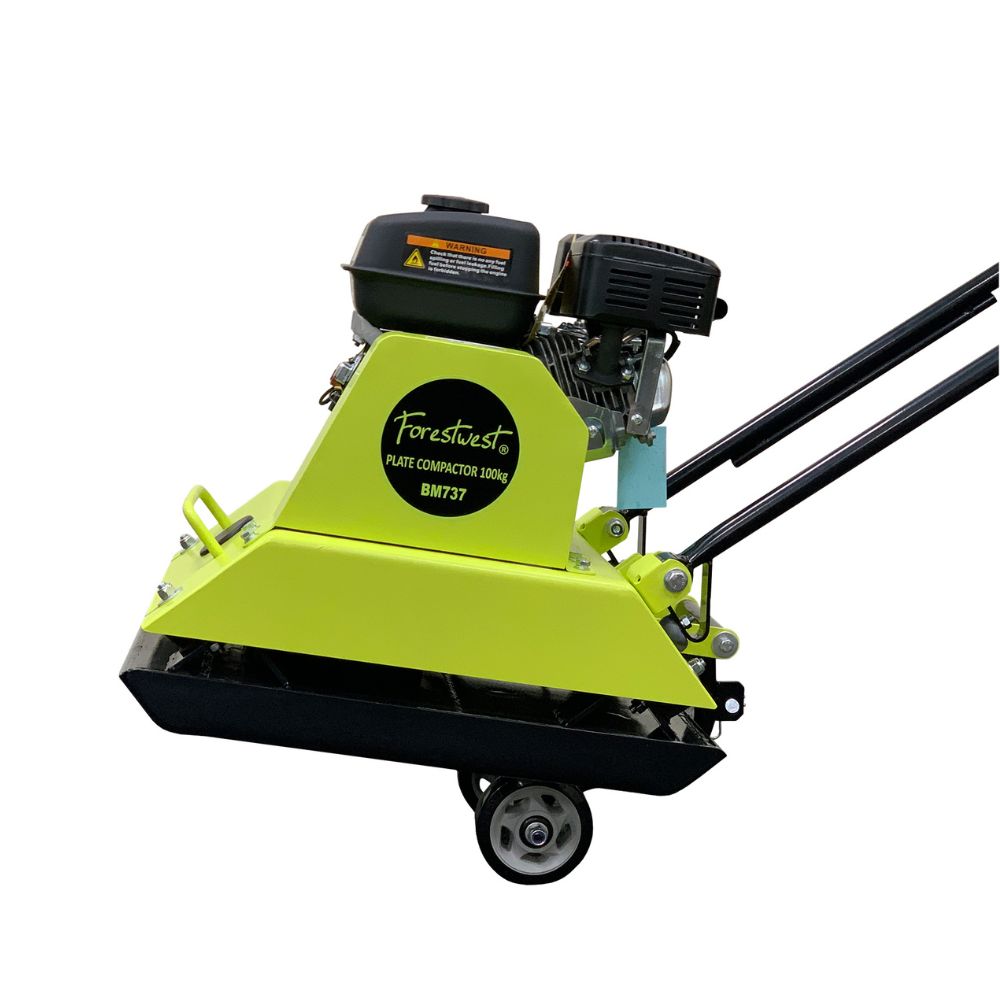

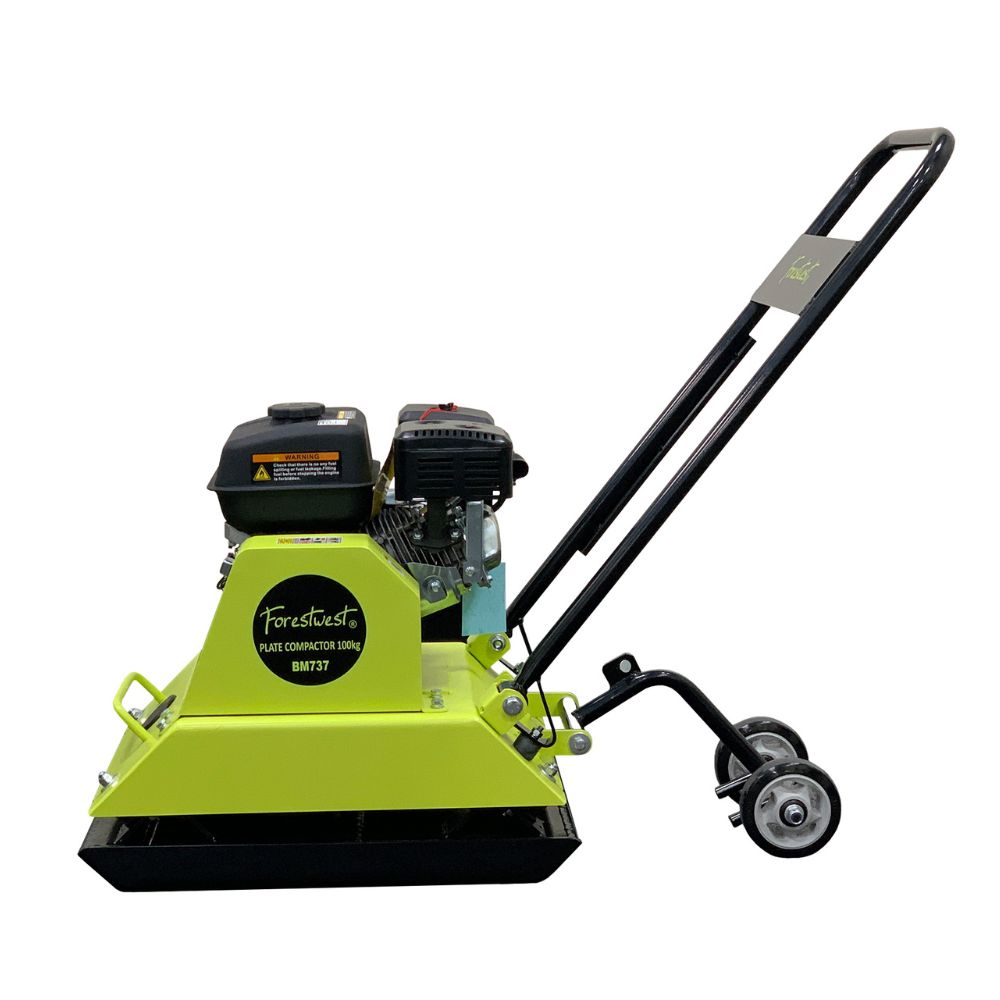

Forestwest 100kg Heavy-Duty Box Type Plate Compactor – 13kN BM737

The Forestwest BM737 100kg Box Type Plate Compactor is the largest and heaviest model in the Forestwest box plate compactor range, designed for larger landscaping, paving and construction projects where surface coverage, stability and productivity are priorities.

Unlike many conventional forward plate compactors that rely on a simpler open-style base assembly, the BM737 uses a large reinforced box-type base. The more substantial steel structure increases base rigidity and provides a broad, stable working footprint, helping maintain consistent surface contact during repeated compaction passes.

The BM737 combines a 13kN centrifugal force with a large 600 × 440mm base plate, giving it the greatest plate area in the Forestwest box compactor series. Powered by a 6.5HP Loncin petrol engine, it provides a specified compaction depth of up to 300mm and an area capacity of approximately 215m²/h.

Why Choose a Box Type Plate Compactor?

A box type plate compactor is designed around a reinforced, rigid base structure rather than a lighter open plate configuration. The design is particularly useful where consistent contact, broad coverage and structural durability are important.

• Large Reinforced Box Base: Provides increased rigidity for demanding repeated compaction work.
• Broad Surface Contact: Large plate footprint supports stable and consistent compaction across wider areas.
• Reduced Base Flex: Reinforced structure helps maintain consistent plate geometry under vibration.
• High Surface Productivity: Larger plate area allows more material to be covered during each pass.

Key Features & Benefits

• 100kg Heavy-Duty Design: Heaviest box plate compactor in the Forestwest range.
• 13kN Centrifugal Force: Highest compaction force in this Forestwest box compactor series.
• 600 × 440mm Large Base Plate: Provides excellent surface coverage and improved productivity.
• 300mm Compaction Depth: Suitable for deeper soil, gravel and sub-base preparation.
• Approx. 215m²/h Coverage: Highest stated surface productivity in the Forestwest box plate range.
• Box Type Reinforced Base: Heavy welded steel construction designed for structural rigidity and stable compaction.
• 6.5HP Loncin Engine: Reliable petrol power for larger landscaping and construction jobs.
• 5600VPM: High vibration frequency supports effective compaction of compatible granular materials.
• Transport Wheels: Assist with moving the heavier 100kg machine around the worksite.

Need a lighter all-round machine? Consider the BM736 80kg Box Type Plate Compactor with the same 300mm specified compaction depth in a more manageable package.

Specifications

Frequently Asked Questions

1. What is a box type plate compactor?

A box type plate compactor uses a reinforced box-style base structure designed to provide increased rigidity and stable ground contact during compaction.

2. How is BM737 different from a conventional forward plate compactor?

The BM737 uses a large reinforced box-style base rather than a simpler open plate structure. This provides a more rigid working base and a broad 600 × 440mm contact area.

3. Is BM737 the largest Forestwest box plate compactor?

Yes. It is the heaviest model in this series at approximately 100kg and has the largest base plate.

4. What is the maximum compaction depth?

The specified maximum compaction depth is 300mm.

5. What is the advantage of the 600 × 440mm plate?

The larger plate covers more surface area with each pass, helping improve productivity on larger sites.

6. BM736 or BM737?

The BM736 is lighter and easier to transport. The BM737 provides a larger plate, greater centrifugal force and higher stated area capacity.

7. What materials can BM737 compact?

It is suitable for compatible granular materials such as soil, sand, gravel and paving sub-base.
