Description
The Forestwest BM691 80L Pan Mortar Mixer is a compact commercial mixing solution designed for mortar, screed, cement and other construction materials. Its forced mixing action provides more consistent blending than relying on gravity alone in a conventional drum mixer.

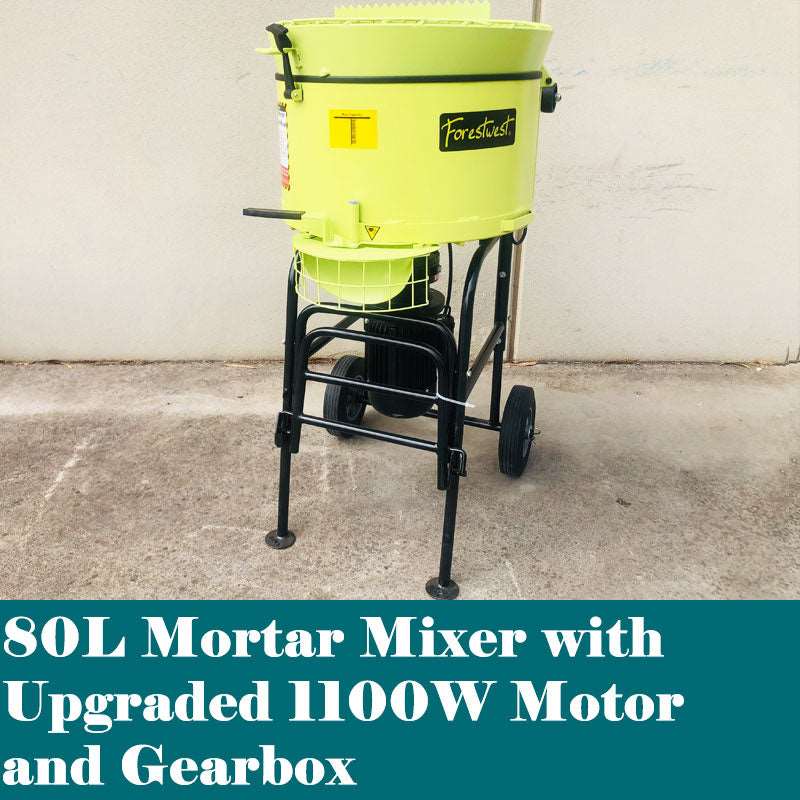

Powered by a 1100W high-torque electric motor with a standard Australian 10A plug, the BM691 uses four mixing blades positioned at different heights to move material throughout the pan. The 80L drum provides a practical mixing capacity of approximately two-thirds of the total drum volume.
A heavy-duty 3mm steel pan, cycloidal reducer and protective hopper grate make the BM691 suitable for regular job-site use. Opening the grate activates an automatic safety cut-off, while the integrated bag splitter helps make loading bagged material easier.
Key Features & Benefits
- 80L Pan Capacity 53L Mix Capacity: Compact size suitable for mortar, screed, cement and similar construction mixes.

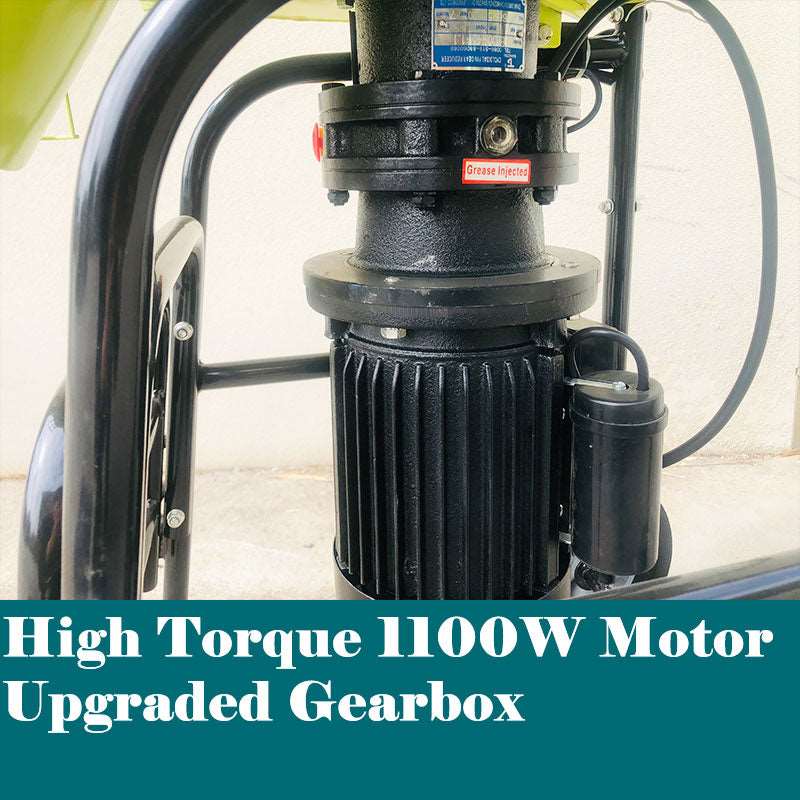

- 1100W 10A Motor: High-torque electric operation from a suitable standard Australian 10A supply.

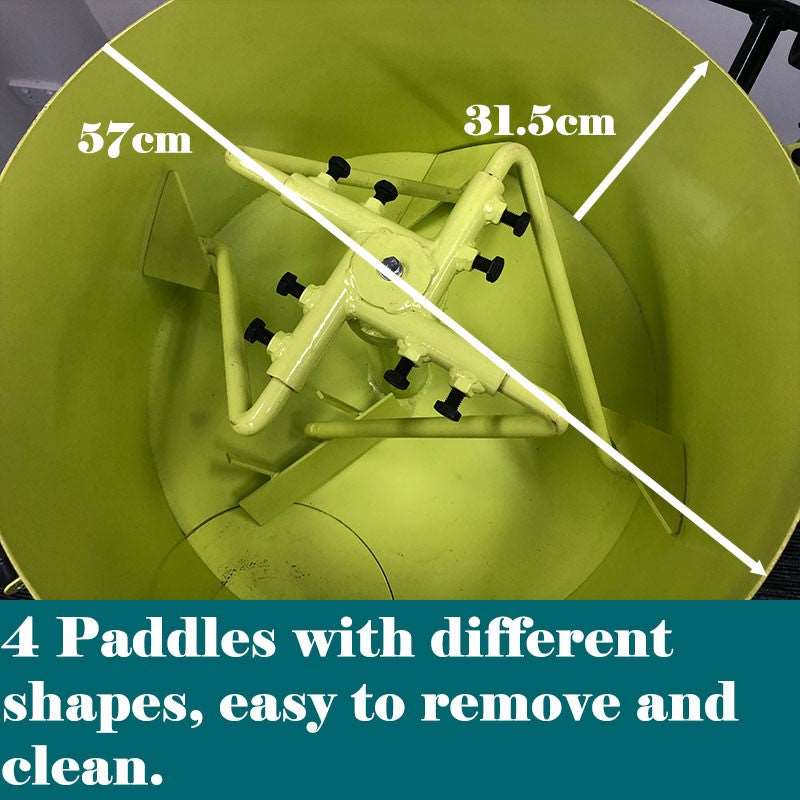

- Four Mixing Blades: Blades positioned at different heights promote thorough and consistent mixing.
- 3mm Steel Pan: Heavy-duty construction designed for regular trade use.
- Cycloidal Reducer: Provides reliable torque transfer to the mixing system.

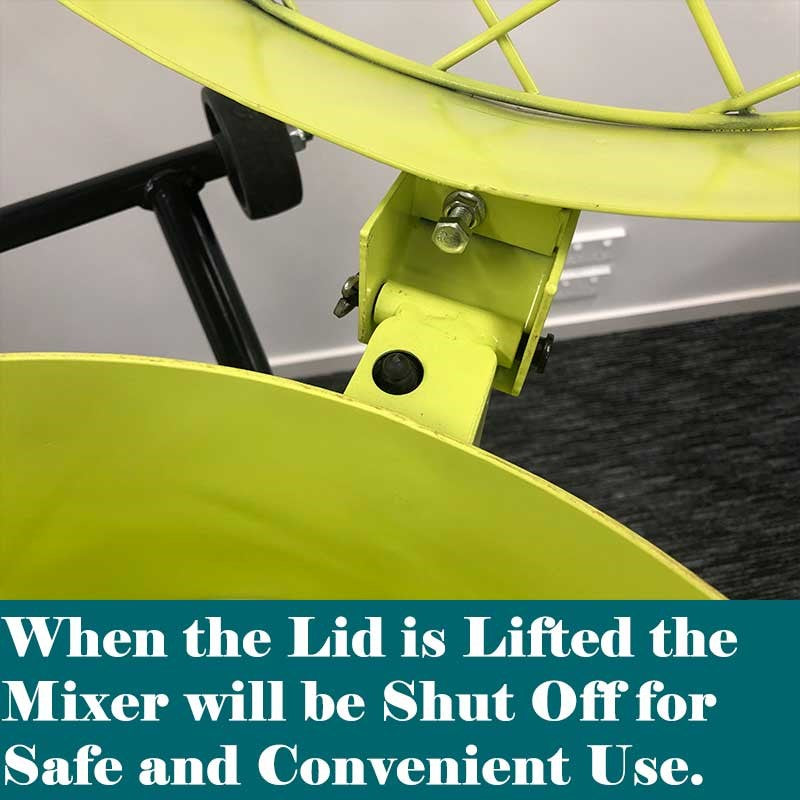

- Safety Cut-Off: Automatically stops operation when the protective grate is opened.
- Integrated Bag Splitter: Helps make loading bagged materials faster and easier.

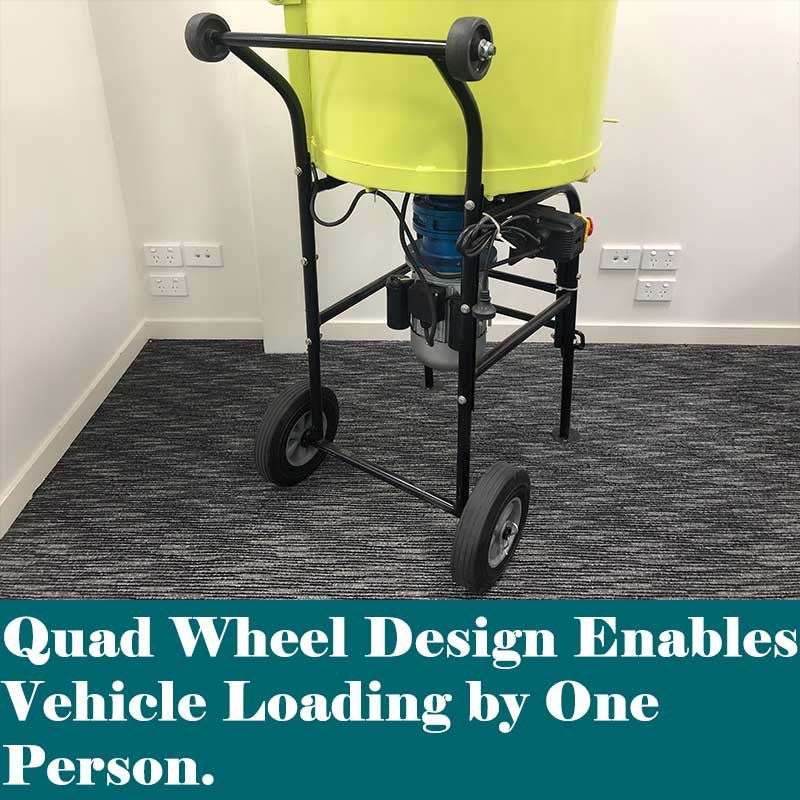

- Quad-Wheel Design: Two large and two smaller wheels assist with job-site movement and vehicle loading.
Need more capacity and power? Consider the BM679C 120L Pan Mortar Mixer with a 2200W motor and larger mixing pan.
You can also compare the full Forestwest Cement & Mortar Mixer range.
Specifications
| Model | BM691 |
| Drum Capacity | 80L |
| Mix Capacity | 53L |
| Motor Power | 1100W |
| Power Supply | Standard Australian 10A plug |
| Mixing Blades | 4 |
| Drum Diameter | 577mm |
| Drum Height | 316mm |
| Drum Thickness | 3mm |
| Gearbox | Cycloidal Reducer |

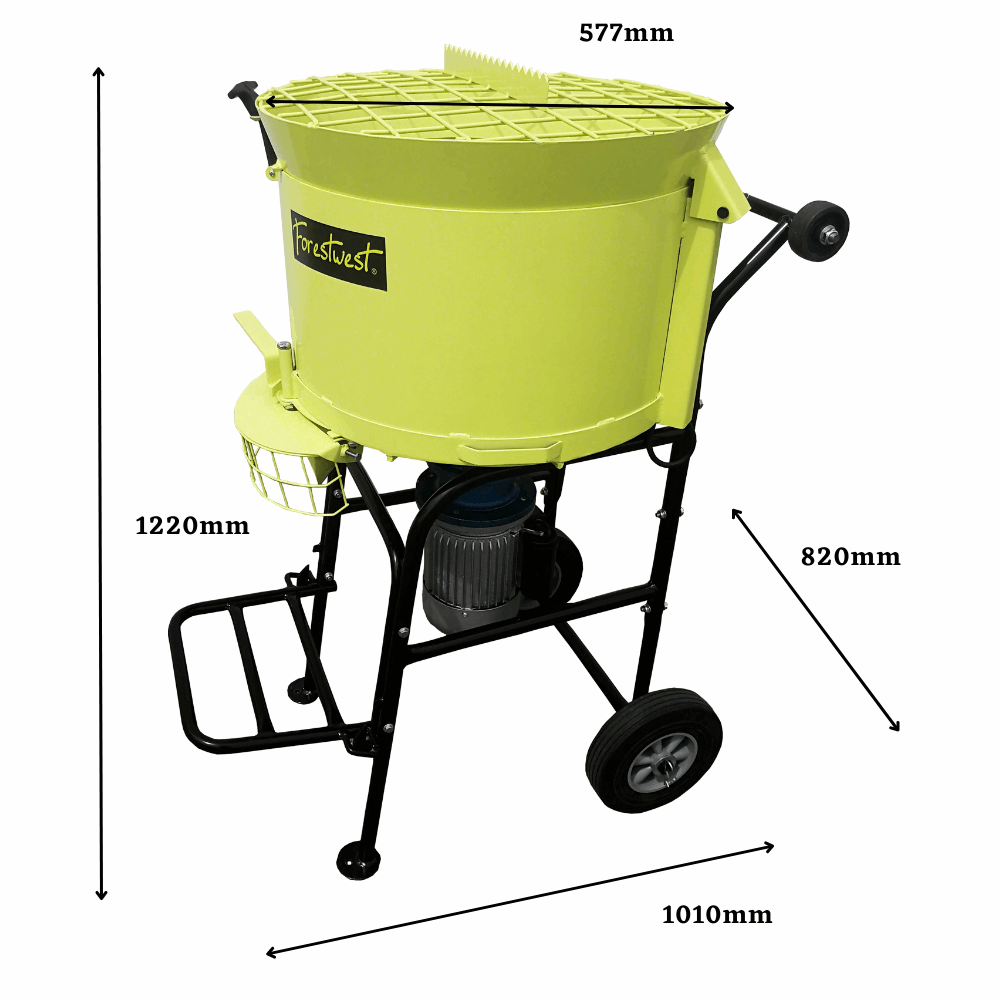

| Overall Size | 1010 × 650 × 1220mm |
| Packing Size | 860 × 630 × 1250mm |
| Net / Gross Weight | 80 / 96kg |
Frequently Asked Questions
1. What materials can the BM691 mix?
It is designed for mortar, screed, cement and a range of similar construction mixing applications.
2. Why choose a pan mixer instead of a conventional drum mixer?
The mixing blades actively move material through the pan, making it better suited to mortar, screed and other mixes that benefit from more intensive blending.
3. Does the BM691 use a standard 10A plug?
Yes. It uses an 1100W electric motor with a standard Australian 10A plug.
4. How many mixing blades does it have?
The BM691 uses four blades positioned at different heights for thorough mixing.
5. BM691 or BM679C?
The BM691 is the more compact 80L option. The BM679C increases capacity to 120L and power to 2200W.
6. Does it have a safety cut-off?
Yes. Opening the protective hopper grate activates the automatic safety cut-off.
7. What warranty does it include?
The BM691 comes with a 12-month Forestwest warranty.
