Precision Cross Sliding Table BF-30 700*180MM Table

Save $100.00
ForestwestSKU: BM30278

Price:
Sale price$899.00 Regular price$999.00

Tax included Shipping calculated at checkout

()

Estimate shipping

Description

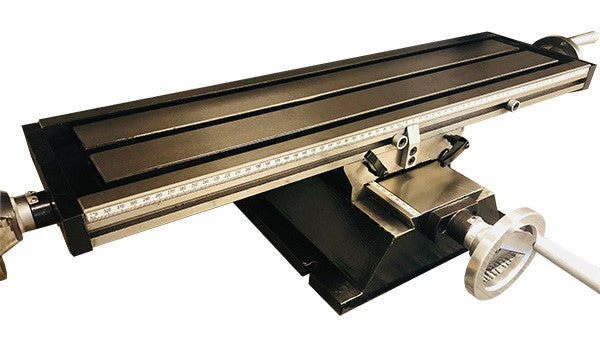

Introducing the Forestwest BM30278 Cross Slide Table, equipped with a 700*180mm table for diverse applications. With a precise 480mm X-axis travel and 175mm Y-axis travel, this precisely machined compound table ensures smooth and accurate movements. The precision model is equipped with a dial-indexed handle featuring 0.05mm graduation.

Tailored for repetitive multi-axis tasks, this table significantly reduces setup time. Its robust construction is ideal for heavy-duty work, ensuring reliability across various applications. While compatible with BF-30 milling head, note that mounting holes require drilling for proper installation. Enhance your workshop's precision and efficiency with the Forestwest BM30278 Cross Slide Table.

BM30278/BF-30 Precision Cross Sliding Table Features:

  • Sturdy build for heavy-duty applications

  • Table dimensions: 700*180mm with 0.05mm graduation

  • Precision in sliding action, with a range of X 480mm * Y 175mm

  • Well-suited for use on milling machines and lathes

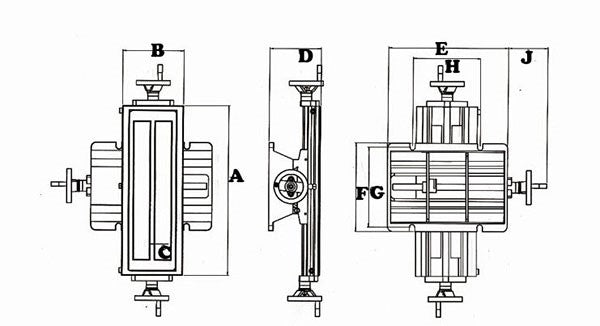

      Specifications:

      Model BM30278/BF-30 Precision Sliding Table
      A 700 mm
      B 180 mm
      C 12 mm
      D 151 mm
      E 355 mm
      F 277 mm
      G 245 mm
      H 220 mm
      J 116 mm
      X-Travel 480 mm
      Y-Travel 175 mm
      Packing Size (LxWxH) 860x460x230mm
      N.W./G.W. 65/70kg
