Precision Cross Sliding Table BF-16 400*120MM Table

ForestwestSKU: BM30273

Price:
Sale price$489.00

Tax included Shipping calculated at checkout

Unlock Exclusive Gifts.

Description

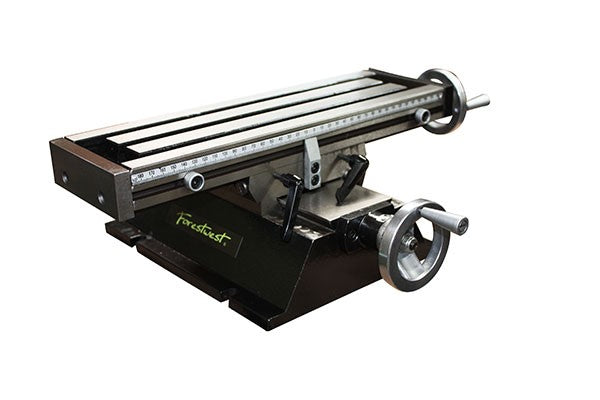

Introducing the Forestwest BM30273 Cross Slide Table, featuring a 400*120mm table for versatile applications. With a precise 220mm X-axis travel and 160mm Y-axis travel, this meticulously machined compound table ensures smooth and accurate movements. The precision model comes with a dial-indexed handle boasting 0.05mm graduation (mounting holes needs drilling).

Tailored for repetitive multi-axis tasks, this table significantly reduces setup time. Its sturdy construction is ideal for heavy-duty work, offering reliability across various applications. It can be used on BF-16 milling head, with the note that mounting holes require drilling for compatibility. Upgrade your workshop efficiency with the Forestwest BM30273 Cross Slide Table.

BM30272/BF-16 Precision Cross Sliding Table Features:

  • Robust construction for heavy-duty tasks

  • Table size: 400*120mm with 0.05mm graduation

  • Precise and smooth sliding action, with a range of X 220mm * Y 160mm

  • Ideal for use on both milling machines and lathes

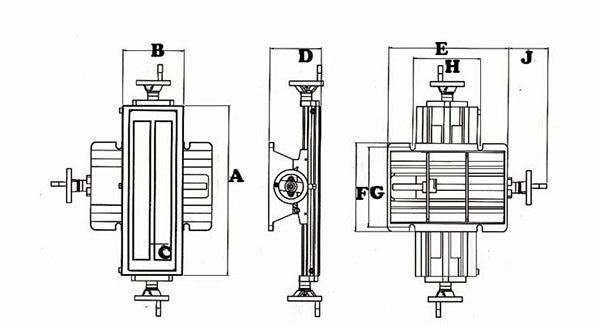

    Specifications:

    Model BM30273/BF-16 Precision Sliding Table
    A 400mm
    B 120mm
    C 10mm
    D 145mm
    E 282mm
    F 222mm
    G 200mm
    H 160mm
    J 110mm
    X-travel 220mm
    Y-travel 160mm
    Packing Size (LxWxH) 490x380x200
    N.W./G.W. 23/27kg
