300*140mm Precision Cross Slide Table

Name: 300*140mm Precision Cross Slide Table
Brand: Forestwest
SKU: BM30272
Price: 219.0 AUD
Availability: InStock
Rating: 5 (1 reviews)

ForestwestSKU: BM30272

1

filler

Share this product

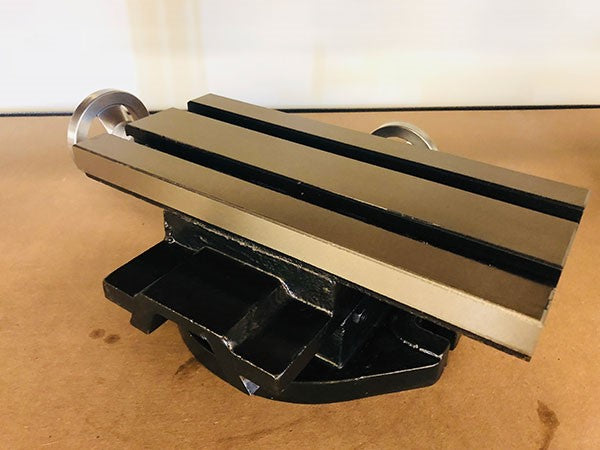

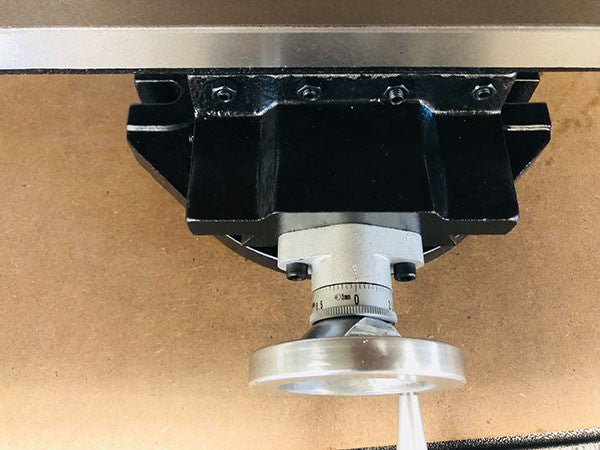

This Forestwest BM30272 Cross Slide Table has a 300*140mm table, with a 180mm travel in X axis and 100mm travel in Y axis. This compound sliding table is well machined, and the travel is smooth and accurate, it enables every vice to slide at two directions. This is a precision model, the dial indexed handle in 0.05mm graduation.

This cross slide table is ideal for repetitive multi axis work, it will highly reduce the set up time. The construction is sturdy and suitable for heavy duty work.

300*140mm Compound Table Features:

Sturdy construction for heavy duty work

Precise and smooth slide action, slide range X 180mm * Y100mm
Table Size: 300*140mm
Accurate sliding, 0.05mm Graduation

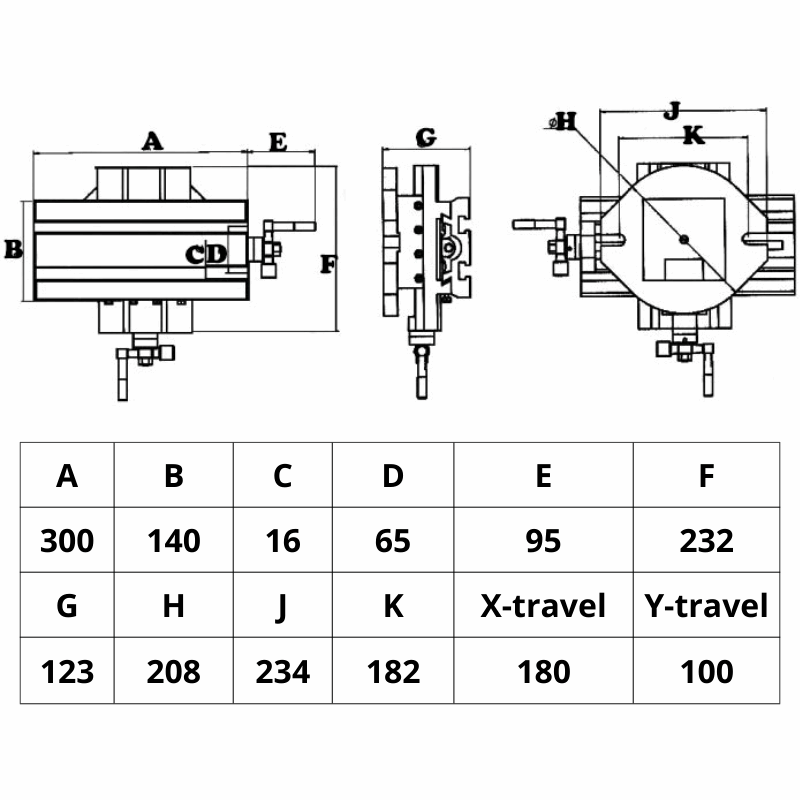

Specifications:

Model	300*140mm Precision Cross Slide Table BM30272
X-travel(mm)	180
Y-travel(mm)	100
Table size (mm)	300*140
N.W./G.W. (kg)	17/18
Packing size (mm)	390300160

Free Store Pick Up: Click N Collect from Melbourne or Perth Stores.
Door to Door Service: Both TNT and Allied Express offer door to door services, remote surcharges may incur for certain areas.
Pickup from TNT depot: Enjoy Cheaper freight by picking up from a nearby depot for products over 30kg. Please check below.

Locate a nearby TNT DEPOT: Click here to view Map of depots.
Checkout: Proceed to checkout and choose "Depot Pickup" as shipping method. Use the Depot address as Shipping Address to get the accurate freight charge to the depot.
Pick up from TNT depot: We will arrange delivery and leave your contact details with TNT for depot collection.

Country

Province

Zip code

Customer Reviews

5.0 Based on 1 Reviews

5 ★

100%

1

4 ★

0%

0

3 ★

0%

0

2 ★

0%

0

1 ★

0%

0

Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

A

09/08/2020

Anonymous

Australia

300*140 Precision Cross Slide

Have not used it yet but tested slides with dial indicator very accurate.

300*140mm Precision Cross Slide Table

Description

300*140mm Compound Table Features:

Sturdy construction for heavy duty work

Precise and smooth slide action, slide range X 180mm * Y100mm

Table Size: 300*140mm

Accurate sliding, 0.05mm Graduation

Specifications:

300*140mm Precision Cross Slide Table BM30272
