Description

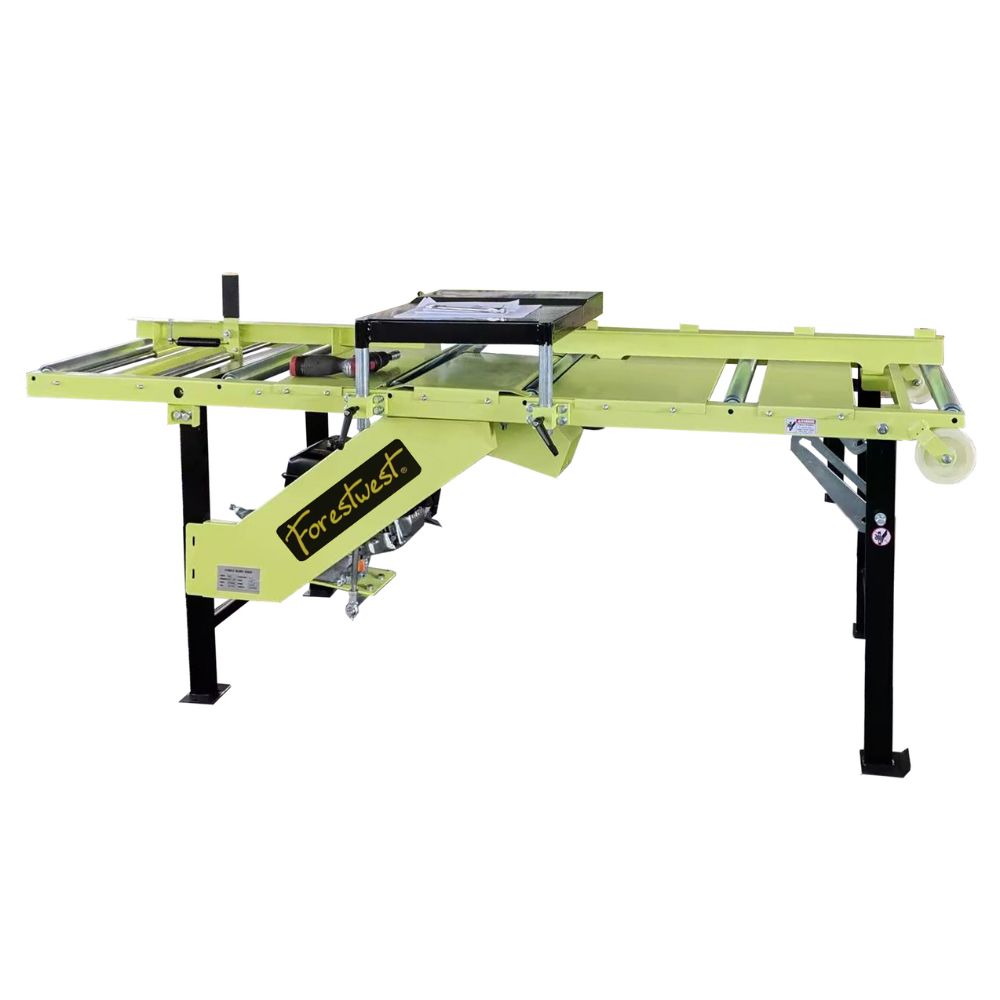

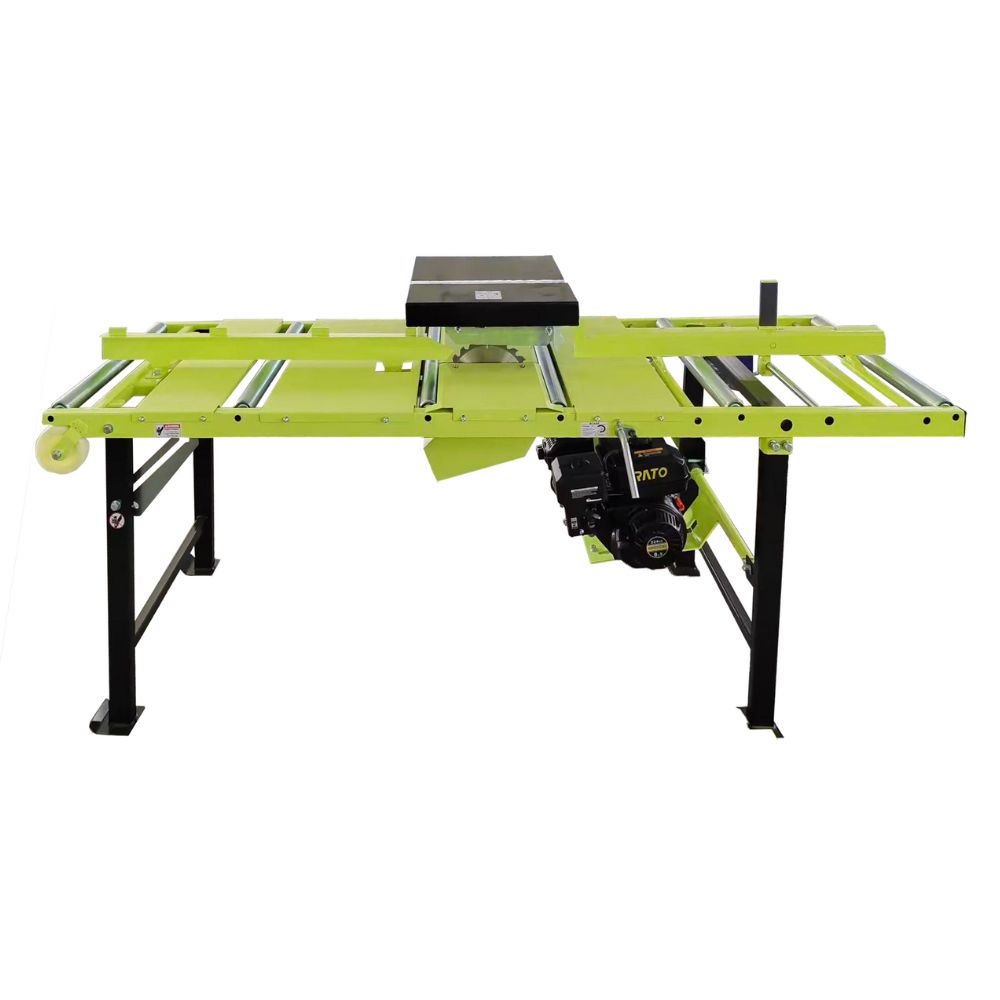

Boost your production by transforming flinches, sideboards, and slabs into precise, square-edged boards with Forestwest board edger. Designed for easy operation and built to last, Forestwest's cost-effective single-blade edger come equipped with durable carbide-tipped blades. Whether you’re looking to enhance an existing wood processing setup or expand your sawing business, Forestwest single blade board edgers ensure a smooth path to finished timber. They seamlessly integrate into current operations and offer a range of upgrade options to suit your needs.
Forestwest 12" Single Blade Edger Features:
-
Pull Handle: This single blade edger easily adjusts to any board width in 2" increments up to 12" wide
-
In-Feed Scale: scale on the in-feed allows operator to measure and edge boards accurately.
-

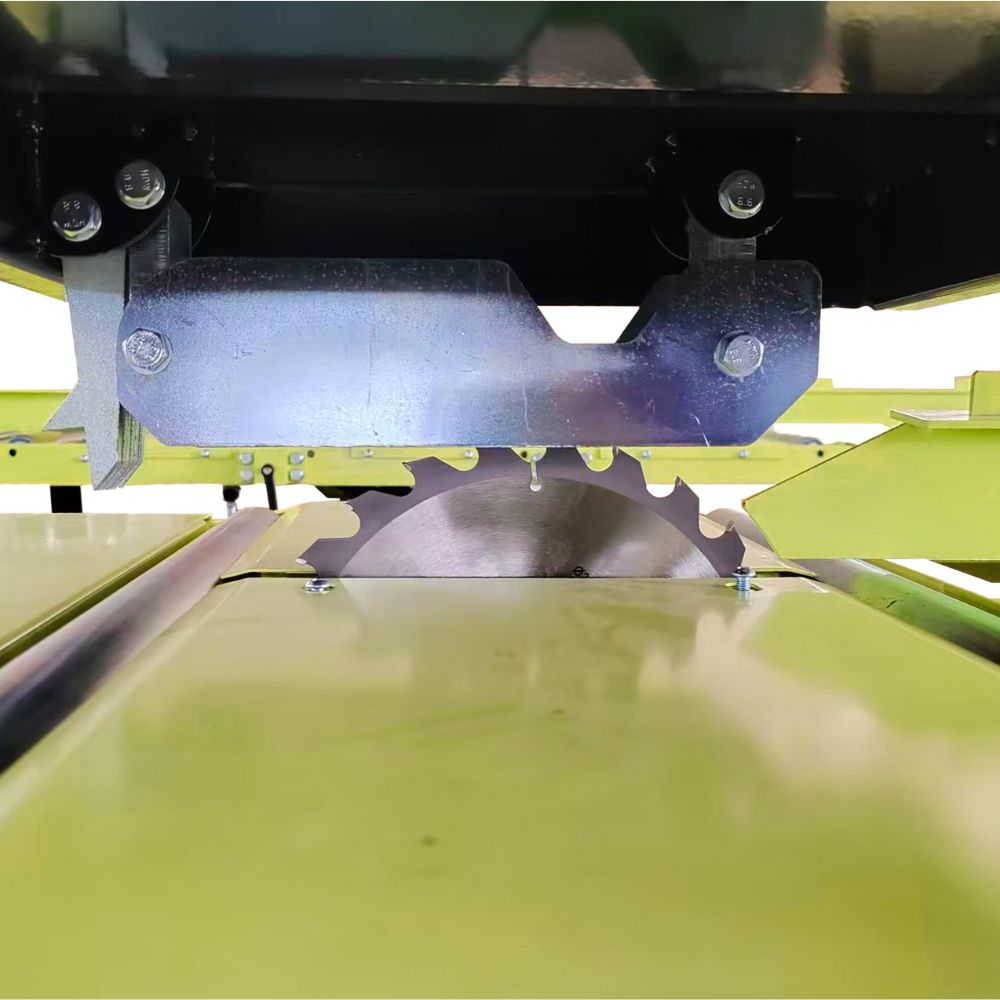

Carbide-Tipped Blade: The 10" carbide allow saw blade removes one side of the board with each pass.
-
Anti-Kickback Fingers: The anti-kickback fingers protect the operator by preventing boards from being kicked out of the edger.
-

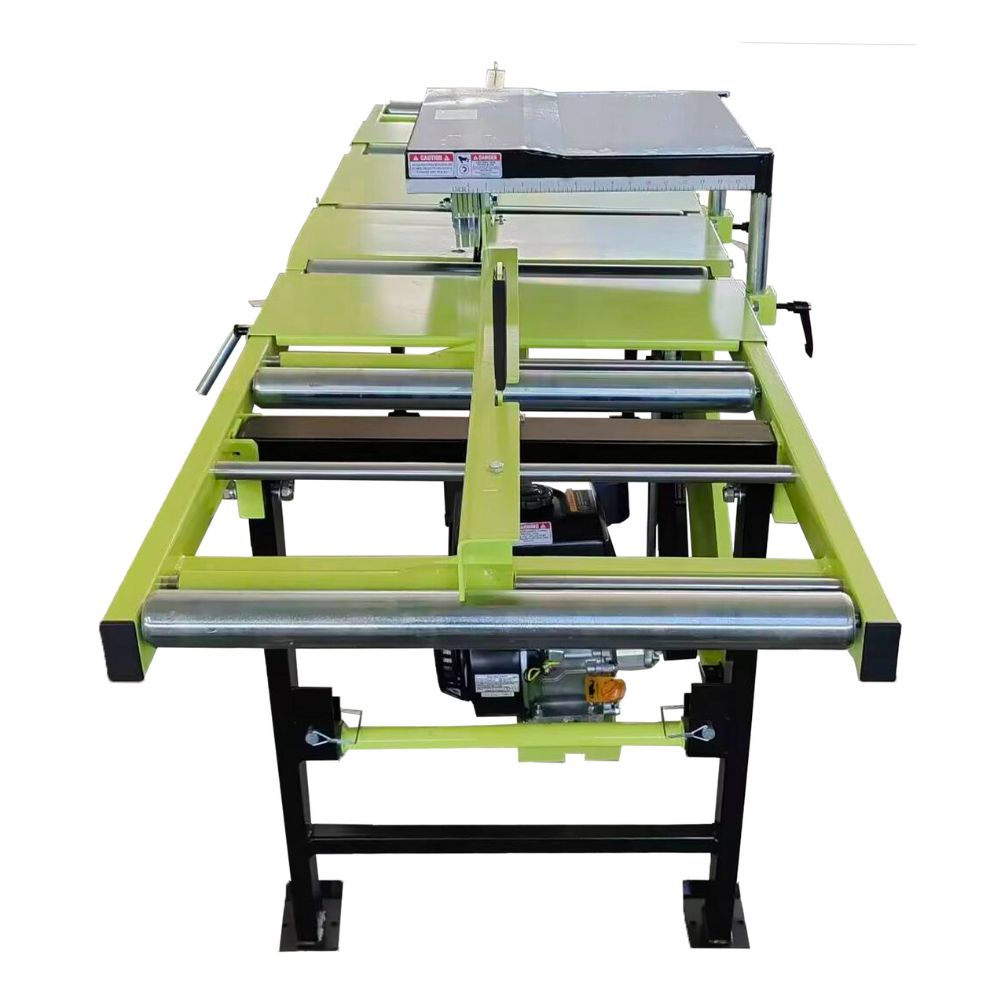

Heavy Duty Rollers: Multiple table rollers help remove material through the lumber edger.
-

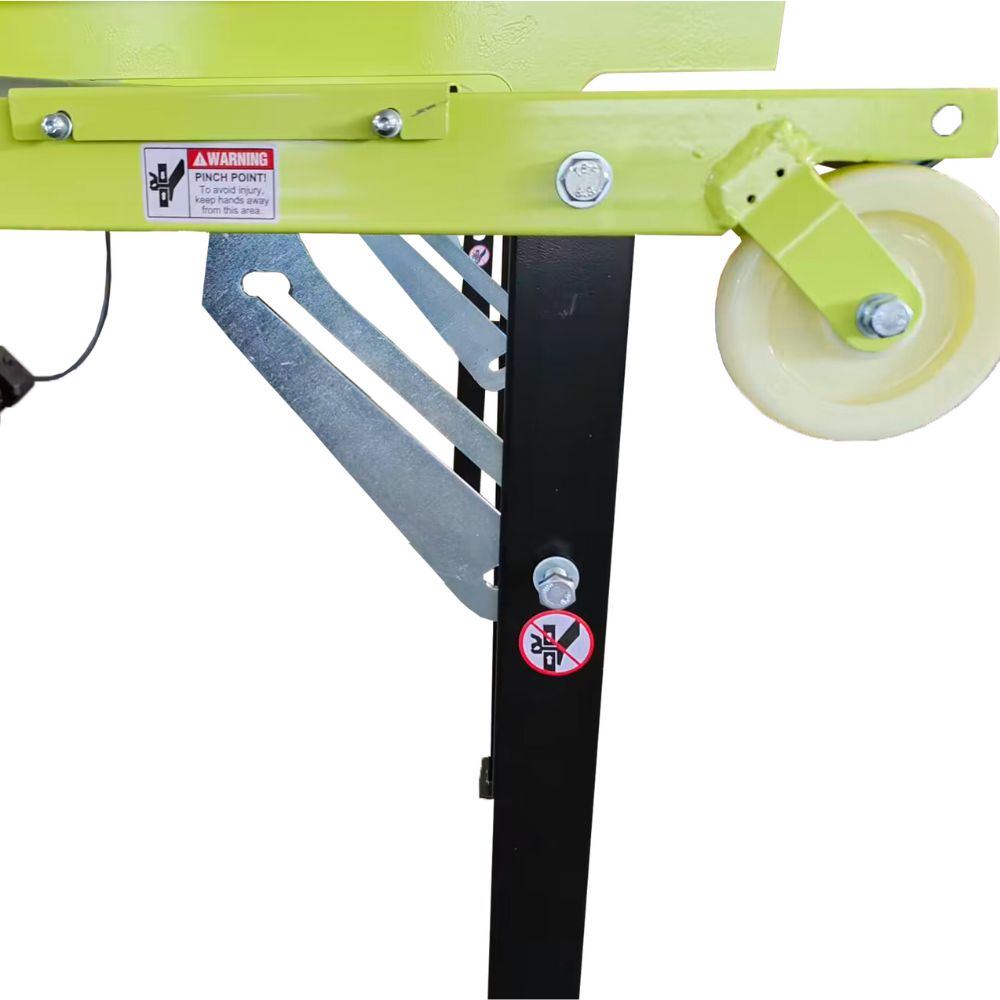

Easy to Store & Transport: The engine is removable, the legs of the discharge table can be folded flat for easy storage and transportation.
Specifications:
| Model | Forestwest Single Blade Edger BM11150 |
|---|---|
| Engine Power | 8.5hp RATO petrol engine |
| Cutting Method | Drum Cut |
| Max. Cutting Width | 2"-12" (50-305mm) |
| Max. Material Thickness | 0.25"-2.25" (6.5-57mm) |
| Blade Speed |
3750rpm |
| Chipping Diameter | 3" (76.2mm) |
| Blade Type |
10" (250mm) Carbide Alloy Saw Blade |
| Blade Size |
250x1.5mm 24 Teeth |

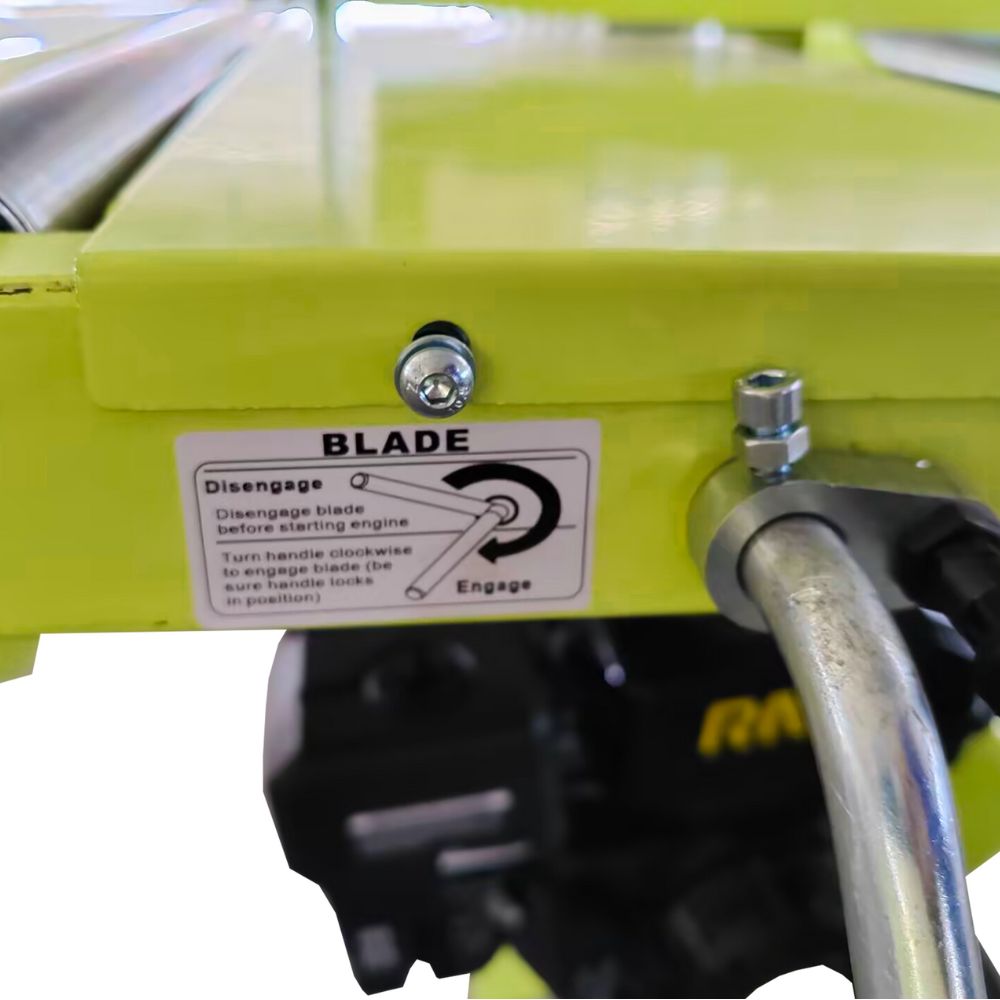

| Blade Adjustment Method |
Manual Lever |
| Feed System |
Manual Push Feed Rate - Variable |
| Overall Size (LxWxH) | 2228x878x1008mm |
| Packing Size (LxWxH) | 2330x830x570mm |
| N.W./G.W. | 125/172kg |
